AUXILIARY VALVE WITH LINKAGE (FOURTH FUNCTION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T71570	1	Grip	-
2	-	1	Part 2	(SUB AT211021)
3	AT140287	1	Boot	-
4	R11151	1	Lock Nut	-
5	19M8499	1	Cap Screw	M10 X 60
6	24M7096	3	Washer	10.500 X 18 X 1.600 mm
7	-	1	Part 7	(SUB AT211021)(LINKAGE LEVER)
8	-	1	Part 8	-
9	14H732	1	Nut	3/8"
10	M80373	1	Yoke	-
11	11M7081	1	Cotter Pin	2.500 X 20 mm
12	R65563	1	Pin Fastener	-
13	21H1352	2	Screw	1/4" X 3/8"
14	T177847	2	Plate	(SUB FOR AT223968, THIS APPLICATION)
15	-	2	Part 15	(SUB AT280406)(WIPER)
16	-	2	Part 16	(SUB AT280406)(O-RING)
17	-	1	Part 17	(SUB AT221852)
18	14H865	2	Nut	1/2"
19	14H807	4	Nut	7/16"
20	-	1	Part 20	(SUB AT221852)
21	T118685	1	O-Ring	-
22	T81539	1	Spring	-
23	T81538	1	Poppet	-
24	-	1	Part 24	(SUB AT220757 OR AT224727)
25	T81540	2	Retainer	-
26	T187882	1	Compression Spring	(SUB FOR T155354)
27	T81541	1	Screw	-
28	T118808	1	Cap	-
29	19H3554	2	Screw	1/4" X 0.880", (SUB FOR T65036)
30	T126301	2	Seal	-
31	AT83174	2	Fitting Plug	-
31	AT165736	1	Pressure Relief Valve	(NOT ILLUSTRATED) (CIRCUIT RELIEFS) (MUST BE ORDERED SEPARATELY) (3500 PSI, 1 PGM)
31	AT171403	1	Pressure Relief Valve	(NOT ILLUSTRATED) (CIRCUIT RELIEFS) (MUST BE ORDERED SEPARATELY) (2150 PSI, 1 GPM)
32	19M7662	2	Cap Screw	M10 X 30
33	14M7517	1	Lock Nut	M10, (NOT ILLUSTRATED)
34	14H882	1	Nut	5/16", (NOT ILLUSTRATED)
35	AT48548	1	Ball Joint	-
36	-	1	Part 38	(SUB AT211021)
37	AT221256	1	Control	-
38	AT221852	1	Tie Rod Assembly	-
39	AT224727	1	Spool Valve	(SUB FOR AT220757)
40	AT220860	1	Hyd Actuated Control Valve	(SPECIAL EQUIPMENT FIELD)
40	AT224728	1	Spool Valve	(INCLUDES AT222384)(WITH FLOAT)
40	AT222384	1	Spring Assembly	(NOT ILLUSTRATED) (SHOWN ON HYDRAULIC CONTROL VALVE PAGE)

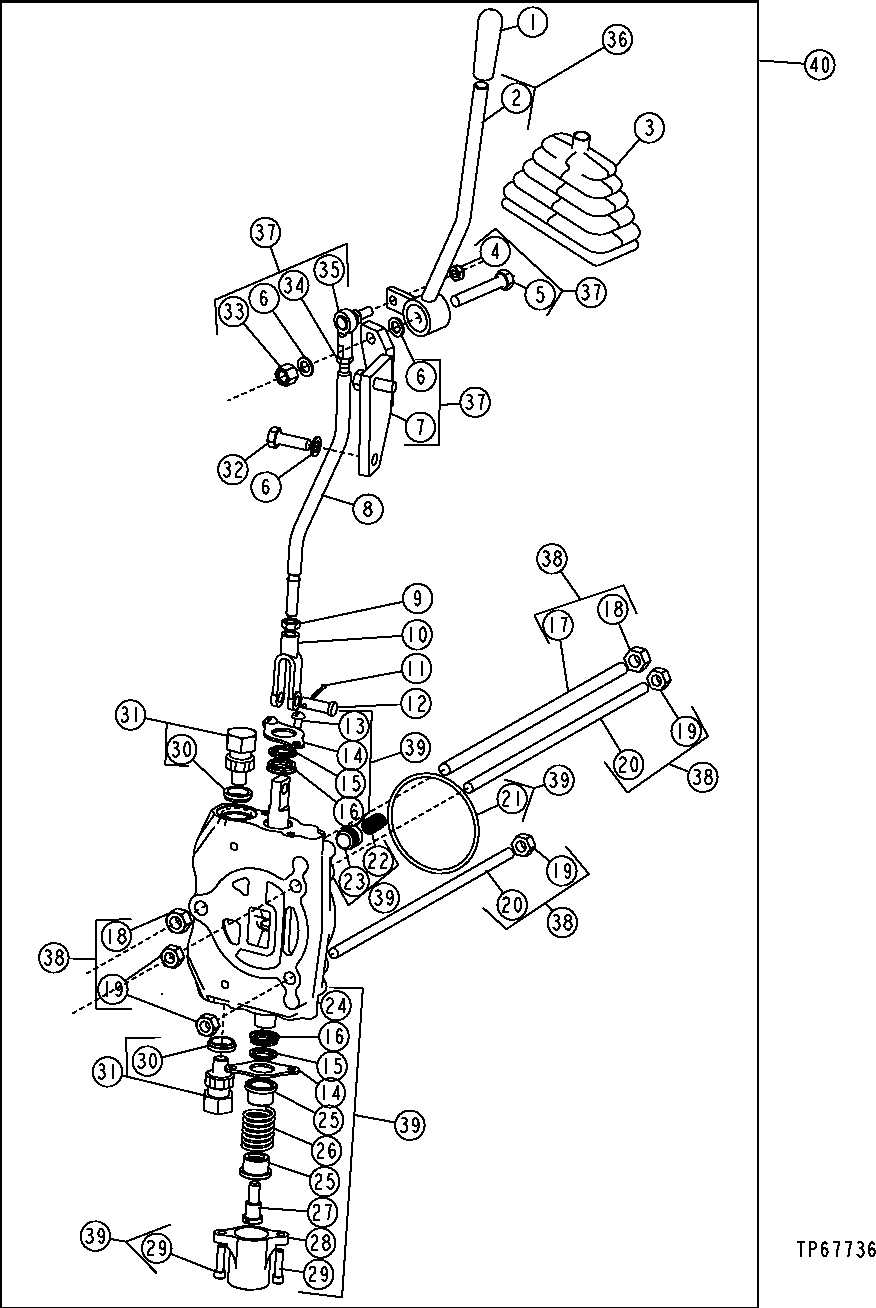

AUXILIARY VALVE WITH LINKAGE (FOURTH FUNCTION)
