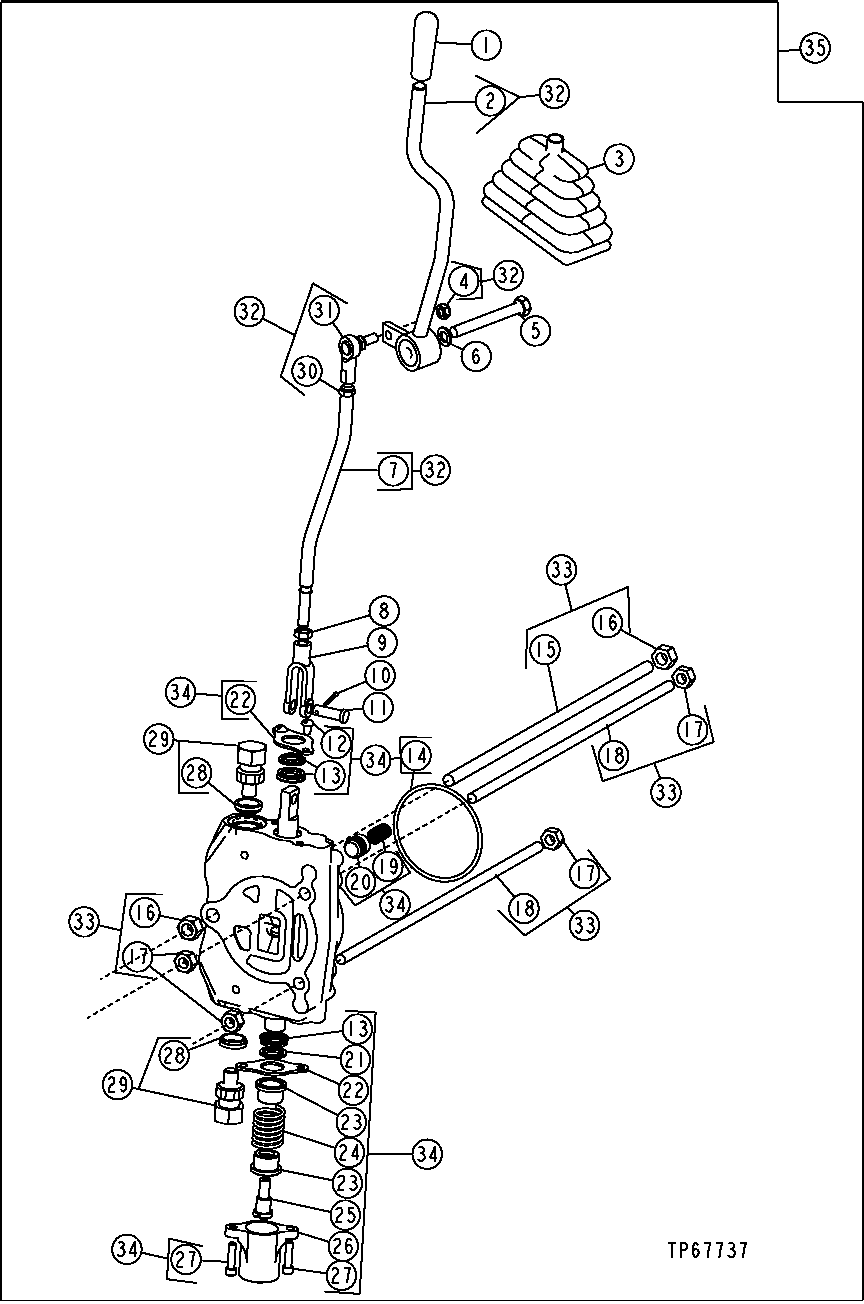

AUXILIARY VALVE WITH LINKAGE (FIFTH FUNCTION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T71570	1	Grip	-
2	-	1	Part 2	(SUB AT221310)
3	AT140287	1	Boot	-
4	R11151	1	Lock Nut	-
5	19M8081	1	Cap Screw	M10 X 80
6	24M7096	1	Washer	10.500 X 18 X 1.600 mm
7	-	1	Part 7	(SUB AT221310)
8	14H774	1	Nut	3/8", SUB FOR 14H732
9	M80373	1	Yoke	-
10	11M7081	1	Cotter Pin	2.500 X 20 mm
11	R65563	1	Pin Fastener	-
12	21H1352	2	Screw	1/4" X 3/8"
13	-	3	Part 13	(SUB AT280406)(O-RING)
14	T118685	1	O-Ring	-
15	-	1	Part 15	(SUB AT221853)
16	14H865	2	Nut	1/2"
17	14H807	4	Nut	7/16"
18	-	2	Part 18	(SUB AT221853)
19	T81539	1	Spring	-
20	T81538	1	Poppet	-
21	-	1	Part 21	(SUB AT280406)(WIPER)
22	AT229368	1	Plate	(UPPER)
22	T177847	2	Plate	(LOWER)
23	T81540	2	Retainer	-
24	T187882	1	Compression Spring	(SUB FOR T155354)
25	T81541	1	Screw	-
26	T118808	1	Cap	-
27	19H3554	2	Screw	1/4" X 0.880", (SUB FOR T65036)
28	T126301	1	Seal	-
29	AT165736	1	Pressure Relief Valve	(NOT ILLUSTRATED) (CIRCUIT RELIEFS) (MUST BE ORDERED SEPARATELY) (3500 PSI, 1 GPM)
29	AT171403	1	Pressure Relief Valve	(NOT ILLUSTRATED) (CIRCUIT RELIEFS) (MUST BE ORDERED SEPARATELY) (2150 PSI, 1 GPM)
29	AT83174	2	Fitting Plug	-
30	14H882	1	Nut	5/16"
31	AT48548	1	Ball Joint	-
32	AT221310	1	Lever	-
33	AT221853	1	Tie Rod Assembly	-
34	AT224727	1	Spool Valve	(SUB FOR AT220757)
35	AT220863	1	Hyd Actuated Control Valve	(SPECIAL EQUIPMENT FIELD)
35	AT224728	1	Spool Valve	(INCLUDES AT222384)(WITH FLOAT)
35	AT222384	1	Spring Assembly	(NOT ILLUSTRATED) (SHOWN ON HYDRAULIC CONTROL VALVE PAGE)

AUXILIARY VALVE WITH LINKAGE (FIFTH FUNCTION)
