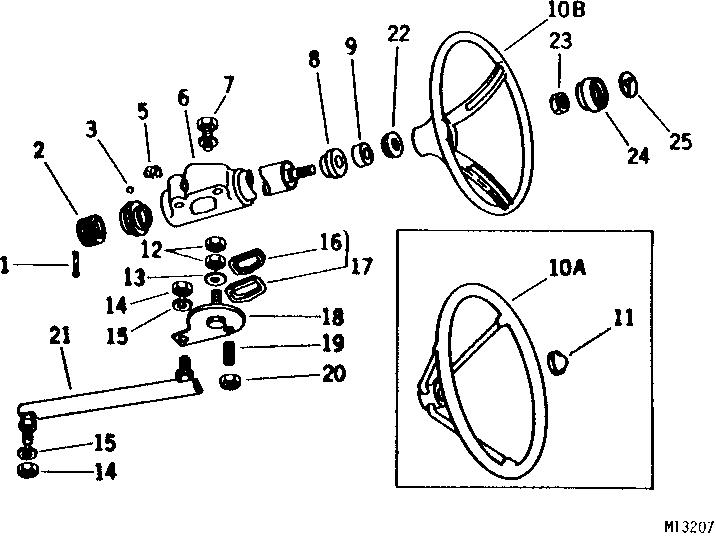

STEERING WHEEL, STEERING GEAR, AND DRAG LINK [A11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7012	1	Cotter Pin	(A) 3.200 X 16 MM
2	M41918	1	FITTING	(A)
3	R26552	16	Ball	(A)
4	AM31924	1	KIT	(A) BEARING (INCLUDES BEARINGS, RETAINERS AND CUPS)
5	JD7846	1	Lubrication Fitting	(A)
6	AM32413	1	STEERING GEAR	(INCLUDES PARTS MARKED WITH AN (A))
7	19H1731	3	Cap Screw	3/8" X 1"
7	12H310	3	Lock Washer	3/8"
8	M43743	1	BEARING	(A)
9	M43744	1	Bushing	(A)
11	M44219	1	NUT	-
12	14H866	2	Nut	(A) 5/8"
13	24H1658	1	Washer	(A) 21/32" X 1" X 0.060"
14	14H856	2	Nut	1/2"
15	12H301	2	Lock Washer	1/2"
16	M41916	1	RETAINER	(A) (SUB FOR AM30980)
17	M41917	1	SEAL	(A) (SUB FOR AM30980)
18	AM30878	1	LEVER	(A) (INCLUDES CROSS BOLT) (NO LONGER AVAILABLE)
19	M42260	1	STUD	(A)
20	14H856	1	Nut	(A) 1/2"
21	AM31132	1	BALL JOINT	-
22	M40154	1	GROMMET	-
23	14H866	1	Nut	5/8"
24	M46708	1	CAP	-
25	M46707	1	Label	-
10A	AM32412	1	STEERING WHEEL	(NO LONGER AVAILABLE)
10B	AM34368	1	STEERING WHEEL	-

STEERING WHEEL, STEERING GEAR, AND DRAG LINK [A11]
