Открытый узел

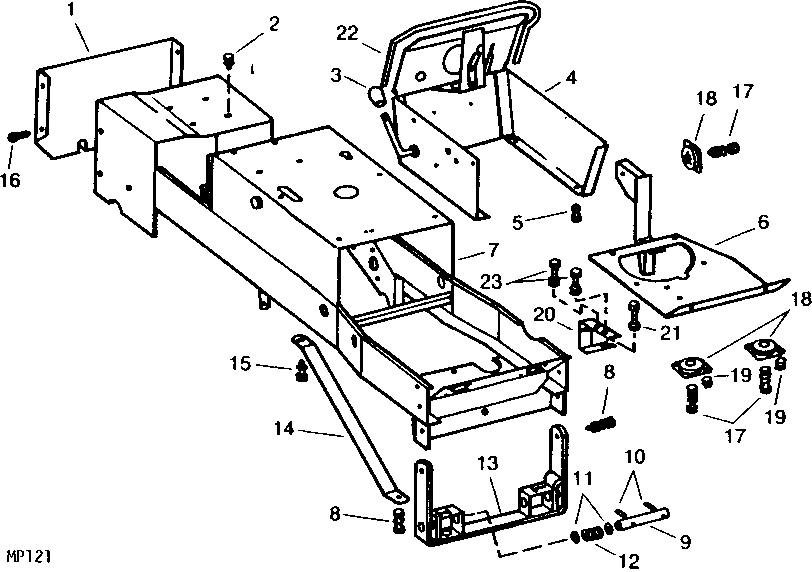

FRAME, PEDESTAL, AND ENGINE BASE [A06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M43703	1	HITCH PLATE	(N)
2	19H1936	4	Cap Screw	3/8" X 3/4"
2	12H304	4	Lock Washer	3/8"
3	M41598	1	KNOB	-
4	AM32416	1	PANEL	(SUB AM34822)
4	AM39065	1	PANEL	(SUB FOR AM34822)
5	37H108	4	SCREW	3/8" X 5/8"
6	AM32406	1	BASE	(N)
7	AM32403	1	FRAME	(N)
7	AM34527	1	FRAME	(N)
7	AM34826	1	FRAME	(N)
8	19H1815	4	Cap Screw	1/2" X 1-1/4"
8	12H301	4	Lock Washer	1/2"
8	14H809	4	Nut	1/2"
9	M43697	2	PIN FASTENER	(N)
10	34H286	4	Spring Pin	3/16" X 1-1/2"
11	24H1658	4	Washer	21/32" X 1" X 0.060"
12	M91079	2	Compression Spring	(SUB FOR R26079, THIS APPLICATION)
13	AM30837	1	SUPPORT	(N)
14	M41651	2	BRACE	(N)
15	12H301	2	Lock Washer	1/2"
15	19H1815	2	Cap Screw	1/2" X 1-1/4"
16	37H110	8	SCREW	3/8" X 7/8"
17	19H1765	3	Cap Screw	3/8" X 1-3/4"
17	24H1314	3	Washer	13/32" X 1-3/4" X 7/64"
17	12H304	3	Lock Washer	3/8"
17	14H1076	3	Nut	3/8"
18	M46201	3	ISOLATOR	(SUB FOR AM32420)
19	12H246	6	LOCK WASHER	0.190"
19	14H778	6	Nut	0.190"
19	21H1301	6	SCREW	0.190" X 1/2"
20	AM32405	1	PLATE	-
21	19H3134	1	CAP SCREW	(N) 1/2" X 1-3/4"
21	12H292	2	Lock Washer	1/2"
21	14H856	1	Nut	1/2"
22	M44391	1	ISOLATOR	(3.048 M) 10 FT.
23	19H1900	2	Cap Screw	5/16" X 3/4"
23	12H303	2	Lock Washer	5/16"

FRAME, PEDESTAL, AND ENGINE BASE [A06]

Нет текстового описания
