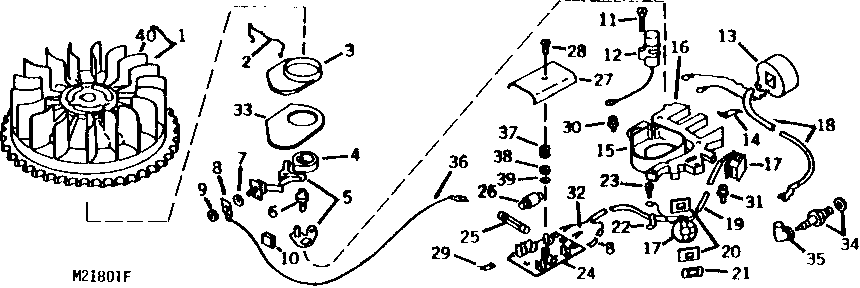

FLYWHEEL, MAGNETO RECTIFIER, ALTERNATOR AND SPARK PLUG [A21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM30943	1	FLYWHEEL	INCLUDES RING GEAR, MAGNETO AND FAN
2	M41867	1	SPRING	-
3	M41866	1	COVER	(SUB M81576)
4	M41868	1	CAM	-
5	AM30947	1	CONTACT	-
6	-	1	Part 6	(A)
7	-	1	Part 7	(A)
8	-	2	Part 8	(A) (INCLUDED WITH AM116348)
9	14H605	1	Nut	0.164"
10	-	1	Part 10	(A)
11	21H1315	1	Screw	0.164" X 3/4"
12	AM30949	1	CAPACITOR	-
13	AM30950	1	ELECTRICAL COIL	(INCLUDES LEAD WIRE AM30953)
14	M41872	1	SPRING	-
15	AM30942	1	PLATE	(N) (INCLUDES GENERATOR COILS AND LEADS, CORE AND PLATE, RECTIFIER PLATE AND FUSE)
16	AM30951	1	PLATE	(N)
17	AM33355	1	WIRING LEAD	(SUB FOR AM30952)
18	AM30953	1	WIRING LEAD	(MAKE FROM R32006 AND R32007)
19	M41873	1	SLEEVE	(N)
20	M41874	2	SHIELD	-
21	M41875	2	CLIP	-
22	M41876	1	CLIP	(N)
23	37H25	1	SCREW	0.112" X 1/4"
24	-	1	Part 24	(ORDER AM116348) (SUB FOR AM30944)
25	AM30945	1	Fuse	(AGC6)
26	AM30946	1	RECTIFIER	-
27	M41813	1	COVER	-
28	21H1179	1	SCREW	1/8" X 3/8"
29	M41924	1	TERMINAL	(N)
30	19H1948	2	Cap Screw	1/4" X 3/4"
30	12H302	2	Lock Washer	1/4"
30	24H1286	2	Washer	9/32" X 1/2" X 1/16"
31	19H1791	1	Cap Screw	1/4" X 1-1/4"
31	12H302	2	Lock Washer	1/4"
31	24H1286	1	Washer	9/32" X 1/2" X 1/16"
32	M41923	1	SOCKET OUTLET	(N)
33	M47296	1	GASKET	(SUB FOR M43784)
34	AP19170	1	SPARK PLUG	(CHAMPION J-8)
34	AF2180R	1	SPARK PLUG	(N) (AC TYPE 45-M)
35	M41833	1	Cover	-
36	AM30930	1	WIRE	-
37	M41812	1	NUT	(N)
38	14H602	1	Nut	1/8"
39	12H233	1	Lock Washer	1/8"
40	M80354	1	FAN	-
..	AM118264	1	KIT	POINT REPAIR (INCLUDES PARTS MARKED (A))
..	AM116348	1	PLATE	DIODE MODULE

FLYWHEEL, MAGNETO RECTIFIER, ALTERNATOR AND SPARK PLUG [A21]

Нет текстового описания
