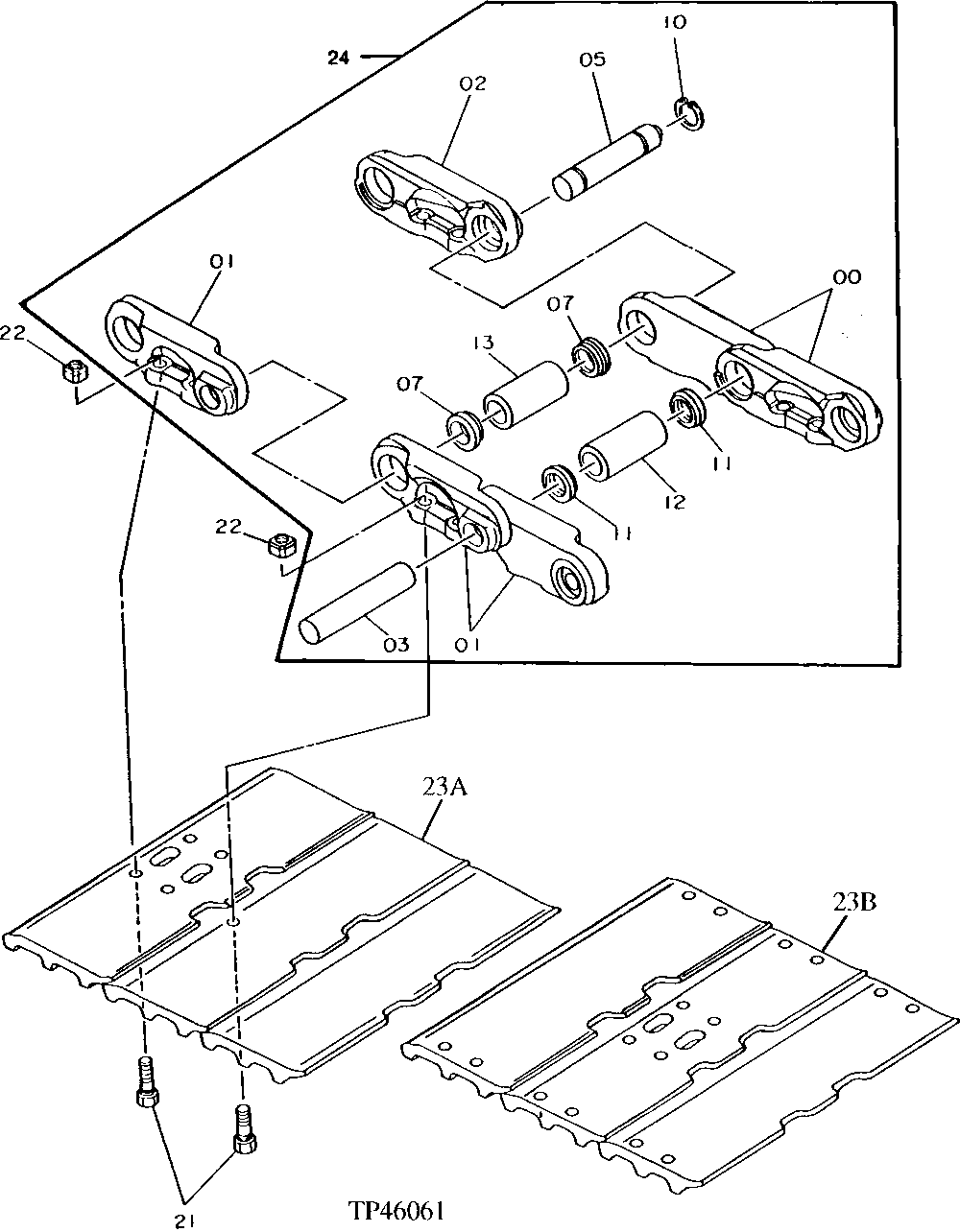

REPLACEMENT TRACK LINK AND TRACK SHOE [01A21]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	1015394	36	STRUTTED LINK-LH	(SUB FOR AT134373) (SUB FOR TH110357, ALONG WITH 1015395, (2) 4283930 AND 4262582)
1	1015395	37	STRUTTED LINK-RH	(SUB FOR AT134374) (SUB FOR TH110358, ALONG WITH (2) 4283930 AND 4262582)
2	-	1	Part 3	( TH110495 NO LONGER AVAILABLE) (SUB 4262581, ALONG WITH 4263097, (2) 4262585, 4262583 AND 1015395)
3	4156583	36	PIN	(K) (SUB FOR TH106074)
5	4263097	1	MASTER TRACK PIN	(K) (SUB FOR AT134376) (SUB FOR 4188842 , ALONG WITH (2) 4262585)
7	4262585	2	BUSHING	(K) (SUB FOR AT134377) (SUB FOR TH105985, ALONG WITH 4262583)
10	4188841	1	SNAP RING	(K) (SUB FOR TH110493)
11	4283930	72	SEAL	(K) (SUB FOR AT167074)
12	4262582	36	BUSHING	(K) (SUB FOR AT134379) (SUB FOR TH106083, ALONG WITH (2) 4283930)
13	4262583	1	BUSHING	(K) (SUB FOR AT134380) (SUB FOR TH106073, ALONG WITH (2) 4262585)
21	AT134381	148	BOLT	(SUB FOR TH110471, ALONG WITH 4262587)
22	4114673	148	NUT	(SUB FOR TH106002) (USE WITH AT134381 BOLT)
22	4262587	148	Nut	(SUB FOR AT134382) (USE WITH AT134381 BOLT)
24	9096710	2	TRACK CHAIN W/O SHOES	(SUB FOR TH110964) (SUB FOR AT134372)
23A	-	37	Part 14	(SUB FOR TH110385) (SUB AT170012) (450MM - 18 INCHES) ( AT134383 NO LONGER AVAILABLE)
23A	2030532	37	OPEN CENTER 3 BAR SHOE	(SUB FOR TH106709) (SUB FOR AT134385) (600MM - 24 INCHES)
23B	2037593	37	OPEN CENTER 3 BAR SHOE	(SUB FOR AT134383) (SUB FOR AT170012) (450MM - 18 INCHES)
