OIL COOLER LINES AND HOSES [01J15]

OIL COOLER LINES AND HOSES [01J15]

OIL COOLER LINES AND HOSES [01J15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

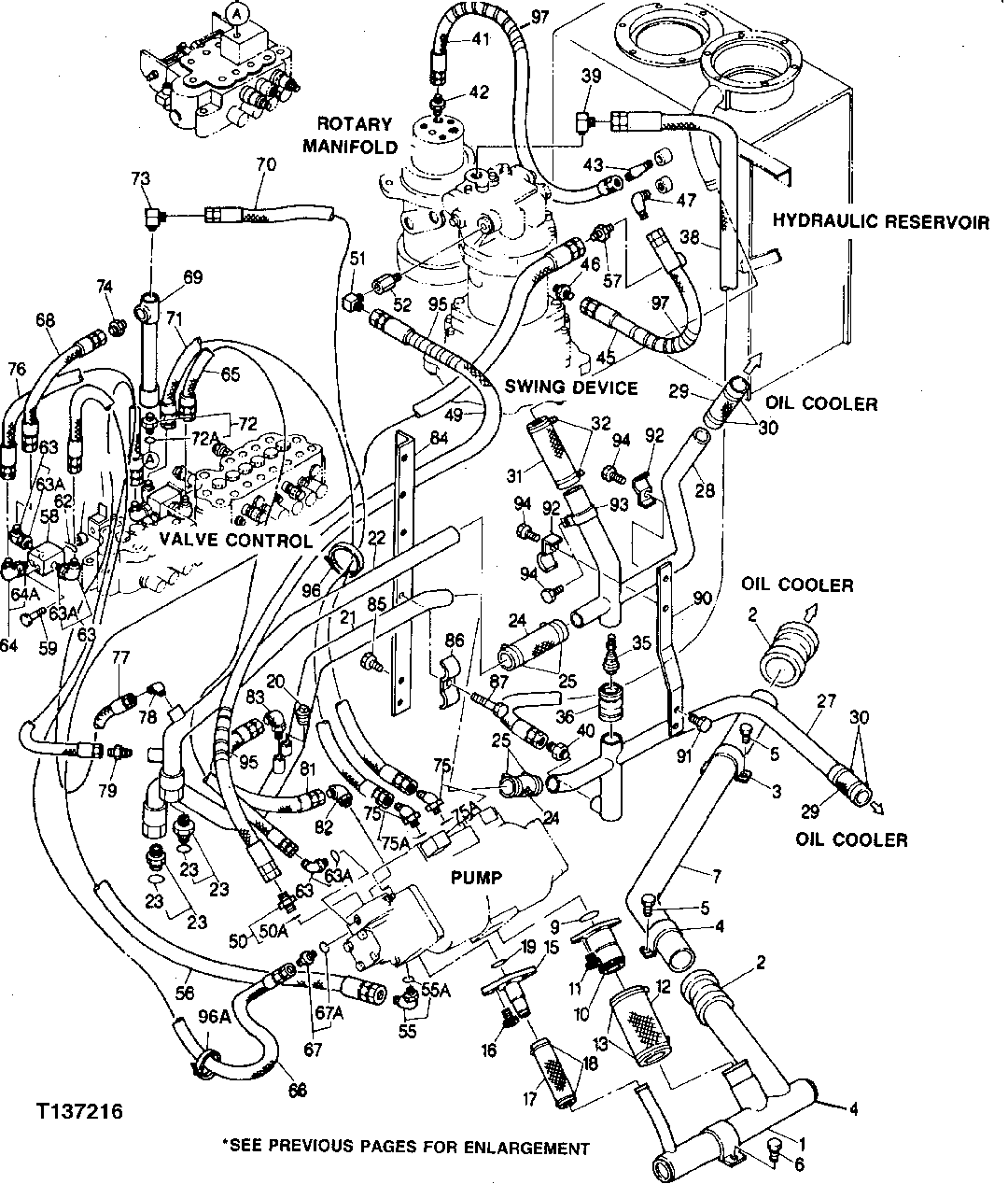

OIL COOLER LINES AND HOSES [01J15]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	7017116	1	LINE	(SUB FOR TH106197)
2	4067833	2	Coupling	(SUB FOR TH101934)
2	4196261	1	Seal	(SUB FOR TH106968)
3	4053865	1	Clamp	(SUB FOR TH103646)
4	4170694	2	CLAMP	(SUB FOR TH106466)
5	19M7938	3	Cap Screw	M10 X 20
6	19M7402	1	Cap Screw	M10 X 25
7	3035837	1	LINE	(SUB FOR TH105927)
9	TH105683	1	O-Ring	-
10	9722274	1	LINE	(SUB FOR TH106283)
11	19M8448	4	Screw	(SUB FOR TH101907)
12	4053959	1	HOSE	(SUB FOR TH105948)
13	TY22472	2	Clamp	(SUB FOR AT145651 OR AR21999 OR TH101728)
15	9722275	1	LINE	(SUB FOR TH106284)
16	19M8447	4	Screw	(SUB FOR TH100941)
17	-	1	Part 16	(SUB FOR TH106008) ( 4120248 NO LONGER AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 150 MM LENGTH)
18	TY22467	2	Clamp	(SUB FOR TH101909 OR AR21839, THIS APPLICATION) (SUB FOR AT145650)
19	A811030	1	O-Ring	(SUB FOR TH101300)
20	94-2024	1	Fitting Plug	(SUB FOR TH101292)
21	8036045	1	OIL TUBE	(SUB FOR TH106239)
22	8036046	1	OIL TUBE	(SUB FOR TH106240)
23	4139973	2	ADAPTER FITTING	(SUB FOR TH106045)
24	4125486	2	HOSE	(SUB FOR TH101025)
25	TY22470	4	Clamp	(SUB FOR TH102960) (SUB FOR AR21840, THIS APPLICATION) (SUB FOR AR65293)
27	8036044	1	OIL TUBE	(SUB FOR TH106238)
28	8036043	1	LINE	(SUB FOR TH106237)
29	4125486	2	HOSE	(SUB FOR TH101025)
30	TY22470	4	Clamp	(SUB FOR TH102960) (SUB FOR AR21840, THIS APPLICATION) (SUB FOR AR65293)
31	-	1	Part 30	( TH106010 NO LONGER AVAILABLE) (SUB TH101919 BULK MATERIAL CUT TO LENGTH OF 150 MM)
32	TY22472	2	Clamp	(SUB FOR AT145651 OR AR21999 OR AR21840)
35	4170957	1	VALVE	(SUB FOR TH106094)
36	4069801	1	Coupling	(SUB FOR TH101915)
36	4196259	1	Seal	(SUB FOR TH106966)
38	-	1	Part 35	(SUB FOR TH106071) ( 4156407 NO LONGER AVAILABLE FOR SERVICE)
39	4156433	1	ELBOW FITTING	(SUB FOR TH101971)
40	4154654	1	ADAPTER FITTING	(SUB FOR TH100942)
41	AT48434	1	Hydraulic Hose	(SUB FOR TH106125)
42	T115957	1	ADAPTER FITTING	(SUB FOR TH101034)
43	T115889	1	ELBOW FITTING	(SUB FOR TH101035)
45	4190224	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106126) (SUB FOR TH106134)
46	4154653	1	ADAPTER FITTING	(SUB FOR TH100989)
47	4154658	1	Elbow Fitting	(SUB FOR TH101039)
49	AT71731	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106150) (USE IF AVAILABLE)
49	AT71731	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106150)
50	4200465	1	Adapter Fitting	(SUB FOR TH101059) (SUB FOR TH108328)
51	4154656	1	Elbow Fitting	(SUB FOR TH101588)
52	4078859	1	Adapter Fitting	(SUB FOR TH105956)
23A	4506424	1	O-Ring	(SUB FOR TH100055)
50A	M800650	1	Packing	(SUB FOR TH100716)
