OFFSET BOOM HOSES AND LINES [02C05]

OFFSET BOOM HOSES AND LINES [02C05]

OFFSET BOOM HOSES AND LINES [02C05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

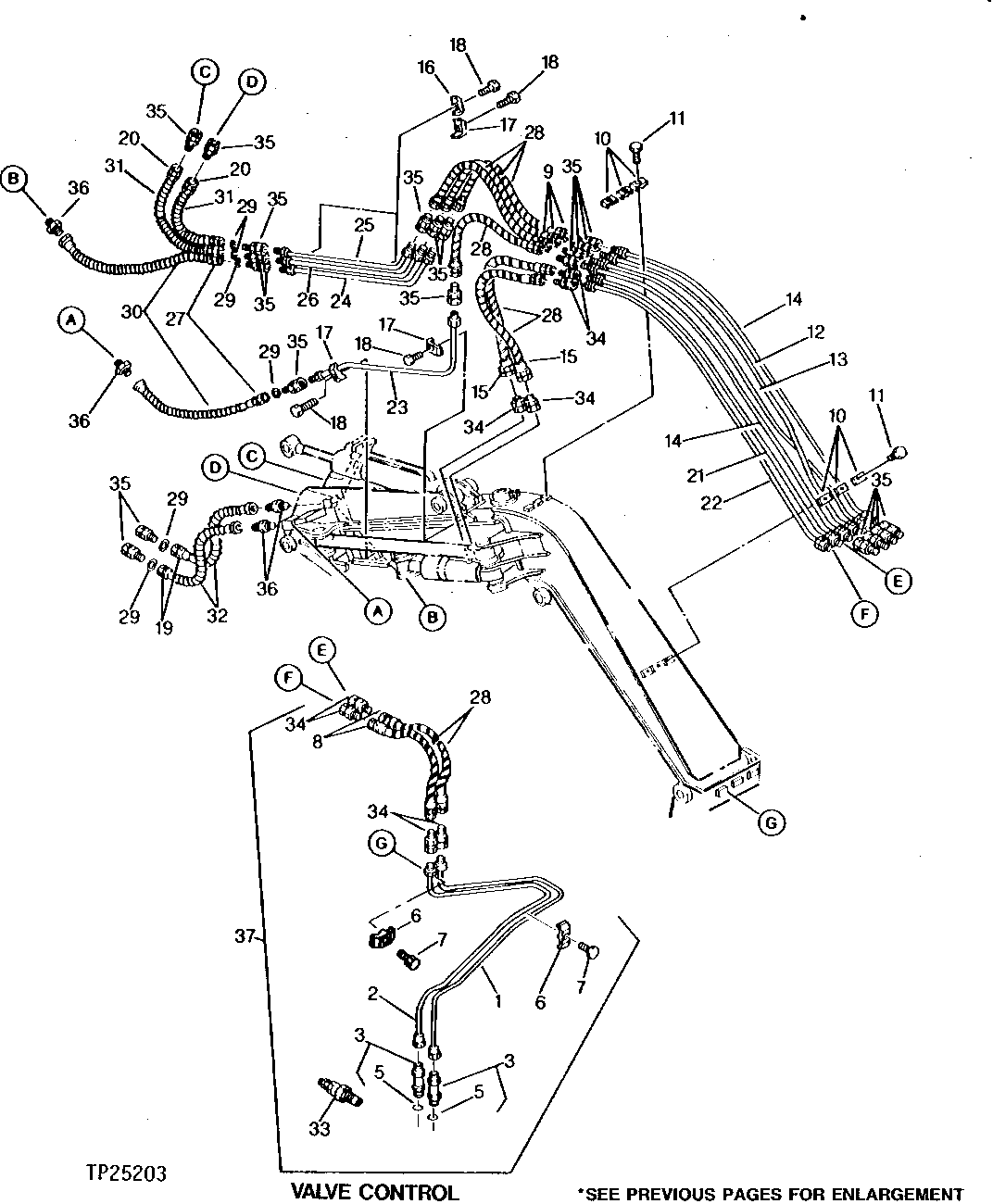

OFFSET BOOM HOSES AND LINES [02C05]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	7015610	1	OIL LINE	(SUB FOR TH106195)
2	7017117	1	OIL LINE	(SUB FOR TH106198)
3	4139969	2	ADAPTER FITTING	(SUB FOR TH106041)
5	4506418	2	O-Ring	(SUB FOR TH100061) (SUB FOR U46489)
6	4053593	2	CLAMP	(SUB FOR TH100969)
7	19M7358	2	Cap Screw	M10 X 40
8	4190232	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106145)
9	4190224	4	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106134)
10	4053593	6	CLAMP	(SUB FOR TH100969)
11	19M7358	6	Cap Screw	M10 X 40
12	8033863	1	OIL LINE	(SUB FOR TH106233)
13	8033862	1	OIL LINE	(SUB FOR TH106232)
14	8033861	2	OIL LINE	(SUB FOR TH106231)
15	4190233	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106146)
16	4053593	2	CLAMP	(SUB FOR TH100969)
17	4053594	4	CLAMP	(SUB FOR TH100970)
18	19M7358	6	Cap Screw	M10 X 40
19	4190224	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106134)
20	4190234	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106147)
21	8033865	1	OIL LINE	(SUB FOR TH106235)
22	8033864	1	OIL LINE	(SUB FOR TH106234)
23	8029884	1	OIL LINE	(SUB FOR TH106214)
24	8028213	1	OIL LINE	(SUB FOR TH106209)
25	8028215	1	OIL LINE	(SUB FOR TH106211)
26	8028214	1	OIL LINE	(SUB FOR TH106210)
27	AT42233	2	HYDRAULIC HOSE	(SUB FOR TH106148) (USE IF AVAILABLE)
27	AT42233	2	HYDRAULIC HOSE	3/4" X 762 MM (30") X 3/4", (SUB FOR TH106148)
28	-	10	Part 28	(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)
29	4073051	8	WASHER	(SUB FOR TH105953)
30	-	2	Part 30	(FURNISH TH101393 CUT TO LENGTH) ( TH105945 NO LONGER AVAILABLE)
31	4070691	2	GUARD	(SUB FOR TH105952)
32	-	2	Part 32	(FURNISH TH101393 CUT TO LENGTH)
33	4180674	2	PRESSURE RELIEF VALVE	(SUB FOR TH106101)
34	TH106156	8	ADAPTER FITTING	-
35	TH106158	20	ADAPTER FITTING	-
36	4154653	4	ADAPTER FITTING	(SUB FOR TH100989)
37	-	1	Part 37	( TH108082 NO LONGER AVAILABLE)
