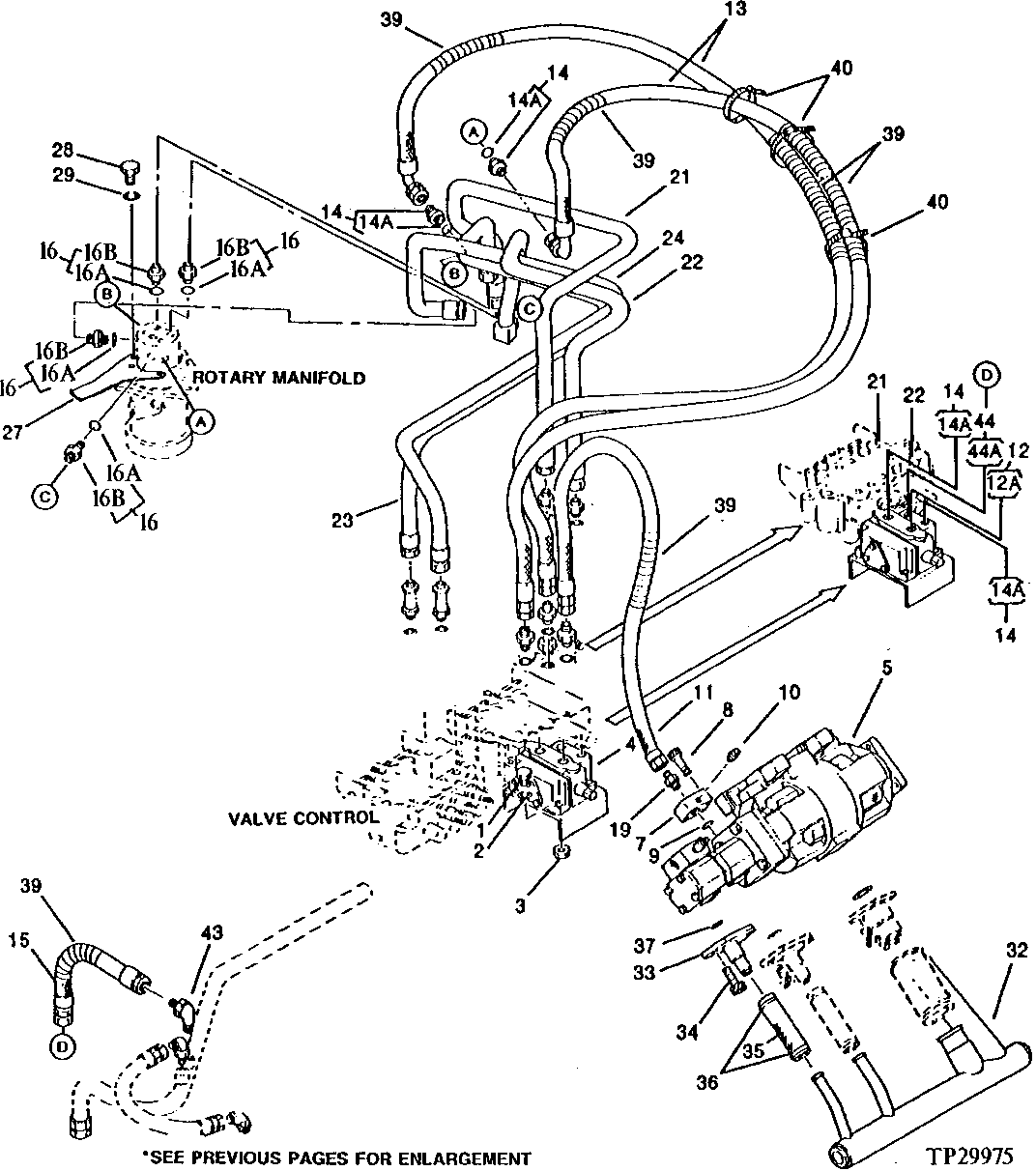

MAIN HYDRAULIC LINES AND HOSES (BLADE) [02D05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7662	3	Cap Screw	M10 X 30
2	12M7066	3	Lock Washer	10 MM, (SUB FOR TH100417)
3	14M7274	3	Nut	M10
4	4169915	1	HYD ACTUATED CONTROL VALVE	(SUB FOR TH106091)
5	-	1	Part 5	( TH106102 NO LONGER AVAILABLE)
7	3033772	1	FLANGE FITTING	(SUB FOR TH105925)
8	M341045	4	SCREW	(SUB FOR TH105696)
9	A811030	1	O-Ring	(SUB FOR TH101300)
10	M800462	1	Plug	(SUB FOR TH101049)
11	AT67064	1	Hydraulic Hose	9/16" X 750 MM (29-1/2") X 9/16", (SUB FOR TH106143)
12	4200466	1	Adapter Fitting	(SUB FOR TH101064) (SUB FOR TH108320)
13	4190230	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106144)
14	4190243	4	Adapter Fitting	(SUB FOR TH106151)
15	4190224	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH101929) (SUB FOR TH106134)
16	-	4	Part 17	( TH101294 NO LONGER AVAILABLE)
19	T115957	1	ADAPTER FITTING	(SUB FOR TH101034)
21	8032510	1	OIL LINE	(SUB FOR TH106224)
22	8036047	1	OIL LINE	(SUB FOR TH106241)
23	8032512	1	OIL LINE	(SUB FOR TH106226)
24	8032511	1	OIL LINE	(SUB FOR TH106225)
27	4158491	1	STOP	(SUB FOR TH106079)
28	19M7872	3	Cap Screw	M12 X 25
29	12H301	3	Lock Washer	1/2"
32	7017115	1	LINE	(SUB FOR TH106196)
33	9722275	1	LINE	(SUB FOR TH106284)
34	19M8447	4	Screw	(SUB FOR TH100941)
35	-	1	Part 31	(SUB FOR TH106008) ( 4120248 NO LONGER AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 150 MM LENGTH)
36	TY22467	2	Clamp	(SUB FOR TH101909 OR AR21839, THIS APPLICATION) (SUB FOR AT145650)
37	A811030	1	O-Ring	(SUB FOR TH101300)
39	3052919	6	TUBE	(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)
40	H77698	3	Tie Band	(SUB FOR T44946)
43	4154658	1	Elbow Fitting	(SUB FOR TH101039)
44	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH101006)
12A	CH11570	1	O-Ring	(SUB FOR TH100049)
14A	CH11570	1	O-Ring	(SUB FOR TH100049)
16A	4506418	1	O-Ring	(SUB FOR TH100061) (SUB FOR U46489)
16B	X8F3P4S	1	ADAPTER FITTING	(SUB FOR TH100960 OR 94-1303) (SUB FOR TH101294, ALONG WITH U46489)
44A	4506418	1	O-Ring	(SUB FOR TH100061) (SUB FOR U46489)

MAIN HYDRAULIC LINES AND HOSES (BLADE) [02D05]
