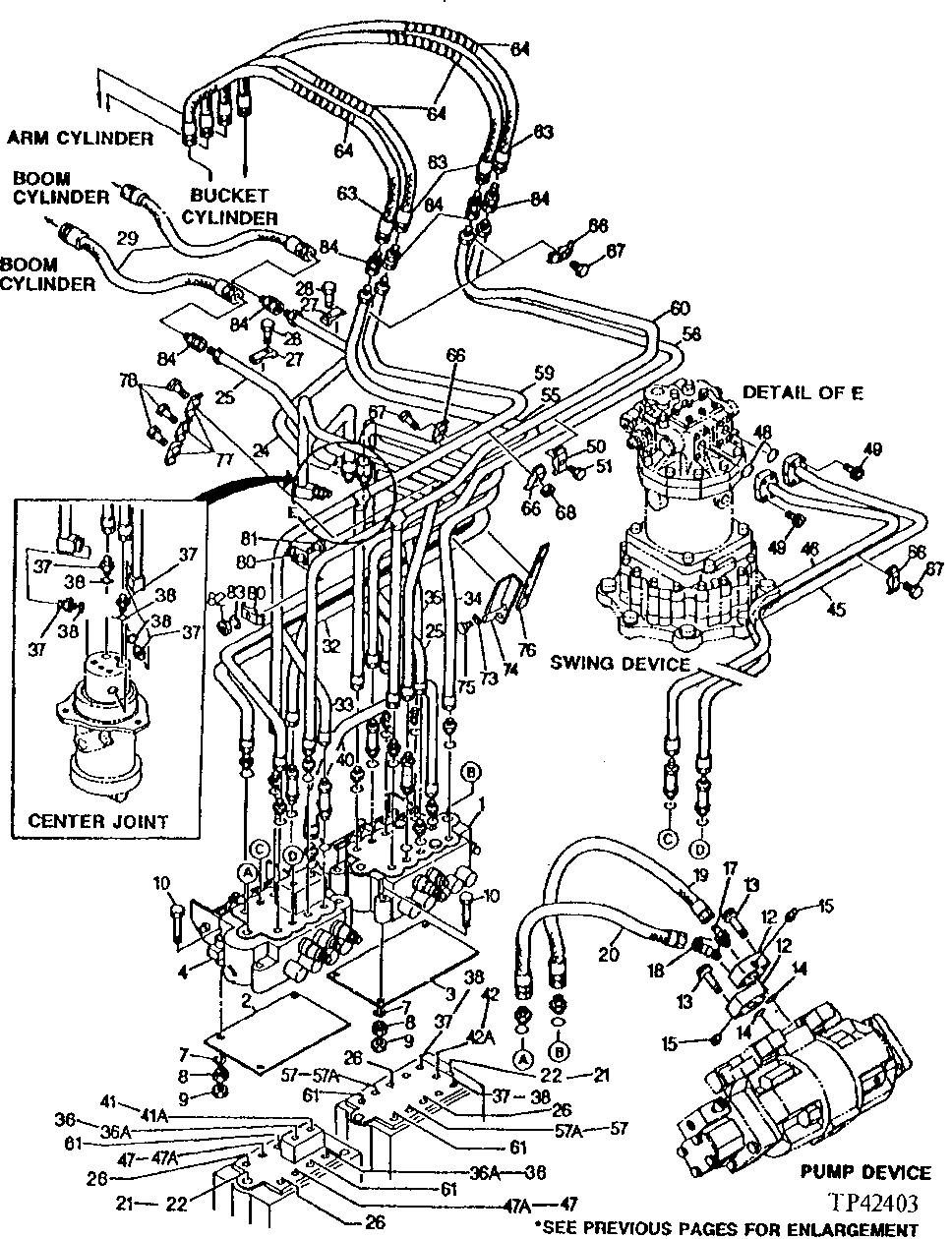

HYDRAULIC FUNCTION VALVE HOSES AND LINES [01J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
50	4053593	1	CLAMP	(SUB FOR TH100969)
51	19M7572	1	Cap Screw	M10 X 45
55	7015363	1	OIL LINE	(SUB FOR TH106193)
56	7015361	1	OIL LINE	(SUB FOR TH106191)
57	4139971	2	ADAPTER FITTING	(SUB FOR TH106043)
59	7015364	1	OIL LINE	(SUB FOR TH106194)
60	7015362	1	OIL LINE	(SUB FOR TH106192)
61	X8F3P4S	4	ADAPTER FITTING	(SUB FOR TH100960 OR 94-1303) (SUB FOR TH101294, ALONG WITH U46489)
61	4506418	4	O-Ring	(SUB FOR U46489)
63	4190225	4	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH106138)
64	-	4	Part 12	(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)
66	4053593	5	CLAMP	(SUB FOR TH100969)
67	19M7572	4	Cap Screw	M10 X 45
68	14M7274	1	Nut	M10
73	24M7047	2	Washer	(SUB FOR TH100967)
74	9726404	1	ANGLE	(SUB FOR TH106475)
75	19M8011	2	Cap Screw	M12 X 30
76	4169884	1	STRAP	(SUB FOR TH106090)
77	4053593	3	CLAMP	(SUB FOR TH100969)
78	19M7572	3	Cap Screw	M10 X 45
80	4053593	2	CLAMP	(SUB FOR TH100969)
81	19M7572	1	Cap Screw	M10 X 45
82	14M7274	1	Nut	M10
83	12M7066	1	Lock Washer	10 MM, (SUB FOR TH100417)
84	TH106158	6	ADAPTER FITTING	-
57A	4506418	1	O-Ring	(SUB FOR TH100061) (SUB FOR U46489)

HYDRAULIC FUNCTION VALVE HOSES AND LINES [01J01]
