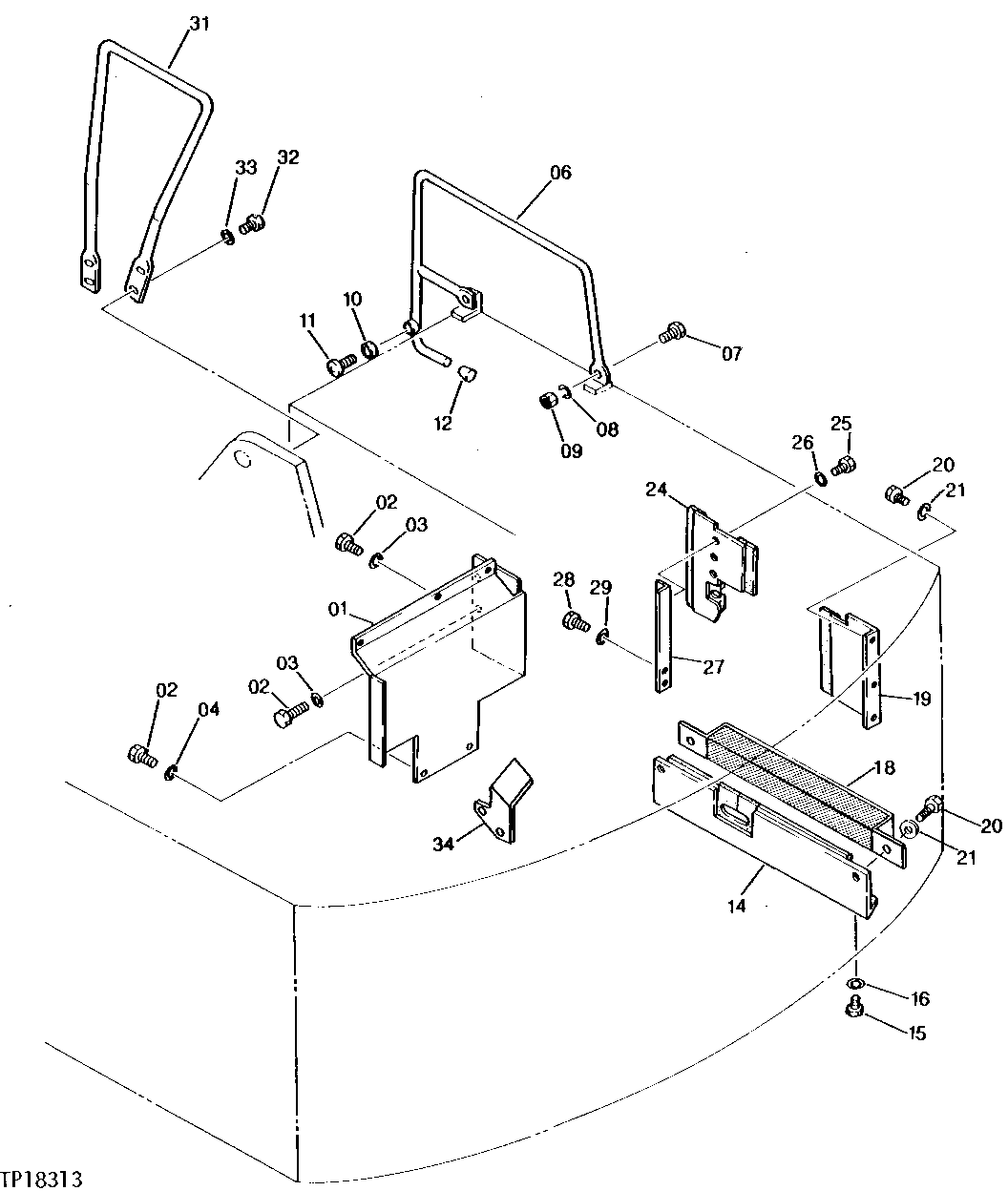

ENGINE COMPARTMENT COVERS AND HANDRAILS [01H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	7017150	1	COVER	(SUB FOR TH106203)
2	19M8017	7	Cap Screw	M12 X 20
3	24M7047	5	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
4	24H1748	2	Washer	1/2" X 1-1/4" X 0.105"
6	8025702	1	HANDRAIL	(SUB FOR TH106207)
7	19M7403	2	Cap Screw	M12 X 35
8	12H301	2	Lock Washer	1/2"
9	14M7275	2	Nut	M12
10	4121019	1	CUSHION	(SUB FOR TH106011)
11	21M7250	1	Screw	M4 X 12
12	-	1	Part 11	( TH101271 NOT AVAILABLE)
14	8036128	1	COVER	(SUB FOR TH106248)
15	19M8017	5	Cap Screw	M12 X 20, (SUB FOR 19M7872, THIS APPLICATION)
16	24M7047	5	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
18	9726446	1	COVER	(SUB FOR TH106657)
19	9725754	1	COVER	(SUB FOR TH106294)
20	19M8017	5	Cap Screw	M12 X 20
21	24M7047	5	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
24	9725755	1	COVER	(SUB FOR TH106295)
25	19M8017	3	Cap Screw	M12 X 20
26	24M7047	3	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
27	9725756	1	ANGLE	(SUB FOR TH106296)
28	19M7872	2	Cap Screw	M12 X 25
29	24M7047	2	Washer	13 X 24 X 2.500 MM, (SUB FOR TH100967)
31	8036039	1	HANDRAIL	(SUB FOR TH106236)
32	19M7872	4	Cap Screw	M12 X 25, (SUB FOR 19M8011, THIS APPLICATION)
33	12H301	4	Lock Washer	1/2"
34	3037148	1	COVER	(SUB FOR TH107991) (WITHOUT BLADE)
34	3037148	1	COVER	(SUB FOR TH107991) (WITH BLADE)

ENGINE COMPARTMENT COVERS AND HANDRAILS [01H14]
