Открытый узел

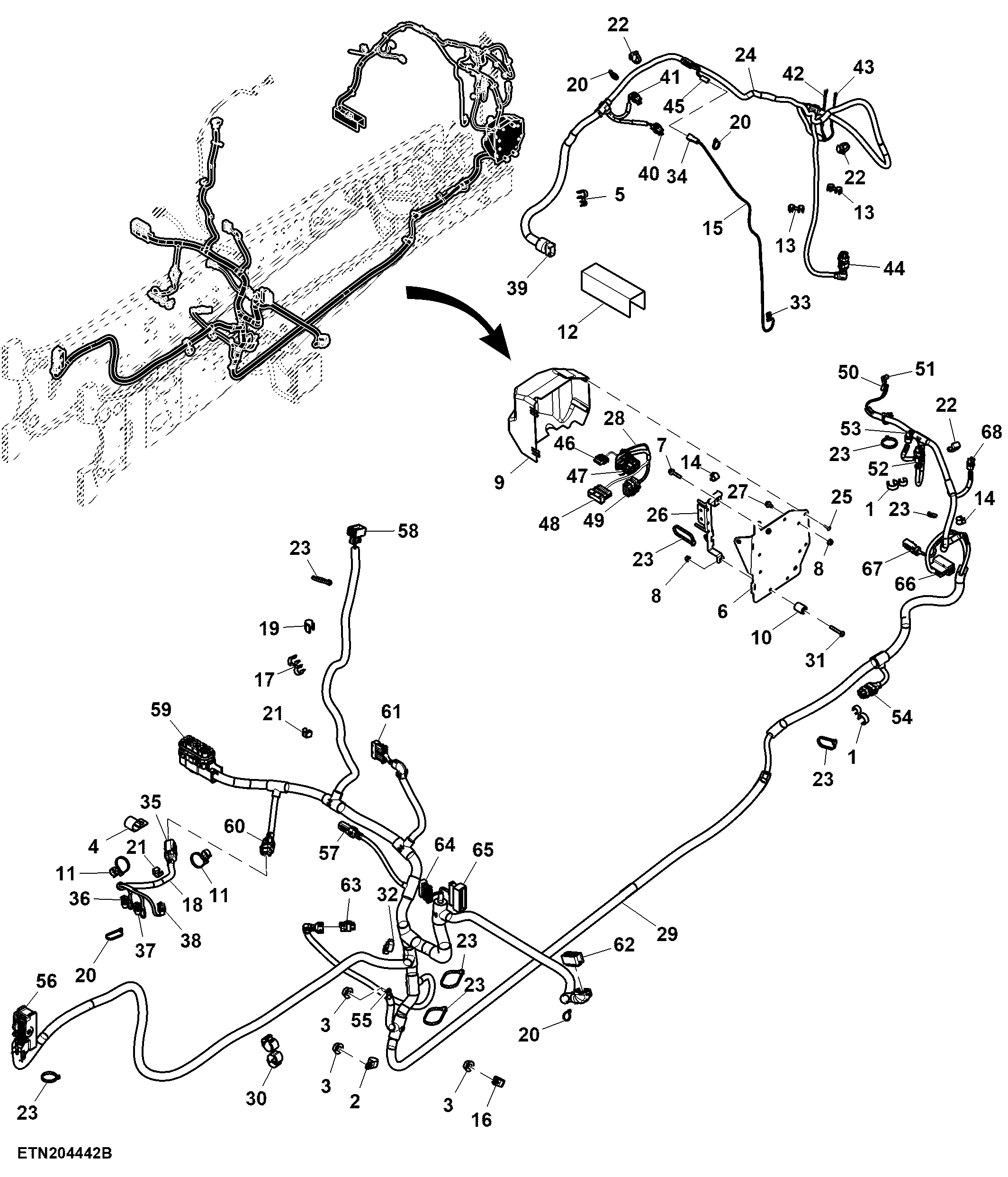

Wiring Harness, Front Chassis, W/ Front Controller

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL159725	2	Clamp	-
2	57M9856	1	Clamp	-
3	14M7298	3	Flange Nut	M8
4	R72659	1	Clamp	-
5	AL205606	1	Clamp	-
6	L211510	1	Retainer	-
7	19M7796	1	Screw	M6 X 30
8	14M7303	6	Flange Nut	M6
9	L205154	1	Cover	-
10	L210308	3	Bushing	-
11	L210203	2	Clip	-
12	L215887	1	Heat Shield	-
13	AL173227	2	Clip	-
14	L173956	2	Clamp	-
15	AL200541	1	Wiring Harness	-
16	57M9857	1	Clamp	-
17	R215302	1	Clip	-
18	AL224732	1	Wiring Harness	-
19	L171232	1	Clip	-
20	57M13596	4	Elec. Connector Accessory	-
21	L115277	2	Clip	-
22	L171035	1	Tie Band	-
23	57M12234	9	Elec. Connector Accessory	-
24	AL234232	1	Wiring Harness	-
25	L113415	2	Screw	-
26	L211511	1	Retainer	-
27	19M7774	4	Screw	M6 X 12
28	AL221959	1	Wiring Harness	-
29	AL233356	1	Wiring Harness	-
30	AL224003	2	Clamp	-
31	19M10831	3	Screw	M6 X 40
32	R241878	1	Clip	-
33	57M8481	1	Elec. Connector Terminal	X305F
34	57M7068	1	Elec. Connector Housing	X305M-1
34	57M7039	1	Elec. Connector Terminal	-
35	57M9789	1	Elec. Connector Housing	X1017M
35	57M9812	6	Elec. Connector Terminal	-
36	57M9336	1	Elec. Connector Housing	X1104F-3, Steer Right
36	57M7829	2	Elec. Connector Terminal	Cavity A, B
37	57M9336	1	Elec. Connector Housing	X1104F-2, Steer Left
37	57M7829	2	Elec. Connector Terminal	Cavity A, B
38	57M7379	1	Elec. Connector Housing	X1104F-1, Steer Left Right Off
38	57M7829	2	Elec. Connector Terminal	Cavity A, B
39	57M7399	3	Elec. Connector Seal	Cavity 1, 2, 10
39	57M8080	1	Elec. Connector Accessory	-
39	57M8074	1	Elec. Connector Terminal	-
39	57M7401	2	Elec. Connector Cavity Plug	Cavity 5, 6
39	57M7400	5	Elec. Connector Seal	Cavity 3, 4, 7, 8, 9
39	57M8068	1	Elec. Connector Housing	X1079M, Inline Engine
39	57M9042	5	Elec. Connector Terminal	Cavity 3, 4, 7, 8, 9
40	57M7254	1	Elec. Connector Housing	X676F-2, Coolant Level Loss Switch
40	57M10770	2	Elec. Connector Terminal	Cavity A, B
40	57M9215	2	Elec. Connector Seal	Cavity A, B
40	57M9712	1	Elec. Connector Accessory	-
41	57M7254	1	Elec. Connector Housing	X678F-2, Coolant Level Service Switch
41	57M10770	2	Elec. Connector Terminal	Cavity A, B
41	57M9215	2	Elec. Connector Seal	Cavity A, B
41	57M9523	1	Elec.Connect Locking Device	-
42	57M7054	1	Elec. Connector Terminal	X804F-4, Fuel Pump
43	57M11295	1	Elec. Connector Terminal	X804F-3, Fuel Pump
44	57M9772	1	Elec. Connector Housing	X690F-2, Water In Fuel Sensor
44	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
45	57M7067	1	Elec. Connector Housing	X1015F, Inline Adapter Ground Cooler
45	57M7431	1	Elec. Connector Terminal	Cavity A
46	57M8416	1	Elec. Connector Housing	X002F, Inline Front PTO
46	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
46	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
46	57M7318	1	Elec. Connector Accessory	-
47	57M10613	1	Elec. Connector Housing	-
47	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
47	57M10334	2	Elec. Connector Cavity Plug	Cavity L3, M3
47	57M10333	27	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B3, B4, C1, C2, C3, D1, D2, D3, D4, E1, E2, E3, E4, F1, F3, F4, G1, G2, G3, G4, H1, H2, H3, J1
47	57M10617	2	Elec. Connector Housing	Cavity L1, L2
47	57M10330	11	Elec. Connector Terminal	Cavity B2, C4, F2, H4, J2, J3, J4, K1, K2, K3, K4
47	57M10614	1	Elec. Connector Housing	X1322F, Front Controller M50
47	57M10331	4	Elec. Connector Terminal	Cavity L4, M1, M2, M4
48	57M7401	10	Elec. Connector Cavity Plug	Cavity 3, 4, 6, 7, 8, 11, 12, 13, 14, 15
48	57M8082	1	Elec. Connector Accessory	-
48	57M8075	1	Elec. Connector Seal	-
48	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
48	57M7399	2	Elec. Connector Seal	Cavity 1, 16
48	57M9042	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
48	57M8069	1	Elec. Connector Housing	X1018M, Inline Vehicle
49	57M9800	1	Elec. Connector Housing	X1083F, Inline Front SFA
49	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
49	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 8
50	57M7984	1	Elec. Connector Terminal	XH001F-2, Horn
51	57M7984	1	Elec. Connector Terminal	XH001F-1, Horn
52	57M15493	1	Elec. Connector Accessory	-
52	57M9772	1	Elec. Connector Housing	XR002F-1, Fuel Preheater
52	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
52	57M11333	1	Elec. Connector Accessory	-
53	57M7379	1	Elec. Connector Housing	XY107F, Solenoid Cac Fan
53	57M7829	2	Elec. Connector Terminal	Cavity A, B
54	57M9817	1	Elec. Connector Housing	X637F-1, Inline Was Sensor
54	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
55	57M9419	1	Elec. Connector Terminal	XGND9, Ground Vehicle
56	57M8241	22	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 10, 14, 17, 18, 19, 22, 23, 24, 25, 27, 43, 44, 45, 46, 48
56	57M12234	1	Elec. Connector Accessory	-
56	57M8734	5	Elec. Connector Seal	Cavity 58, 59, 60, 61, 62
56	57M7403	15	Elec. Connector Cavity Plug	Cavity 8, 9, 11, 12, 13, 21, 26, 34, 50, 51, 52, 53, 54, 55, 56
56	57M7399	1	Elec. Connector Seal	Cavity 57
56	57M7402	18	Elec. Connector Cable Seal	Cavity 15, 16, 20, 28, 29, 30, 31, 32, 33, 35, 36, 37, 38, 39, 40, 41, 42, 47, 49
56	57M8585	1	Elec. Connector Terminal	Cavity 57
56	57M10715	2	Elec. Connector Terminal	Cavity 10, 27
56	57M9161	39	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 14, 15, 16, 17, 18, 19, 20, 22, 23, 24, 25, 28, 29, 30, 31, 32, 33, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49
56	57M10482	1	Elec. Connector Housing	X1120F, Inline Cab
57	57M9776	1	Elec. Connector Housing	XK102M-1, Relay AB-COM
57	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
57	57M9940	1	Elec. Connector Accessory	-
57	57M15493	1	Elec. Connector Accessory	-
58	57M7399	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
58	57M8081	1	Elec. Connector Accessory	-
58	57M8079	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
58	57M8071	1	Elec. Connector Housing	X1233F, Inline Adapter Hood
59	RE538505	1	Elec. Connector Accessory	XA021F-3, CU Engine
59	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
59	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 16, 17, 23, 24, 27, 30, 32, 43, 44, 45, 50
59	57M10319	2	Elec. Connector Terminal	Cavity 13, 14
59	57M10336	36	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 46, 47, 48, 49, 51, 52, 53, 54
59	57M13590	2	Elec. Connector Accessory	-
59	R528122	1	Elec. Connector Accessory	-
60	57M9786	1	Elec. Connector Housing	X1017F, Inline Adapter Powertrac
60	57M9807	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
61	57M8069	1	Elec. Connector Housing	X1080M, Inline Engine
61	57M8075	1	Elec. Connector Seal	-
61	57M8082	1	Elec. Connector Accessory	-
61	57M7401	11	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 8, 9, 12, 13, 14, 15, 16
61	57M7400	3	Elec. Connector Seal	Cavity 6, 7, 11
61	57M7399	2	Elec. Connector Seal	Cavity 5, 10
61	57M9042	3	Elec. Connector Terminal	Cavity 6, 7, 11
62	57M13596	1	Elec. Connector Accessory	-
62	57M11864	1	Elec. Connector Accessory	-
62	57M8584	1	Elec. Connector Terminal	Cavity 4
62	57M7403	3	Elec. Connector Cavity Plug	Cavity 8, 9, 15
62	57M8241	6	Elec. Connector Terminal	Cavity 7, 10, 11, 12, 13, 14
62	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 5, 6
62	57M7400	1	Elec. Connector Seal	Cavity 4
62	57M11866	1	Elec. Connector Housing	X1061F, Inline Power Link Box
62	57M9161	6	Elec. Connector Terminal	Cavity 7, 10, 11, 12, 13, 14
62	57M8585	5	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6
63	57M9772	1	Elec. Connector Housing	XY138F, Valve Reversible Fan
63	57M9807	2	Elec. Connector Terminal	Cavity 1, 2
63	57M11333	1	Elec. Connector Accessory	-
63	57M9849	1	Elec. Connector Accessory	ORDER 57M15925
63	57M15925	1	Elec. Connector Accessory	-
64	57M7399	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
64	57M7401	1	Elec. Connector Cavity Plug	Cavity 14
64	57M8075	1	Elec. Connector Seal	-
64	57M8082	1	Elec. Connector Accessory	-
64	57M7400	9	Elec. Connector Seal	Cavity 7, 8, 9, 10, 11, 12, 13, 15, 16,
64	57M9042	9	Elec. Connector Terminal	Cavity 7, 8, 9, 10, 11, 12, 13, 15, 16,
64	57M8069	1	Elec. Connector Housing	X1005M, Inline Transmission
65	57M7401	24	Elec. Connector Cavity Plug	-
65	57M8070	1	Elec. Connector Housing	-
65	57M8084	1	Elec. Connector Accessory	-
65	57M7400	20	Elec. Connector Seal	Cavity 1, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22
65	57M8941	2	Elec. Connector Terminal	Cavity 2, 23
65	57M9532	20	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22
65	57M8073	1	Elec. Connector Housing	X1019F, Inline CHF
65	57M7399	2	Elec. Connector Seal	Cavity 2, 23
66	57M7401	10	Elec. Connector Cavity Plug	Cavity 3, 4, 6, 7, 8, 11, 12, 13, 14, 15
66	57M8083	1	Elec. Connector Accessory	-
66	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
66	57M7399	2	Elec. Connector Seal	Cavity 1, 16
66	57M9532	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
66	57M8079	2	Elec. Connector Terminal	Cavity 1, 16
66	57M8072	1	Elec. Connector Housing	X1018F, Inline Front Controller
67	57M9776	1	Elec. Connector Housing	XR020M, Can Terminator Passive
67	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
67	57M11134	1	Elec. Connector Housing	-
68	57M7379	1	Elec. Connector Housing	XB125F, Sensor Air Temperature Outside Front
68	57M7829	2	Elec. Connector Terminal	Cavity A, B
68	57M8633	1	Elec. Connector Accessory	-
68	57M9112	2	Elec. Connector Cavity Plug	-
68	57M9222	1	Elec. Connector Housing	-

Wiring Harness, Front Chassis, W/ Front Controller

Нет текстового описания
