Открытый узел

Power Outlet Socket Strip / Wiring Harness, W/ CommandARM™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL212344	1	Wiring Harness	-
2	AL157429	1	Wiring Harness	-
3	RE71274	1	Strip	-
4	RE67019	6	Cap	-
5	14M7139	3	Nut	M4
6	24M7117	3	Washer	4.300 X 9 X 0.800 mm
7	L151020	2	Screw	-
8	-	1	Part 8	CTL 65 mm, MF L58448
9	57M7280	1	Elec. Connector Housing	Outlet Socket, X239F-3
9	57M7274	1	Elec. Connector Accessory	-
9	57M7298	2	Elec. Connector Terminal	Cavity A, B
9	57M7299	1	Elec. Connector Terminal	Cavity C
9	57M9216	2	Elec. Connector Seal	Cavity A, B
9	57M9217	1	Elec. Connector Seal	Cavity C
10	57M9217	1	Elec. Connector Seal	Cavity C
10	57M9216	2	Elec. Connector Seal	Cavity A, B
10	57M7298	2	Elec. Connector Terminal	Cavity A, B
10	57M7299	1	Elec. Connector Terminal	Cavity C
10	57M7274	1	Elec. Connector Accessory	-
10	57M7280	1	Elec. Connector Housing	Power Strip, X239F-2
11	57M7305	1	Elec. Connector Housing	Interface Cab, X239M-1
11	57M7307	1	Electrical Connector Assy	-
11	57M7286	3	Elec. Connector Terminal	Cavity A, B, C
11	R78063	2	Elec. Connector Seal	Cavity A, B
11	57M9217	1	Elec. Connector Seal	Cavity C
12	57M7053	1	Elec. Connector Terminal	Power Strip, X239G_3
12	57M7053	1	Elec. Connector Terminal	Power Strip, X239G_1
13	57M7305	1	Elec. Connector Housing	Connection Point on Harness W023, X239M-4
13	57M7307	1	Electrical Connector Assy	-
13	57M7286	3	Elec. Connector Terminal	Cavity A, B, C
13	R78063	3	Elec. Connector Seal	Cavity A, B, C
14	57M7055	1	Elec. Connector Terminal	Power Strip, X239G_2

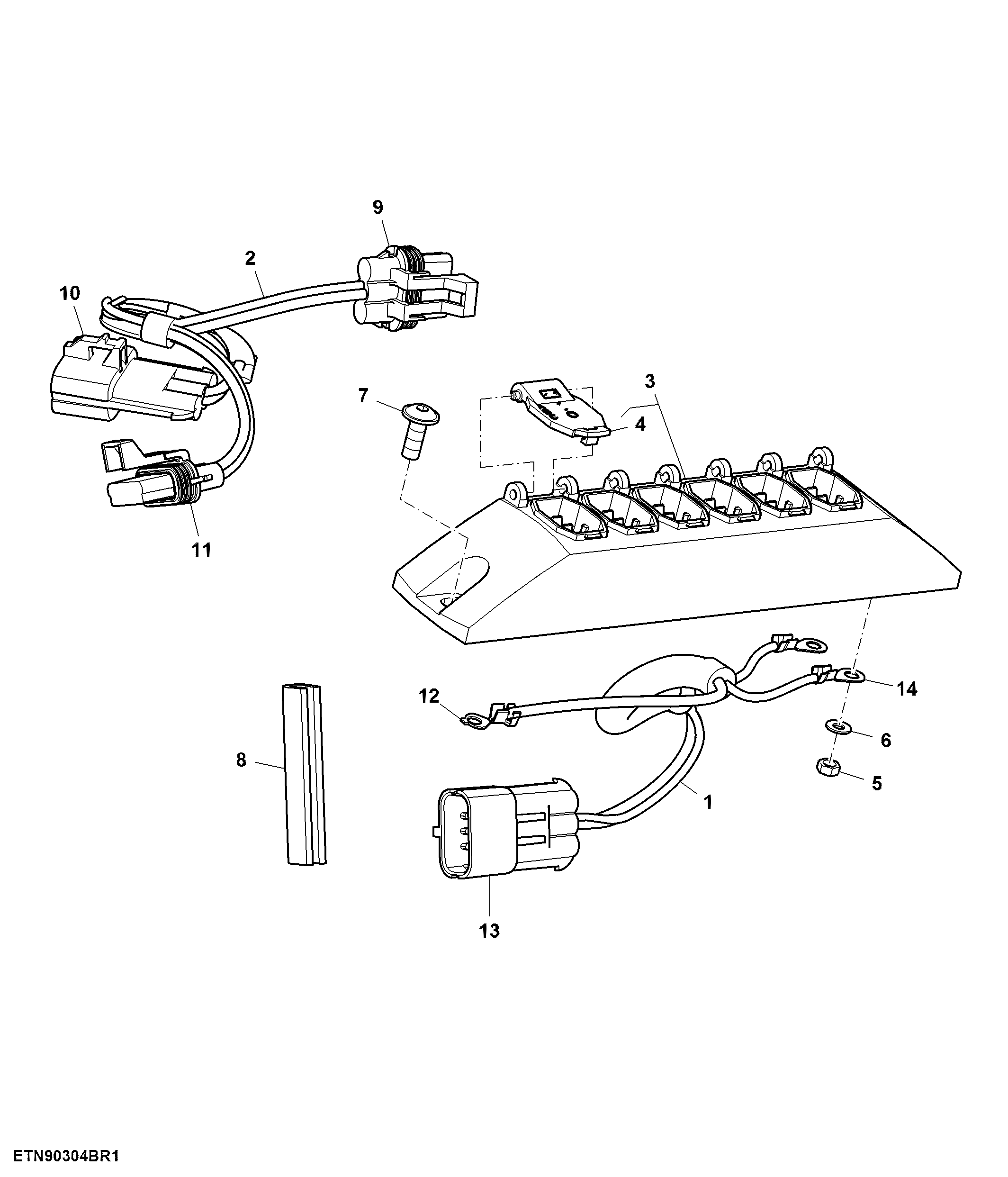

Power Outlet Socket Strip / Wiring Harness, W/ CommandARM™
