Открытый узел

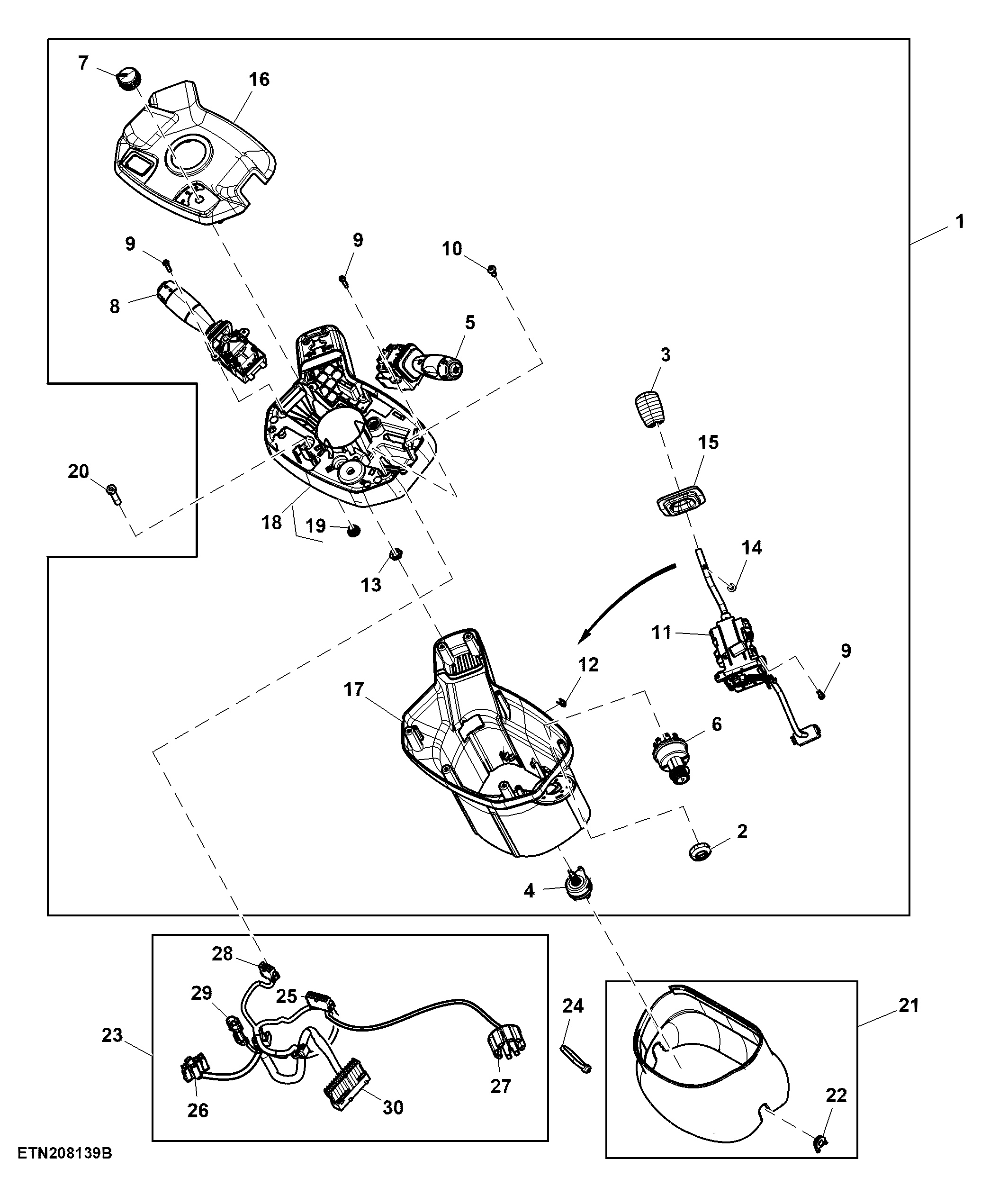

Multi Function Unit, AutoPowr™/ IVT™, W/O CommandPRO™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL233574	1	Module	-
2	R115974	1	Nut	-
3	R164403	1	Knob	-
4	AL220958	1	Rotary Switch	Headlight
5	AL166429	1	Switch	Wiper
6	RE270408	1	Rotary Switch	Ignition
7	AL76568	1	Knob	-
8	AL232587	1	Switch	Turn Signal
9	L225268	8	Screw	-
10	37M7391	9	Screw	-
11	AL234462	1	Control	-
12	R270659	2	Clip	-
13	H204146	1	Nut	-
14	R343439	1	Screw	-
15	L221355	1	Boot	-
16	L226118	1	Shield	-
17	L226116	1	Housing	-
18	AL233660	1	Module	-
19	L225269	3	Bushing	-
20	19M7555	3	Screw	M8 X 30
21	AL233770	1	Panel	-
22	L167579	2	Washer	-
23	AL233366	1	Wiring Harness	-
24	L222108	1	Tie Band	-
25	57M9579	1	Elec. Connector Housing	Wiper Switch Front/ Rear, XS128F
25	57M9580	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 9, 10, 11, 12, 13, 16
26	57M13625	1	Elec. Connector Housing	Main Light Switch, XS137F
26	57M7089	4	Elec. Connector Terminal	Cavity 1, 2, 3, B
27	L78202	1	Elec. Connector Housing	Main Switch, XS012F
27	57M7089	6	Elec. Connector Terminal	ACC, AID, BAT1, ELX, IGN, ST
28	57M9578	1	Elec. Connector Housing	Multi Function Switch, XS127F
28	57M9580	8	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 9
29	57M7985	1	Electrical Connector Assy	Reversible Fan Switch, XS115M
29	57M7289	1	Elec.Connect Locking Device	-
29	57M9215	2	Elec. Connector Seal	Cavity A, B
29	57M7252	2	Elec. Connector Terminal	Cavity A, B
30	57M8070	1	Elec. Connector Housing	Inline Instrument, X735M
30	57M9042	19	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 18,19, 21, 22, 23
30	57M7399	4	Elec. Connector Seal	Cavity 1, 2, 20, 24
30	57M7400	19	Elec. Connector Seal	Cavity 3, 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 18,19, 21, 22, 23
30	57M7401	1	Elec. Connector Cavity Plug	Cavity 10
30	57M8076	1	Elec. Connector Terminal	-
30	57M8084	1	Elec. Connector Accessory	-

Multi Function Unit, AutoPowr™/ IVT™, W/O CommandPRO™

Нет текстового описания
