Electro-Hydraulic Midstack SCV, W/ 3 Functions, W/ Front Hitch Control Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7273	6	Nut	M8
2	L169114	3	Rod	-
3	L173495	3	Stud	-
4	L224712	1	Valve Cover	-
5	AL229866	1	Selective Control Valve	Selective Control Valve, ICV, 300 Series
6	AL234434	4	Motor	-
7	AL200946	3	Check Valve	-
8	AL200965	3	Valve Spool	-
9	L203821	3	Compression Spring	-
10	AL203292	8	Seal Kit	-
11	AL172974	8	Fitting Plug	-
12	AL214529	8	Spool Kit	-
13	AL231435	4	Seal Kit	-
14	AL172968	4	Cap	-
15	AL231108	6	Seal Kit	-
16	AL229864	2	Selective Control Valve	Selective Control Valve, 300 Series
17	AL231373	1	Control Valve	Manifold Midstack SCV
18	AL218832	1	Solenoid Valve	2/2 Solenoid Directional Valve Poppet Style
19	L216304	1	Solenoid Valve Coil	-
20	A94569	1	Nut	-
21	AL216043	1	Seal Kit	-
22	AL216044	1	Solenoid Valve	-
23	AL231434	1	Valve Cover	-
24	AL229862	1	Selective Control Valve	Selective Control Valve, 450 Series
25	AL180447	2	Check Valve	-
26	AL227141	1	Valve Kit	Spring
27	AL227142	1	Valve Kit	Compensator
28	AL231130	1	Valve Kit	Load Sensing Shuttle
29	AL217542	1	Oil Line	-
30	38H5076	1	Adapter Fitting	-
31	T77857	3	O-Ring	-
32	51M7045	2	O-Ring	19.300 X 2.200 mm
33	38H5040	1	Tee Fitting	-

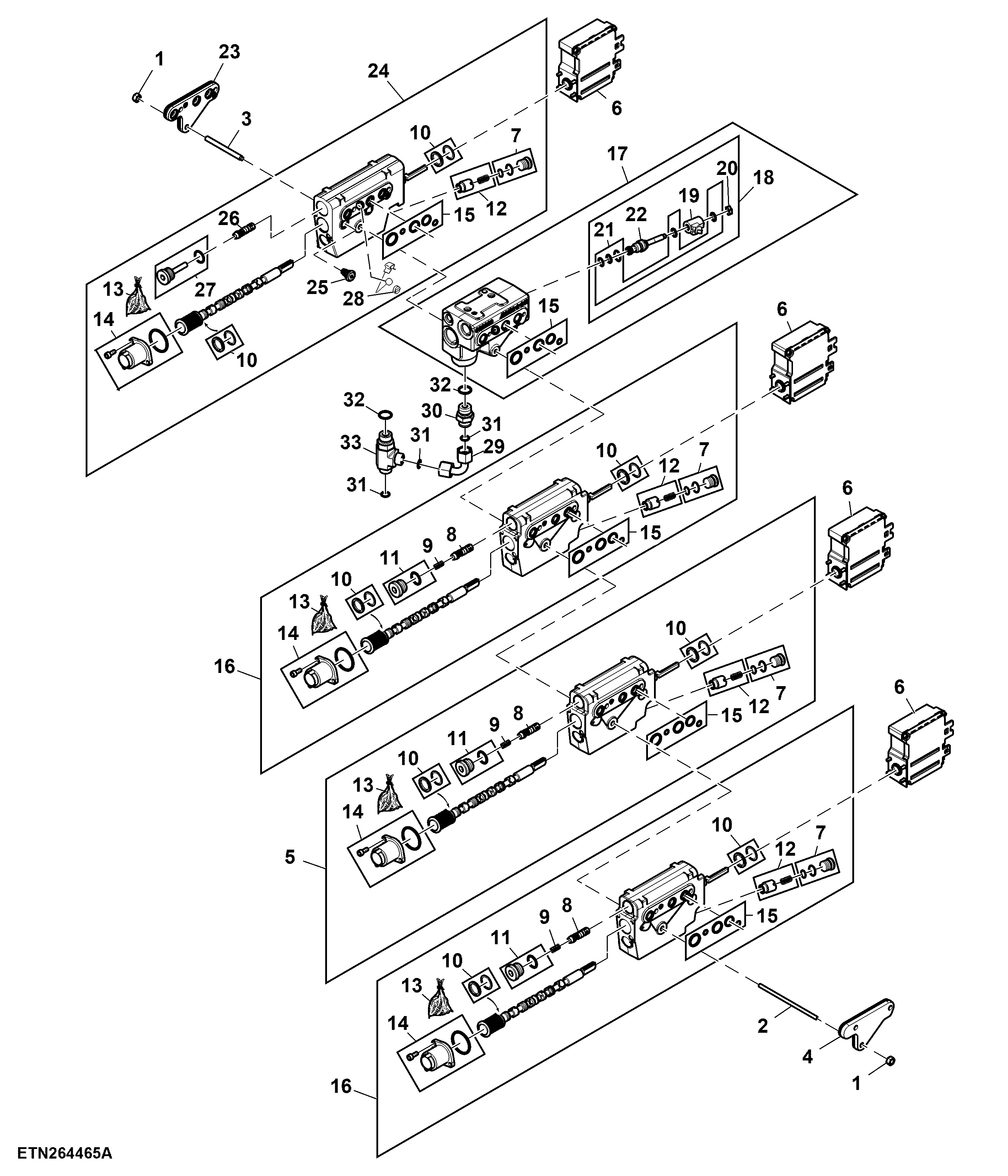

Electro-Hydraulic Midstack SCV, W/ 3 Functions, W/ Front Hitch Control Valve
