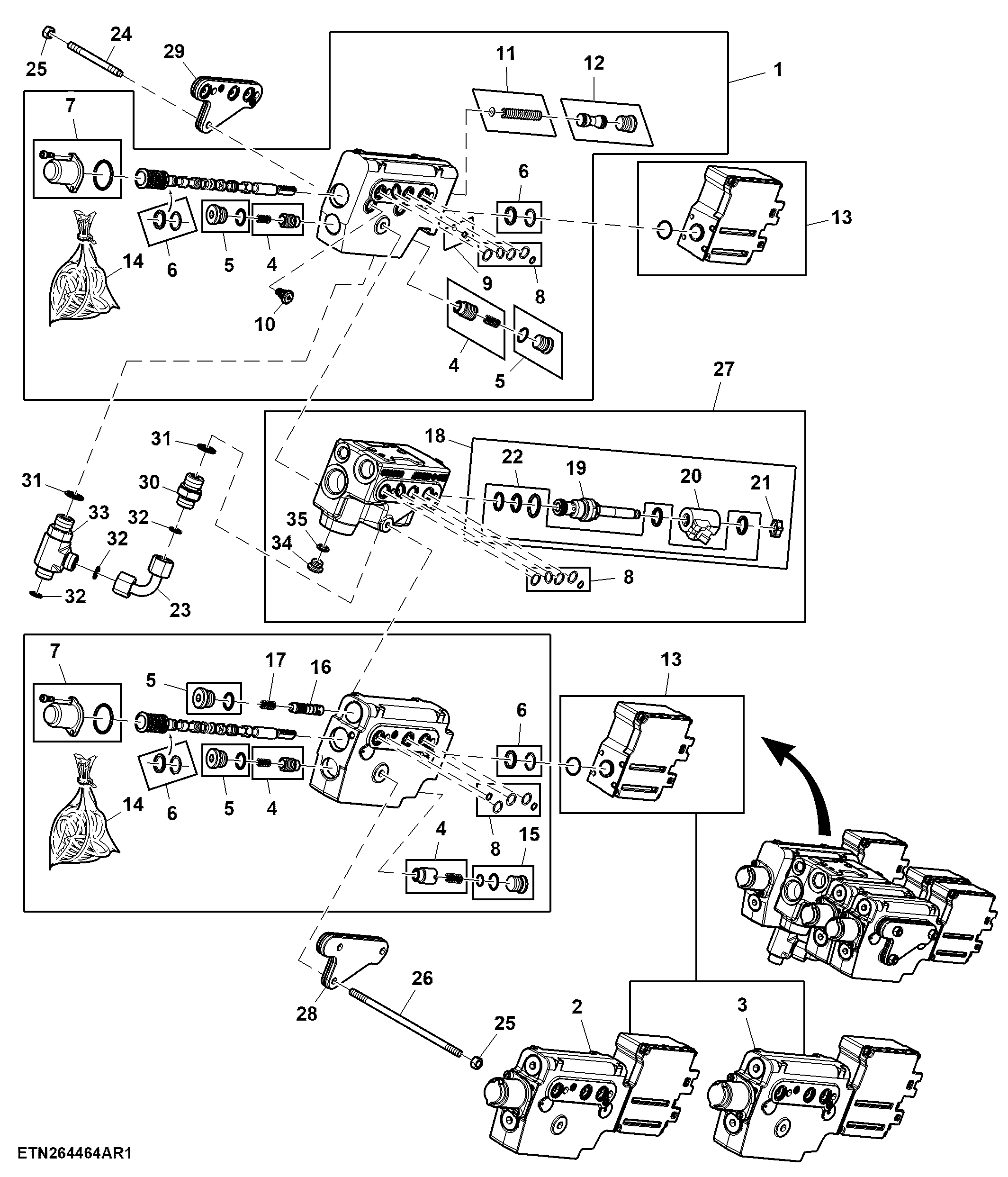

Electrical Midstack SCV, W/ 2 Functions, W/ Front Hitch Control Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL229862	1	Selective Control Valve	Selective Control Valve, 450 Series
2	AL229864	1	Selective Control Valve	Selective Control Valve, 300 Series
3	AL229866	1	Selective Control Valve	Selective Control Valve, ICV, 300 Series
4	AL214529	6	Spool Kit	-
5	AL172974	6	Fitting Plug	-
6	AL203292	6	Seal Kit	-
7	AL172968	3	Cap	-
8	AL231108	5	Seal Kit	-
9	AL231130	1	Valve Kit	Load Sensing Shuttle
10	AL180447	2	Check Valve	-
11	AL227141	1	Valve Kit	Spring
12	AL227142	1	Valve Kit	Compensator
13	AL234434	3	Motor	Stepper Motor for E-SCV (Version 2)
14	AL231435	3	Seal Kit	-
15	AL200946	2	Check Valve	-
16	AL200965	2	Valve Spool	-
17	L203821	2	Compression Spring	-
18	AL218832	1	Solenoid Valve	2/2 Solenoid Directional Valve Poppet Style
19	AL216044	1	Solenoid Valve	-
20	L216304	1	Solenoid Valve Coil	-
21	A94569	1	Nut	-
22	AL216043	1	Seal Kit	-
23	AL217542	1	Oil Line	-
24	L173495	3	Stud	-
25	14M7273	6	Nut	M8
26	L173497	3	Stud	-
27	AL231373	1	Control Valve	Manifold Midstack SCV
28	L224712	1	Valve Cover	-
29	AL231434	1	Valve Cover	-
30	38H5076	1	Adapter Fitting	-
31	51M7045	2	O-Ring	19.300 X 2.200 mm
32	T77857	3	O-Ring	-
33	38H5040	1	Tee Fitting	-
34	64M1017	1	Drain Plug	-
35	51M7041	1	O-Ring	11.300 X 2.200 mm

Electrical Midstack SCV, W/ 2 Functions, W/ Front Hitch Control Valve
