Wiring Harness, 60A ISOBUS Socket, Front Hitch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596484	1	Electrical Connector Assy	-
2	57M12234	4	Elec. Connector Accessory	-
3	L174118	2	Screw	-
4	L219643	1	Bracket	-
5	14M7298	1	Flange Nut	M8
6	R215302	1	Clip	-
7	L79648	2	Push Nut	-
8	L216156	1	Cover	-
9	L114783	1	Clamp	-
10	AH225365	2	Clip	-
11	R213663	4	Clamp	-
12	AH89486	1	Clip	-
13	L214539	1	Weatherstrip	LGTH = 190 mm
14	AL233509	1	Wiring Harness	-
15	AL233463	1	Wiring Harness	-
16	Z102278	1	Clamp	-
17	57M10301	1	Elec. Connector Housing	Connection Point between Harnesses W431 and W432, X865F
17	57M8565	2	Elec. Connector Terminal	Cavity 1, 2
17	57M8545	2	Elec. Connector Terminal	Cavity 4, 6
17	57M8572	2	Elec. Connector Cavity Plug	Cavity 3, 5
18	57M7175	1	Elec. Connector Terminal	Ground Point, XGND64
19	57M9555	1	Clip	-
19	57M7291	1	Electrical Connector Assy	-
19	57M7259	4	Elec. Connector Seal	Cavity A, B, C, D
19	57M7252	2	Elec. Connector Terminal	Cavity E, F
19	57M7263	1	Elec. Connector Housing	Connection Point between Harnesses W421 and W433, X805M-1
19	57M9214	2	Elec. Connector Seal	Cavity E, F
20	57M8169	1	Elec. Connector Housing	Connection Point between Harnesses W431 and W432, X867F
20	57M8200	2	Elec. Connector Terminal	Cavity 1, 2
20	57M8202	2	Elec. Connector Terminal	Cavity 1, 2
21	57M10702	1	Elec. Connector Housing	Connector for Implement Socket, Rear or Front (Wiring Harness W401 or W431), X744F-2
21	57M8584	2	Elec. Connector Terminal	Cavity 1, 3
21	57M8585	2	Elec. Connector Terminal	Cavity 2, 4
21	57M7400	2	Elec. Connector Seal	Cavity 1, 3
21	57M7399	2	Elec. Connector Seal	Cavity 2, 4
21	57M9585	1	Elec. Connector Accessory	-
22	57M11093	1	Elec. Connector Housing	Connector for Power Supply of Implement Socket, Front (Wiring Harness W431), X1097F-A
23	57M10302	1	Elec. Connector Housing	Connection Point between Harnesses W431 and W432, X865M
23	57M8572	2	Elec. Connector Cavity Plug	Cavity 3, 5
23	57M10524	2	Elec. Connector Terminal	Cavity 4, 6
23	57M10525	2	Elec. Connector Terminal	Cavity 1, 2
24	57M8170	1	Elec. Connector Accessory	Connection Point between Harnesses W431 and W432, X867M
24	57M8201	2	Elec. Connector Terminal	Cavity 1, 2
24	57M8202	2	Elec. Connector Terminal	Cavity 1, 2
25	57M9033	1	Elec. Connector Housing	Front Implement Socket, XA091F-2
25	57M8165	2	Elec. Connector Terminal	Cavity 2, 4
25	Z78008	2	Elec. Connector Seal	Cavity 1, 3
25	57M7618	1	Electrical Connector Assy	-
26	57M13652	1	Elec. Connector Housing	Front Implement Socket, XA091F-1
26	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
26	57M8593	2	Elec. Connector Terminal	Cavity 2, 4

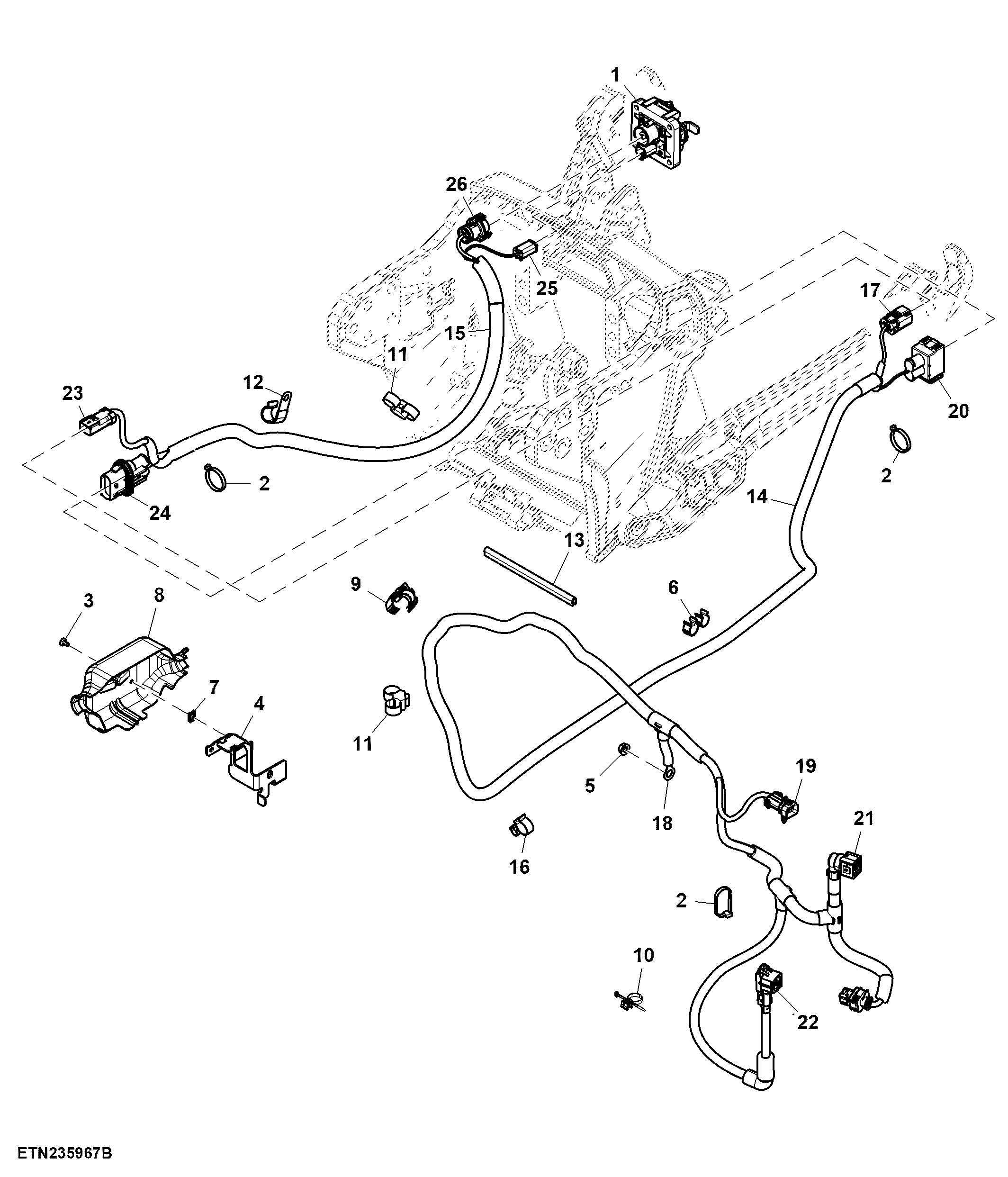

Wiring Harness, 60A ISOBUS Socket, Front Hitch
