Открытый узел

Wiring Harness, W/ Front Loader, W/O Memory Function, W/ Loader Working Lights, W/ Quick Unlatch Function

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L154171	1	Clip	-
2	L210204	2	Tie Band	-
3	R44302	2	Tie Band	-
4	L210203	2	Clip	-
5	L171201	1	Clip	-
6	AL233510	1	Wiring Harness	-
7	L169299	1	Tie Band	-
8	AXX12508	1	Elec. Connector Housing	X811M
8	57M7546	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 7
9	57M7259	2	Elec. Connector Seal	Cavity C, F
9	57M9910	4	Elec. Connector Cable Seal	Cavity A, B, D, E
9	57M7252	4	Elec. Connector Terminal	Cavity A, B, D, E
9	57M7263	1	Elec. Connector Housing	X1268M
10	57M7985	1	Electrical Connector Assy	X1278M
10	57M7259	2	Elec. Connector Seal	-
10	57M7289	1	Elec.Connect Locking Device	-
10	57M7328	1	Elec. Connector Housing	-
10	57M8218	1	Elec. Connector Accessory	-
10	57M7252	2	Elec. Connector Terminal	Cavity A, B
10	57M9215	2	Elec. Connector Seal	Cavity A, B
11	57M9746	1	Elec. Connector Housing	X445M
11	57M9742	1	Elec. Connector Housing	-
11	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 3
11	57M9814	1	Elec. Connector Cavity Plug	Cavity 4

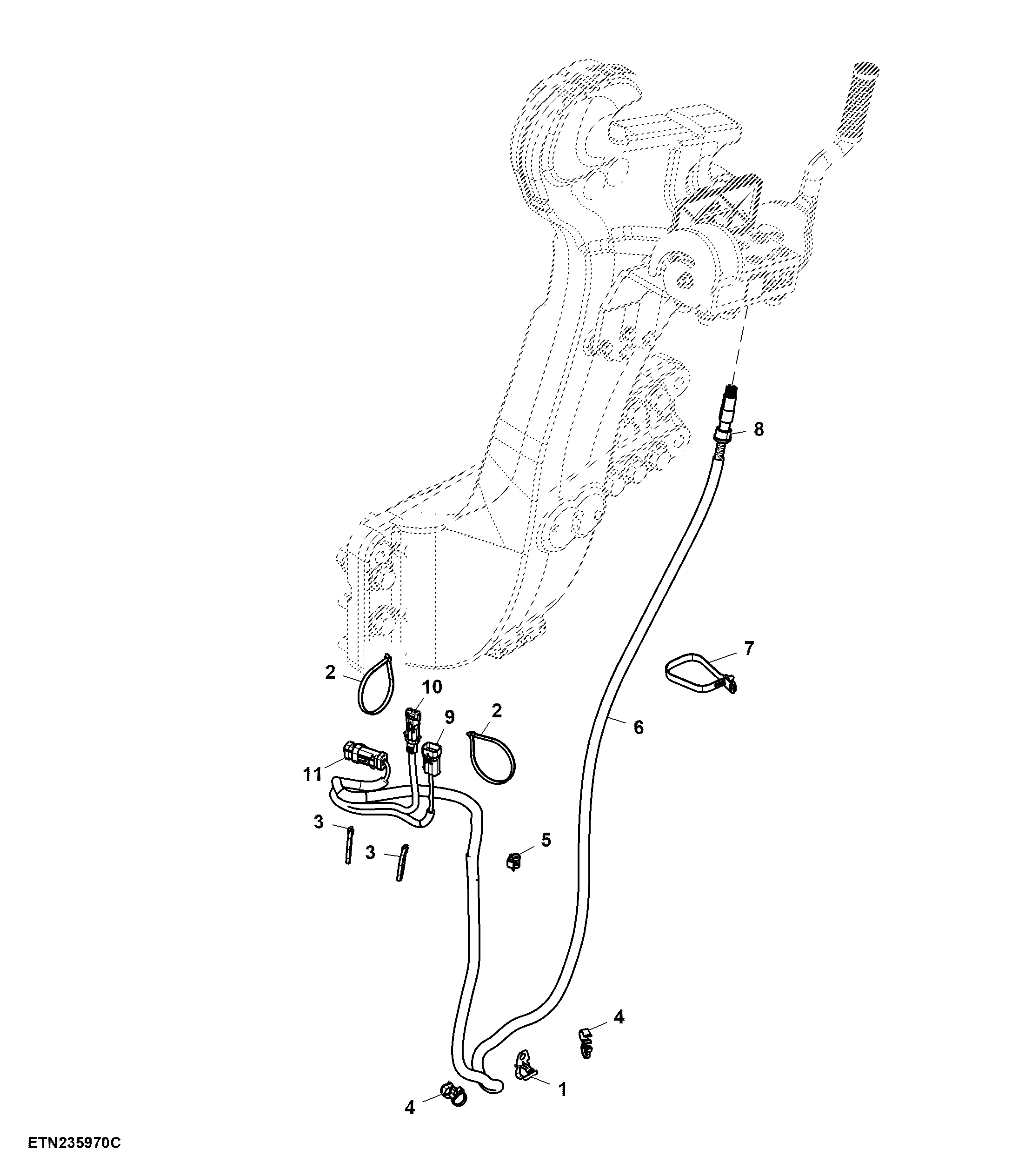

Wiring Harness, W/ Front Loader, W/O Memory Function, W/ Loader Working Lights, W/ Quick Unlatch Function
