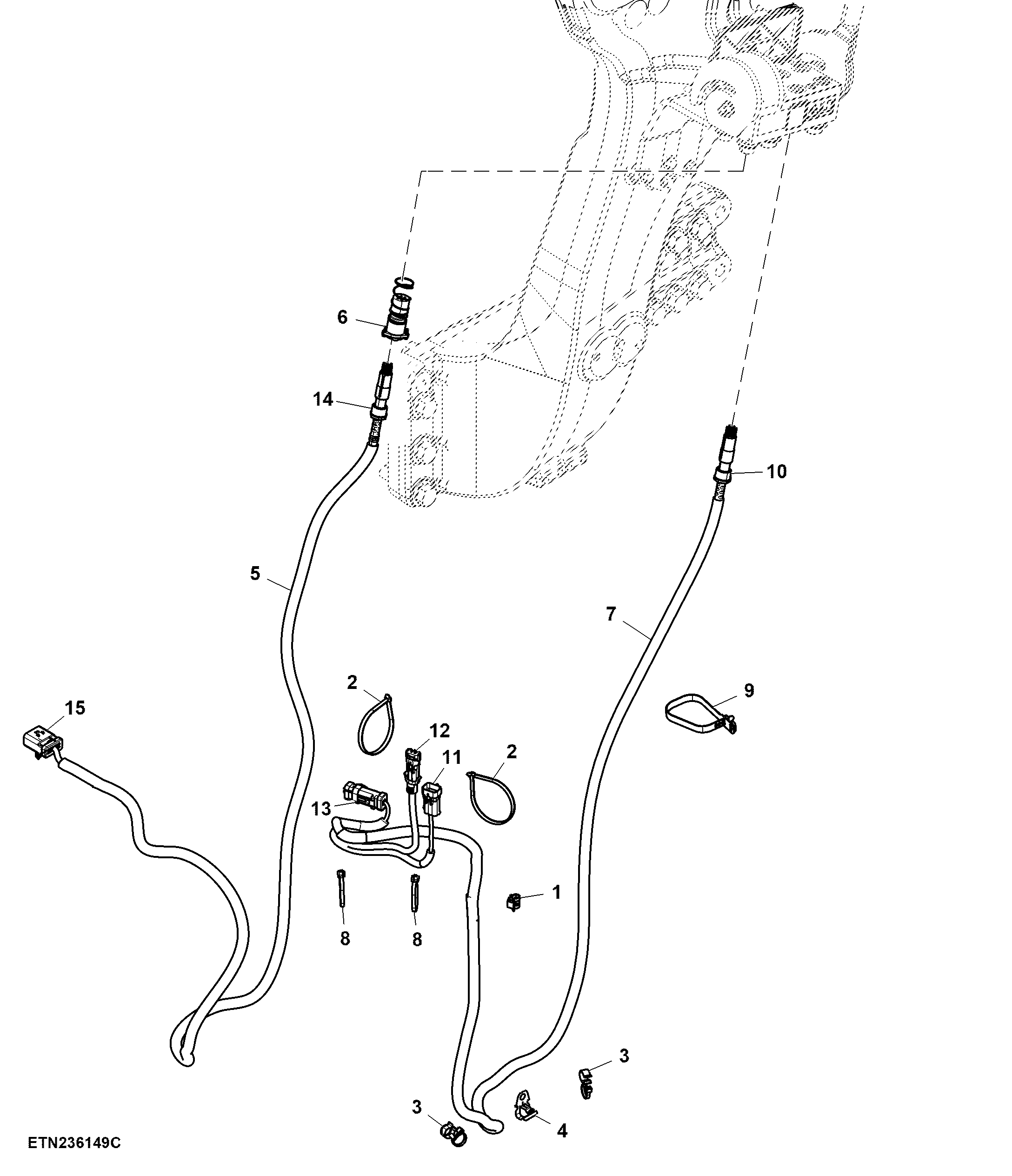

Wiring Harness, W/ Front Loader, W/ Memory Function, W/ Loader Working Lights, W/ Quick Unlatch Function

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L171201	1	Clip	-
2	L210204	2	Tie Band	-
3	L210203	2	Clip	-
4	L154171	1	Clip	-
5	AL227837	1	Wiring Harness	-
6	DC216032	1	Electrical Connector Assy	-
7	AL233510	1	Wiring Harness	-
8	57M12234	2	Elec. Connector Accessory	-
9	L169299	1	Tie Band	-
10	AXX12508	1	Elec. Connector Housing	X811M
10	57M7546	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 7
11	57M7263	1	Elec. Connector Housing	X1268M
11	57M7252	4	Elec. Connector Terminal	Cavity A, B, D, E
11	57M9910	4	Elec. Connector Cable Seal	Cavity A, B, D, E
11	57M7259	2	Elec. Connector Seal	Cavity C, F
12	57M9215	2	Elec. Connector Seal	Cavity A, B
12	57M7252	2	Elec. Connector Terminal	Cavity A, B
12	57M7289	1	Elec.Connect Locking Device	-
12	57M8218	1	Elec. Connector Accessory	-
12	57M7328	1	Elec. Connector Housing	-
12	57M7259	2	Elec. Connector Seal	-
12	57M7985	1	Electrical Connector Assy	X1278M
13	57M9746	1	Elec. Connector Housing	X445M
13	57M9742	1	Elec. Connector Housing	-
13	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M9814	1	Elec. Connector Cavity Plug	Cavity 4
14	AXX12508	1	Elec. Connector Housing	X306F
14	57M7546	3	Elec. Connector Terminal	Cavity 1, 3, 7
14	57M8165	2	Elec. Connector Terminal	Cavity 4, 6
14	R78069	2	Elec. Connector Cavity Plug	Cavity 2, 5
15	57M9804	1	Elec. Connector Housing	X1169M
15	57M9939	1	Elec. Connector Accessory	-
15	57M9813	2	Elec. Connector Terminal	Cavity 8, 9
15	57M10603	3	Elec. Connector Terminal	Cavity 10, 11, 12
15	57M10336	7	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 5, 6, 7

Wiring Harness, W/ Front Loader, W/ Memory Function, W/ Loader Working Lights, W/ Quick Unlatch Function
