Открытый узел

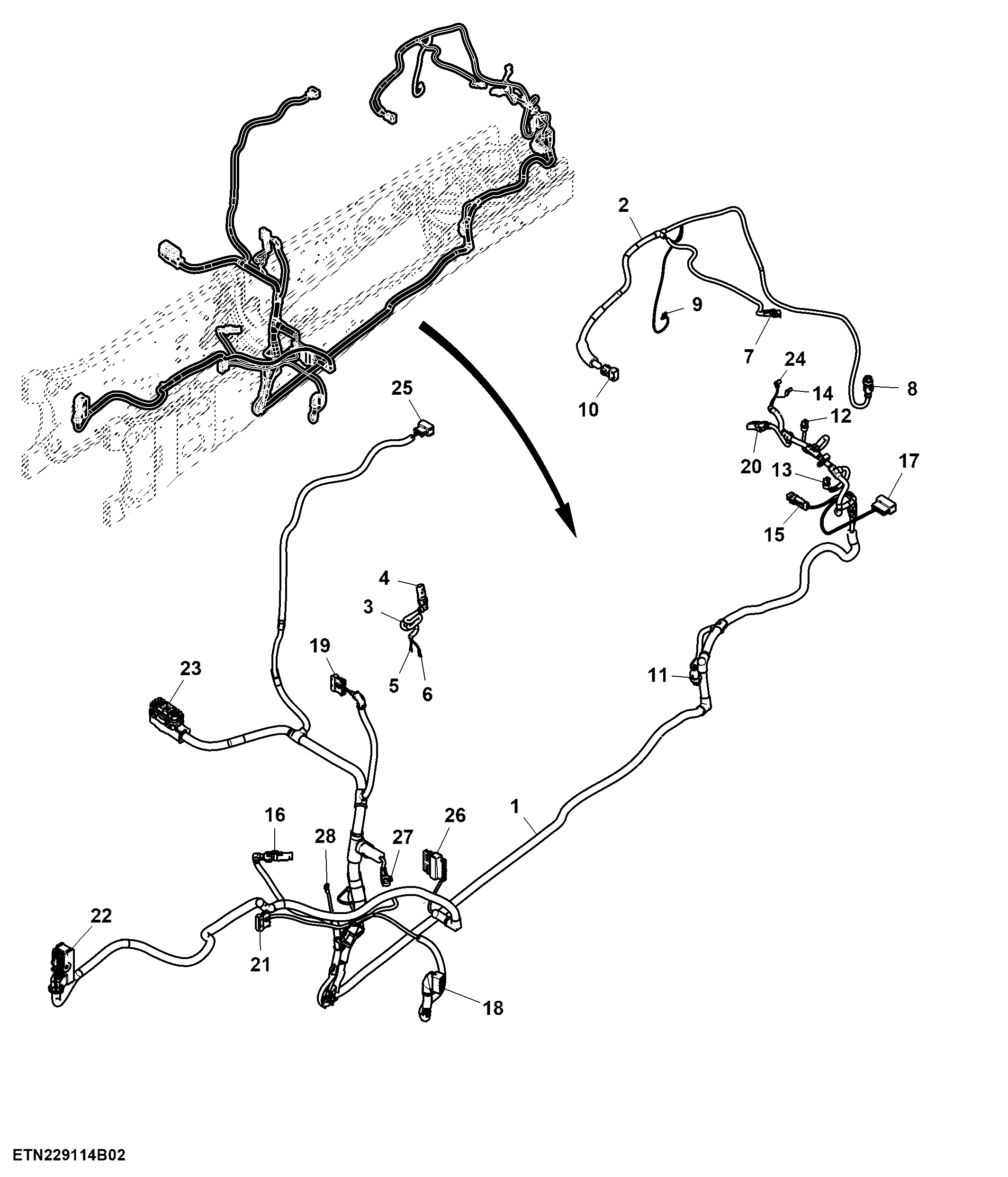

Wiring Harness, Front Chassis, W/O Front Controller, W/O Front Hitch, W/O Front PTO (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL233358	1	Wiring Harness	-
2	AL228191	1	Wiring Harness	-
3	AL228059	1	Wiring Harness	-
4	57M9776	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W522, X575M
4	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
4	57M10155	1	Elec. Connector Accessory	-
5	57M11295	1	Elec. Connector Terminal	Fuel Pump, X804F-3
6	57M7054	1	Elec. Connector Terminal	Fuel Pump, X804F-4
7	57M7254	1	Elec. Connector Housing	Connector of Coolant Level Switch, X678F-2
7	57M10770	2	Elec. Connector Terminal	Cavity A, B
7	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M8218	1	Elec. Connector Accessory	-
8	57M15493	1	Elec. Connector Accessory	-
8	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
8	57M9772	1	Elec. Connector Housing	Water-in-Fuel Sensor, X690F
9	57M8481	1	Elec. Connector Terminal	Connector for Radiator Ground Connection, X305F
10	57M8068	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W521, X1079M
10	57M9042	4	Elec. Connector Terminal	Cavity 3, 4, 7, 9
10	57M7400	4	Elec. Connector Seal	Cavity 3, 4, 7, 9
10	57M7399	1	Elec. Connector Seal	Cavity 10
10	57M7401	5	Elec. Connector Cavity Plug	Cavity 1, 2, 5, 6, 8
10	57M8074	1	Elec. Connector Terminal	-
10	57M8080	1	Elec. Connector Accessory	-
11	57M9817	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W471, X637F-1
11	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
12	57M7379	1	Elec. Connector Housing	Proportional Solenoid Valve for Hydraulic Motor of Charge Air Cooler, XY107F
12	57M7829	2	Elec. Connector Terminal	Cavity A, B
13	57M9112	2	Elec. Connector Cavity Plug	-
13	57M9222	1	Elec. Connector Housing	-
13	57M7829	2	Elec. Connector Terminal	Cavity A, B
13	57M7379	1	Elec. Connector Housing	Ambient Air Temperature Sensor, XB125F
13	57M8633	1	Elec. Connector Accessory	-
14	57M7984	1	Elec. Connector Terminal	Horn, XH001F-2
14	57M8024	1	Elec. Connector Terminal	Cavity 1
15	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, XR020M
15	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
15	57M11134	1	Elec. Connector Housing	-
16	57M9772	1	Elec. Connector Housing	Valve Reversible Fan, XY138F
16	57M9807	2	Elec. Connector Terminal	Cavity 1, 2
16	57M11333	1	Elec. Connector Accessory	-
16	57M15925	1	Elec. Connector Accessory	-
17	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
17	57M8083	1	Elec. Connector Accessory	-
17	57M7401	10	Elec. Connector Cavity Plug	Cavity 3, 4, 6, 7, 8, 11, 12, 13, 14, 15
17	57M9532	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
17	57M8079	2	Elec. Connector Terminal	Cavity 1, 16
17	57M8072	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W511, X1018F
17	57M7399	2	Elec. Connector Seal	Cavity 1, 16
18	57M7400	1	Elec. Connector Seal	Cavity 4
18	57M13596	1	Elec. Connector Accessory	-
18	57M11864	1	Elec. Connector Accessory	-
18	57M7403	5	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 15
18	57M8241	4	Elec. Connector Terminal	Cavity 11, 12, 13, 14
18	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 5, 6
18	57M9161	4	Elec. Connector Terminal	Cavity 11, 12, 13, 14
18	57M8584	1	Elec. Connector Terminal	Cavity 4
18	57M8585	5	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6
18	57M11866	1	Elec. Connector Housing	Connector for Engine Connecting Wiring Harness (Wiring Harness W511), X1061F
19	57M8069	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W511, X1080M
19	57M8075	1	Elec. Connector Seal	-
19	57M8082	1	Elec. Connector Accessory	-
19	57M7401	11	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 8, 9, 12, 13, 14, 15, 16
19	57M7399	2	Elec. Connector Seal	Cavity 5, 10
19	57M9042	3	Elec. Connector Terminal	Cavity 6, 7, 11
19	57M7400	3	Elec. Connector Seal	Cavity 6, 7, 11
20	57M9772	1	Elec. Connector Housing	Heating Element of Fuel Preheater, XR002F-1
20	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
20	57M11333	1	Elec. Connector Accessory	-
20	57M15493	1	Elec. Connector Accessory	-
21	57M7400	9	Elec. Connector Seal	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 15
21	57M8075	1	Elec. Connector Seal	-
21	57M8082	1	Elec. Connector Accessory	-
21	57M7401	1	Elec. Connector Cavity Plug	Cavity 16
21	57M7399	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
21	57M9042	9	Elec. Connector Terminal	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 15
21	57M8069	1	Elec. Connector Housing	Connection Point between Harnesses W601 and W511, X1005M
22	57M10482	1	Elec. Connector Housing	Connection Point on Wiring Harness W201, X1120F
22	57M12234	1	Elec. Connector Accessory	-
22	57M8734	5	Elec. Connector Seal	Cavity 58, 59, 60, 61, 62
22	57M7403	22	Elec. Connector Cavity Plug	Cavity 4, 5, 8, 9, 12, 15, 16, 23, 24, 26, 34, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
22	57M7399	1	Elec. Connector Seal	Cavity 57
22	57M7402	16	Elec. Connector Cable Seal	Cavity 20, 21, 28, 29, 30, 31, 32, 33, 35, 36, 37, 38, 39, 40, 41, 42
22	57M8241	2	Elec. Connector Terminal	Cavity 10, 27
22	57M8241	16	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 11, 13, 14, 17, 18, 19, 22, 25, 43, 44, 45
22	57M8585	1	Elec. Connector Terminal	Cavity 57
22	57M10715	2	Elec. Connector Terminal	Cavity 10, 27
22	57M9161	32	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 11, 13, 14, 17, 18, 19, 20, 21, 22, 25, 28, 29, 30, 31, 32, 33, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45
23	R528122	1	Elec. Connector Accessory	-
23	57M13590	1	Elec. Connector Accessory	-
23	57M10321	13	Elec. Connector Terminal	Cavity 7, 11, 12, 16, 17, 23, 24, 27, 32, 43, 44, 45, 50
23	57M10336	37	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 46, 47, 48, 49, 51, 52, 53, 54
23	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
23	RE538505	1	Elec. Connector Accessory	Engine Control Unit, XA021F-3
23	57M10319	2	Elec. Connector Terminal	Cavity 13, 14
24	57M7984	1	Elec. Connector Terminal	Horn, XH001F-1
24	57M8024	1	Elec. Connector Terminal	Cavity 1
25	57M8071	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 and W101 or W102, X1233F
25	57M8079	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
25	57M7399	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
25	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
25	57M8081	1	Elec. Connector Accessory	-
26	57M8941	2	Elec. Connector Terminal	Cavity 2, 23
26	57M8070	1	Elec. Connector Housing	-
26	57M8084	1	Elec. Connector Accessory	-
26	57M7401	2	Elec. Connector Cavity Plug	Cavity 9, 24
26	57M7399	2	Elec. Connector Seal	Cavity 2, 23
26	57M7400	20	Elec. Connector Seal	Cavity 1, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22
26	57M9532	20	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22
26	57M8073	1	Elec. Connector Housing	X1019F
27	57M7263	1	Elec. Connector Housing	Connection Point between Harnesses W451 and W511, X637M
27	57M7495	4	Elec. Connector Terminal	Cavity A, B, C, D
27	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
27	57M7259	2	Elec. Connector Seal	Cavity E, F
27	57M7291	1	Electrical Connector Assy	-
27	57M8910	1	Clip	-
28	57M9419	1	Elec. Connector Terminal	Ground Point, XGND9

Wiring Harness, Front Chassis, W/O Front Controller, W/O Front Hitch, W/O Front PTO (2/2)
