Открытый узел

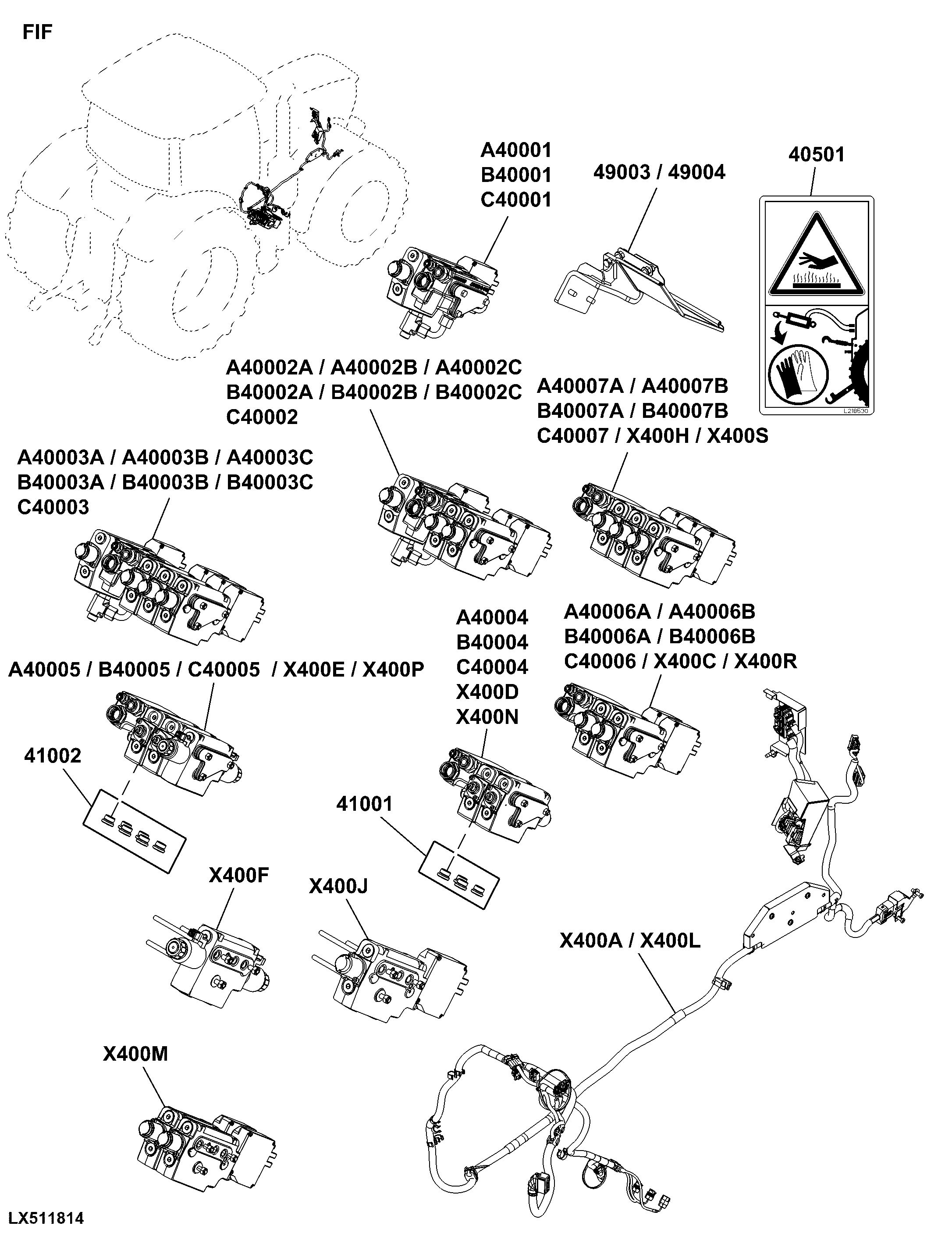

FIF Hydraulic Couplers, Front Implement

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Mounting Parts, Heat Cover, Mechanical SCV / Electrical SCV, Attachment	-
-	-	1	Valve Kit, Mechanical SCV, 2-3 Function Upgrade, Attachment	-
-	-	1	Valve Kit, Electrical SCV, 2-3 Function Upgrade, Attachment (127156 - 999999), (100001 - 673928)	-
-	-	1	Valve Kit, Electrical Midstack SCV, W/ 2 Functions, W/ Front Hitch, Attachment (127156 - 999999), (100001 - 673928)	-
-	-	1	Plugs, Mechanical SCV / Electrical SCV, W/ 3 Functions	-
-	-	1	Plugs, Mechanical SCV / Electrical SCV, W/ 2 Functions	-
-	-	1	Plug, W/O Pressure Free Return, W/O Front Hitch	-
-	-	1	Oil Lines / Fittings, Single Hydraulic Quick Couplers, Premium Front Hitch, W/ Single Front SCV, W/ 2 Line Hydraulic Trailer Brake	-
-	-	1	Oil Lines / Fittings, Single Hydraulic Quick Couplers, Premium Front Hitch, W/ Single Front SCV	-
-	-	1	Oil Lines / Fittings, Single Hydraulic Quick Couplers, Economy Front Hitch	-
-	-	1	Oil Lines / Fittings, Dual Hydraulic Quick Couplers, Premium Front Hitch, W/ Dual Front SCV, W/ 2 Line Hydraulic Trailer Brake	-
-	-	1	Oil Lines / Fittings, Dual Hydraulic Quick Couplers, Premium Front Hitch, W/ Dual Front SCV	-
-	-	1	Oil Line, Pressure Free Return, Front Hitch, W/ Hydraulic Quick Coupler	-
-	-	1	Oil Line, Pressure Free Return, Front Hitch, W/ Dedicated Valve, W/ Hydraulic Quick Coupler	-
-	-	1	Mounting Parts, Heat Cover, Midstack SCV, W/O Front Hitch	-
-	-	1	Electrical Midstack SCV, W/ 2 Functions	-
-	-	1	Mounting Parts, Heat Cover, Electrical Midstack SCV, W/ Front Hitch	-
-	-	1	Mechanical Midstack SCV, W/ 3 Functions	-
-	-	1	Mechanical Midstack SCV, W/ 2 Functions	-
-	-	1	Label, Hot Surfaces	-
-	-	1	Electro-Hydraulic Midstack SCV, W/ 3 Functions, W/ Front Hitch Control Valve	-
-	-	1	Electrical Midstack SCV, W/ Front Hitch Control Valve	-
-	-	1	Electrical Midstack SCV, W/ Front Hitch Control Valve	-
-	-	1	Electrical Midstack SCV, W/ 3 Functions, W/ Front Hitch Control Valve	-
-	-	1	Electrical Midstack SCV, W/ 3 Functions	-
-	-	1	Electrical Midstack SCV, W/ 3 Functions	-
-	-	1	Electrical Midstack SCV, W/ 2 Functions, W/ Front Hitch Control Valve	-
-	-	1	Electrical Midstack SCV, W/ 2 Functions, W/ Front Hitch Control Valve	-
-	-	1	Electrical Midstack SCV, W/ 2 Functions	-

FIF Hydraulic Couplers, Front Implement

Нет текстового описания
