Front Valve Housing and Valve, PowrQuad™, W/ Mechanical Reverser Control

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L171152	1	Spring	-
2	R107768	1	Drain Plug	-
3	R331511	1	Housing	-
4	R95081	2	Valve	-
5	R95084	1	Spring	-
6	51M7045	1	O-Ring	19.300 X 2.200 mm
7	AL217065	1	Fitting Plug	-
8	R116040	1	Spring	-
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	RE46685	4	Fitting Plug	-
11	R341957	1	Gasket	-
12	R167722	1	Cover	-
13	L156151	3	Screw	-
14	AR103873	1	Seal	-
15	R184115	1	Shaft	-
16	R199893	1	Lever	-
17	34M3857	1	Spring Pin	5 X 24 mm
18	L154134	1	Holder	-
19	L158312	4	Cap Screw	-
20	19M7775	4	Screw	M6 X 16
21	R186903	1	Cover	-
22	R341956	1	Gasket	-
23	L41384	1	Pipe Plug	-
24	R129184	1	Compression Spring	-
25	R167684	1	Spool Valve	-
26	R224445	1	Spool	-
27	R192193	1	Pin Fastener	-
28	40M7251	1	Snap Ring	-
29	R197326	1	Lever	-
30	H63237	1	Snap Ring	-
31	R95086	1	Spool Valve	-
32	T23853	1	Spring	-
33	R28776	1	O-Ring	-
34	R134141	1	Valve	-
35	P51079	1	O-Ring	-
36	R112977	1	Seal	-
37	R107770	4	Fitting Plug	-
38	R95355	1	Spring	-
39	R104728	1	O-Ring	-
40	R87455	1	Plug	-
41	40M1857	1	Snap Ring	-
42	R42849	1	Ball	-
43	51M7042	2	O-Ring	13.300 X 2.200 mm
44	R202861	1	Fitting Plug	-
45	R109067	33	Screw	-
46	34M5028	2	Spring Pin	5 X 12 mm
47	R95077	1	Spring	-
48	R95076	1	Valve	-
49	R109066	3	Screw	-
50	51M7041	2	O-Ring	11.300 X 2.200 mm
51	RE46684	1	Fitting Plug	-
52	RE46534	1	Switch	-
53	R113419	1	Adapter Fitting	-
54	51M7040	1	O-Ring	9.300 X 2.200 mm
55	R34028	1	Bolt	-
56	R27976	1	O-Ring	-
57	RE39354	1	Seal	-
58	AL80099	1	Hydr. Quick Coupler Plug	-
59	R77175	1	Cover	-
60	R112945	1	Elbow Fitting	-
61	RE212870	1	Trans Oil Pressure Sensor	-
62	R95353	1	Compression Spring	-
63	R95354	1	Compression Spring	-
64	R121580	1	Pipe Plug	-

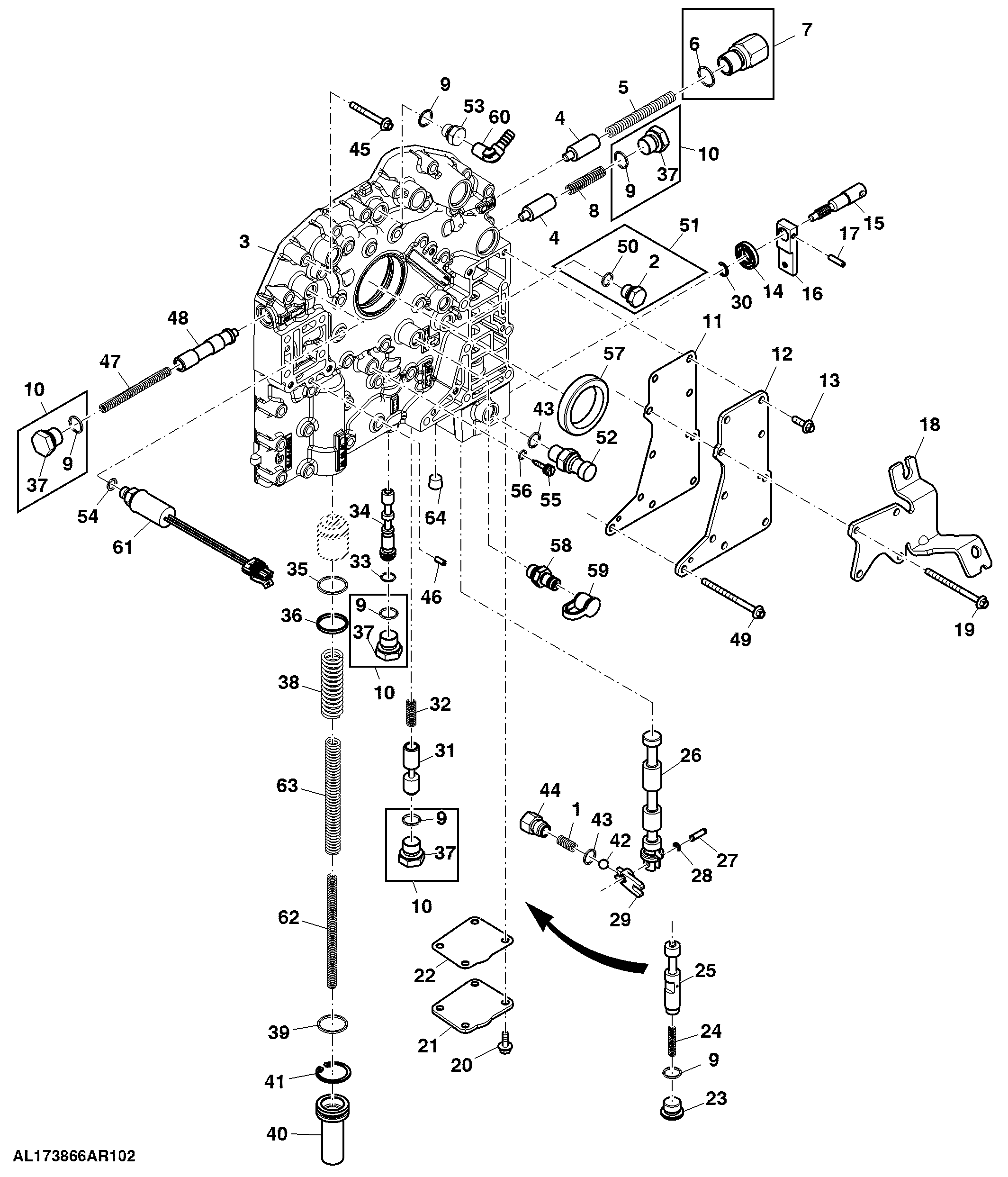

Front Valve Housing and Valve, PowrQuad™, W/ Mechanical Reverser Control
