Открытый узел

Pinion Shaft, High-Low Countershaft, PowrReverser™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SU28989	1	Support	Quill Countershaft
2	P50631	1	O-Ring	-
3	H155964	1	O-Ring	-
4	SU37868	1	Washer	-
5	F37030244G	3	O-Ring	-
6	A31799	1	Back-Up Ring	-
7	F7400011D	3	Ball	-
8	19M8499	4	Cap Screw	M10 X 60
9	SU33502	1	Helical Gear	Z = 32
10	F81743	1	Snap Ring	-
11	YZ91495	2	Washer	-
12	SU34147	1	Hub	Z = 52, Low
13	YZ92021	14	Plate	Separator
14	YZ91228	2	Dowel Pin	-
15	YZ106300	1	Sealing Ring	-
16	SU37191	1	Pin	-
17	YZ91380	1	Snap Ring	-
18	4003725	12	Disk Spring	-
19	F37030224	1	O-Ring	-
20	R112224	1	Snap Ring	-
21	YZ91337	1	Thrust Washer	-
22	RE330849	1	Sensor	Transmission Speed Sensor
23	SU29342	2	Ball Bearing	-
24	SU32990	1	Helical Gear	Z = 28 / 57
25	F37040326	1	O-Ring	-
26	SU34217	2	Piston	Clutch
27	YZ91920	2	Tapered Roller Bearing	-
28	YZ250161	4	Seal	-
29	YZ107137	1	Retainer	-
30	YZ91404	1	Ball Bearing	-
31	F37020144	2	O-Ring	-
32	19M7402	2	Cap Screw	M10 X 25
33	SU54307	1	Hub	Z = 52, Reverse SUB FOR SU34148
34	B15646	1	O-Ring	-
35	SU34121	14	Clutch Plate	-
36	F40112	1	Ball Bearing	-
37	YZ92025	1	Ball Bearing	-
38	SU34146	1	Drum	-
38	SU60368	1	Drum	-
39	SU54248	1	Countershaft	LGTH = 446 mm, Z = 27 / 28, Hi-Low PowrReverser™ SUB FOR SU34150
40	YZ150065	1	Bearing	-
41	SU34149	1	Shaft	Z = 21 / 49 / 52 /54, Top Shaft
42	SU36980	1	Plate	Power Reverser Support
43	YZ150119	2	Seal	-
44	YZ100523	1	Snap Ring	-
45	24M7152	1	Shim	TK = 0.1 mm
46	24M7166	1	Shim	TK = 0.3 mm
47	24M7169	2	Shim	TK = 0.5 mm
48	19M7873	1	Screw	M8 X 110
49	F37020154	4	O-Ring	-
50	YZ92022	2	Retainer	-
51	YZ92020	2	Snap Ring	-
52	F81974	4	Snap Ring	-
53	40M7117	1	Snap Ring	-
54	YZ92004	1	Seal	-
55	YZ92058	1	Shim Kit	-

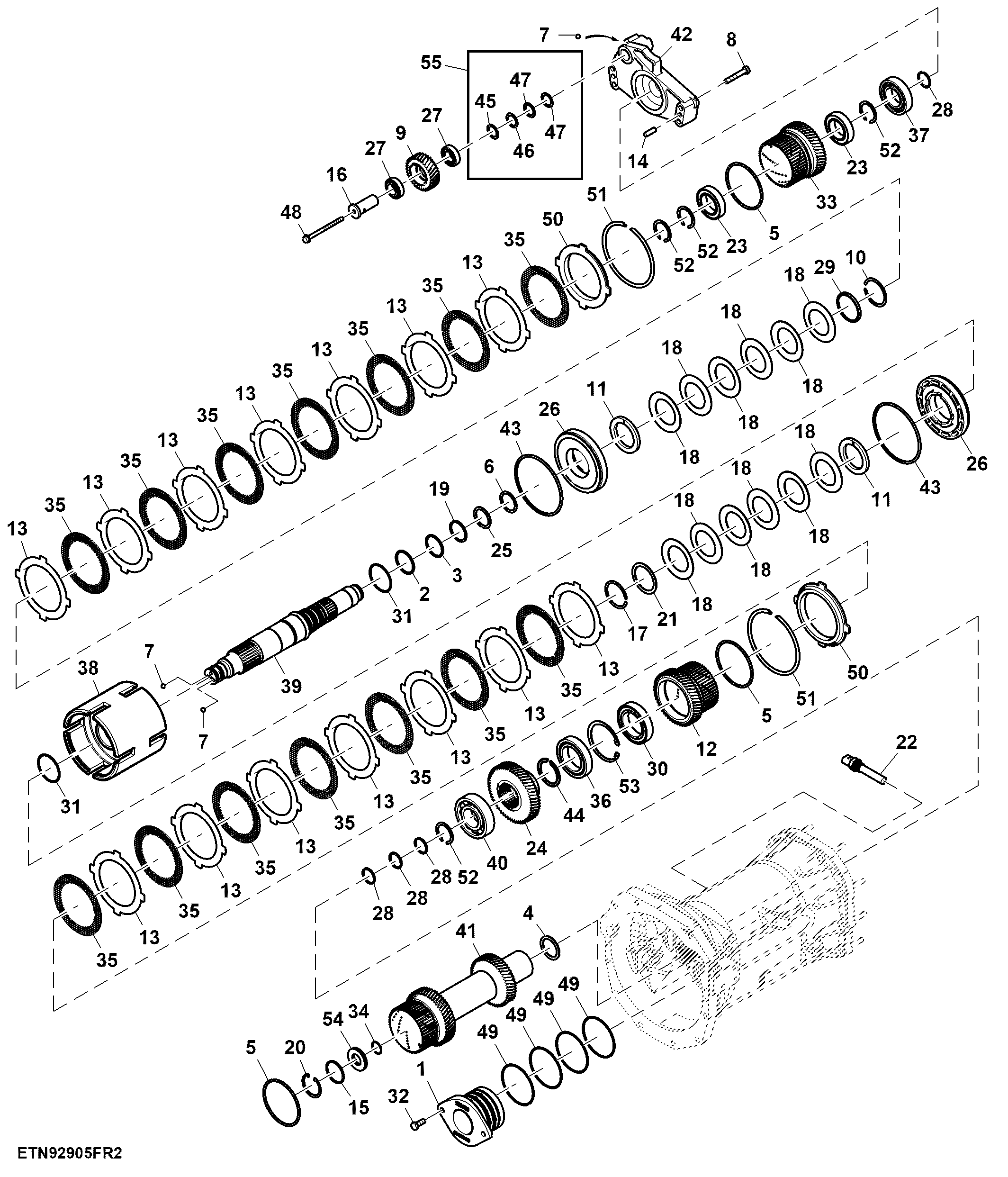

Pinion Shaft, High-Low Countershaft, PowrReverser™

Нет текстового описания
