21 Engine 6068HCP01-DZ100210-ETN127272

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание

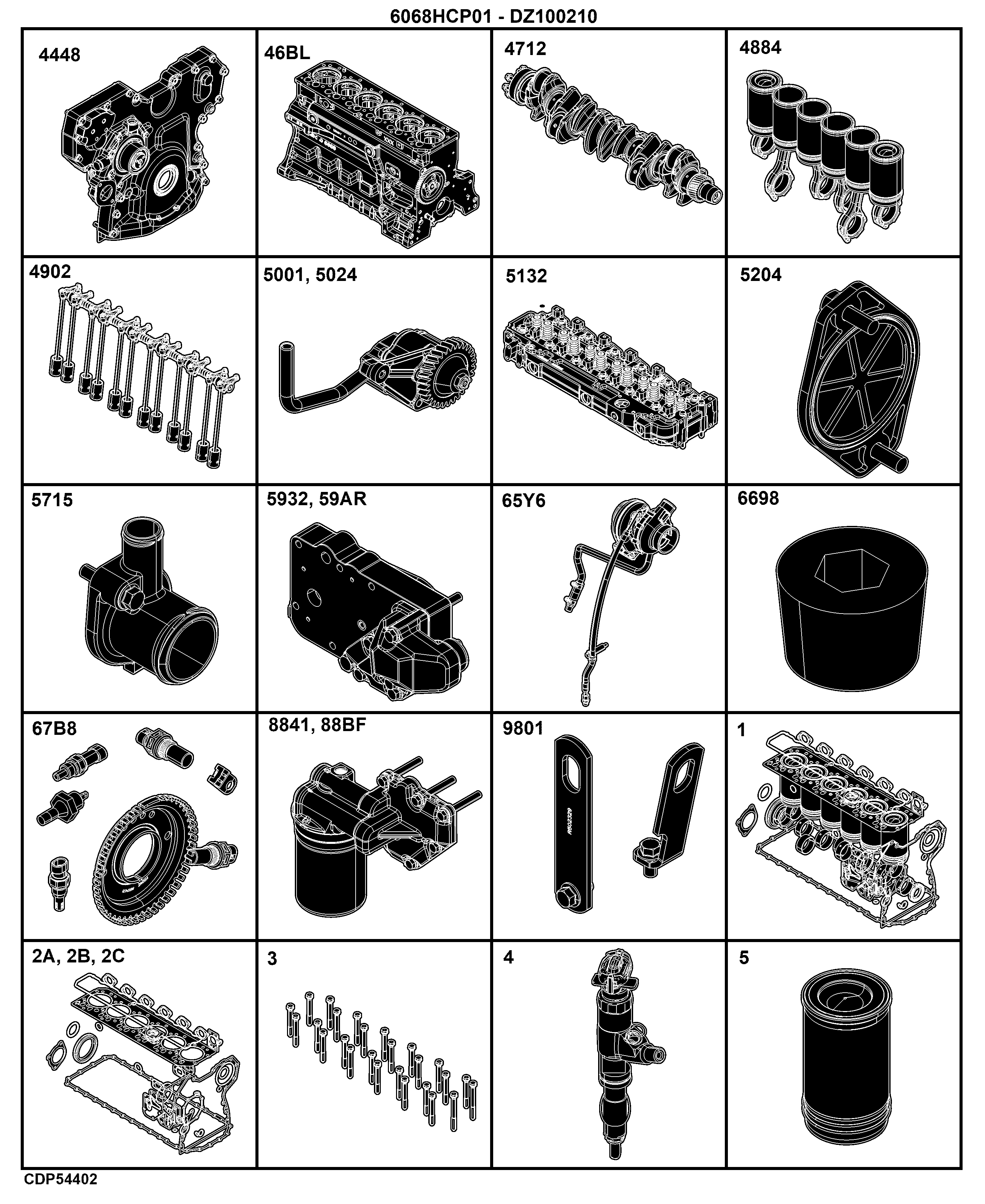

-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	5024 Engine Oil Pump (010715 - )	-
-	-	1	5132 Cylinder Head	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5715 Water Pump Inlet	-
-	-	1	5932 Engine Oil Cooler ( - 005994)	-
-	-	1	59AR Engine Oil Cooler (005995 - )	-
-	-	1	65Y6 Turbocharger	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	67B8 Engine Sensors	-
-	-	1	8841 Engine Oil Filter ( - XXXXXX)	-
-	-	1	88BF Engine Oil Filter (XXXXXX - )	-
-	-	1	9801 Lift Straps	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	5001 Engine Oil Pump ( - 010714)	-
-	-	1	9901 Cylinder Head Bolt Kit	-

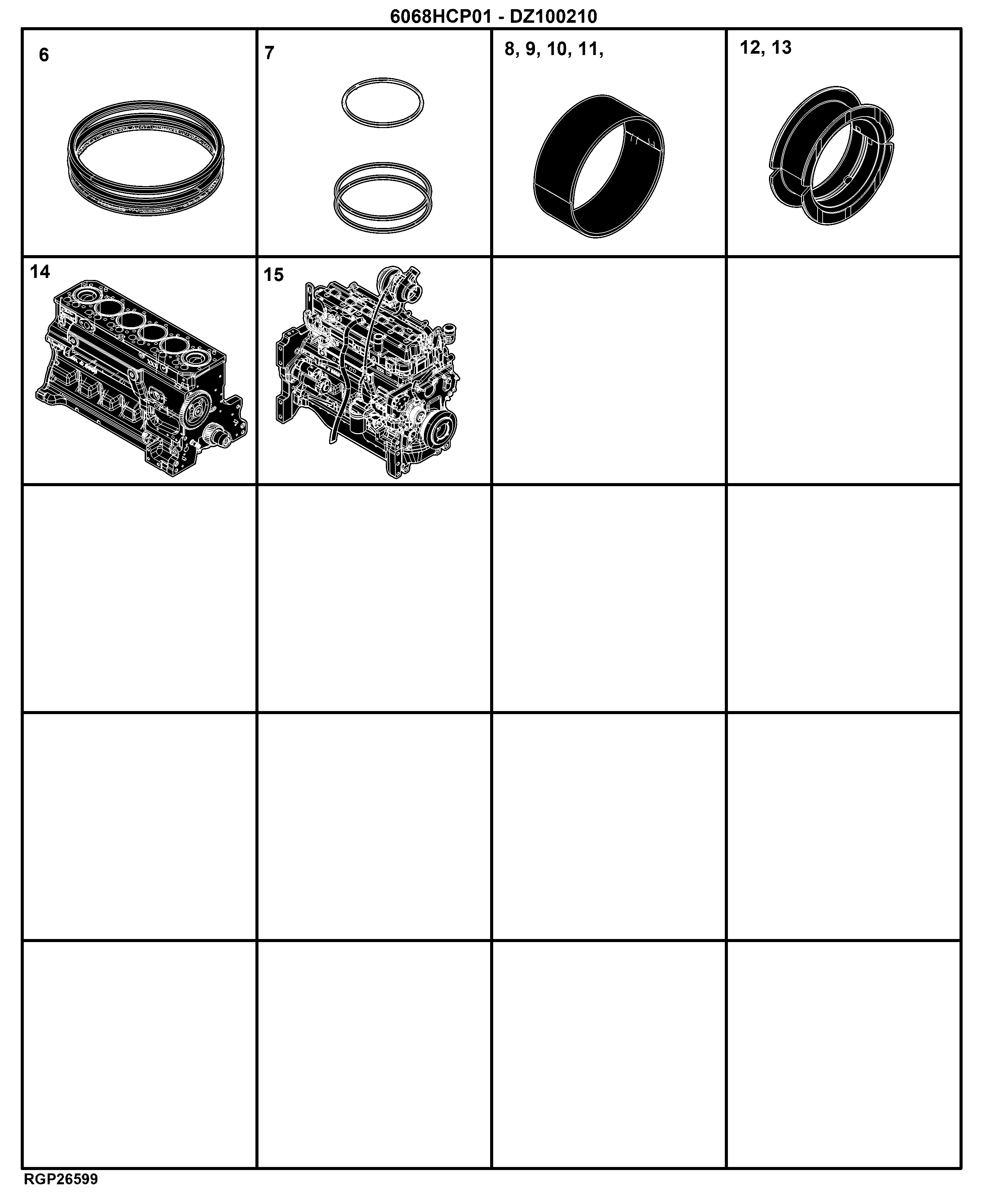

-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Overhaul Gasket Kit (1/3)	-
-	-	1	9901 Overhaul Gasket Kit (2/3)	-
-	-	1	9901 Overhaul Gasket Kit (3/3)	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-

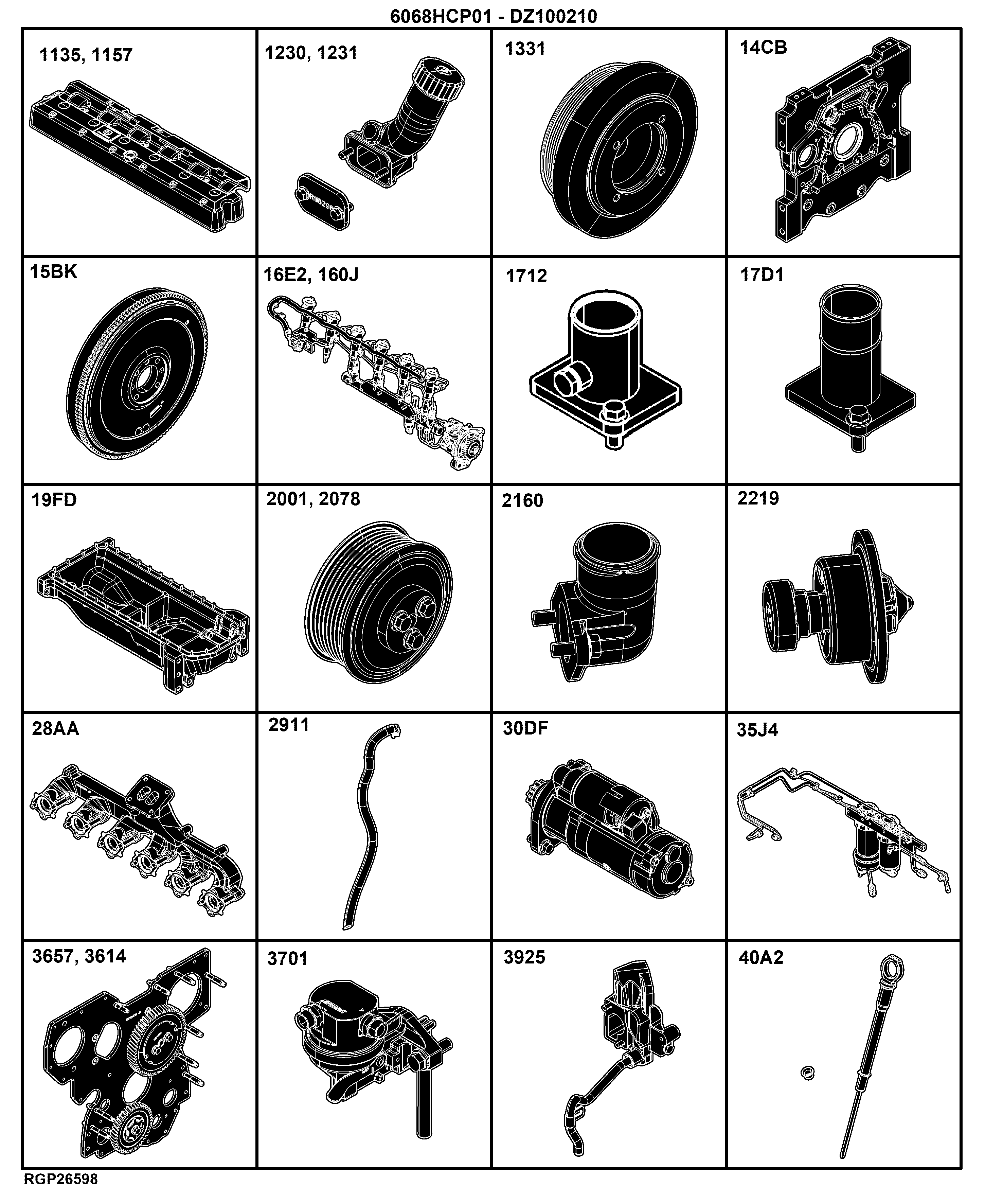

-	-	1	2219 Engine Thermostat	-
-	-	1	1157 Valve Cover (XXXXXX - )	-
-	-	1	1230 Oil Filler Neck ( - 001090)	-
-	-	1	1231 Oil Filler Neck (001091 - )	-
-	-	1	1331 Crankshaft Pulley and Damper	-
-	-	1	14CB Flywheel Housing	-
-	-	1	15BK Flywheel	-
-	-	1	160J Fuel Injection System (005109 - )	-
-	-	1	16E2 Fuel Injection System ( - 005108)	-
-	-	1	1712 Air Intake ( - 006352)	-
-	-	1	17D1 Air Intake (006353 - )	-
-	-	1	19FD Oil Pan	-
-	-	1	2001 Water Pump Pulley ( - 000707)	-
-	-	1	2078 Water Pump Pulley (000708 - )	-
-	-	1	2160 Thermostat Cover	-
-	-	1	1135 Valve Cover ( - XXXXXX)	-
-	-	1	28AA Exhaust Manifold	-
-	-	1	2911 Ventilating System	-
-	-	1	30DF Starter Motor	-
-	-	1	35J4 Fuel Filter	-
-	-	1	3614 Front Plate (008474 - )	-
-	-	1	3657 Front Plate ( - 008473)	-
-	-	1	3701 Fuel Transfer Pump	-
-	-	1	3925 Thermostat Housing	-
-	-	1	40A2 Engine Oil Dipstick	-
-	-	1	4448 Timing Gear Cover and Water Pump	-
-	-	1	46BL Cylinder Block	-
-	-	1	4712 Crankshaft and Bearings	-
-	-	1	4884 Engine Piston, Cylinder Liner, Connecting Rods and Bearings	-
-	-	1	4902 Valve Actuating Mechanism	-

21 Engine 6068HCP01-DZ100210-ETN127272

Нет текстового описания
