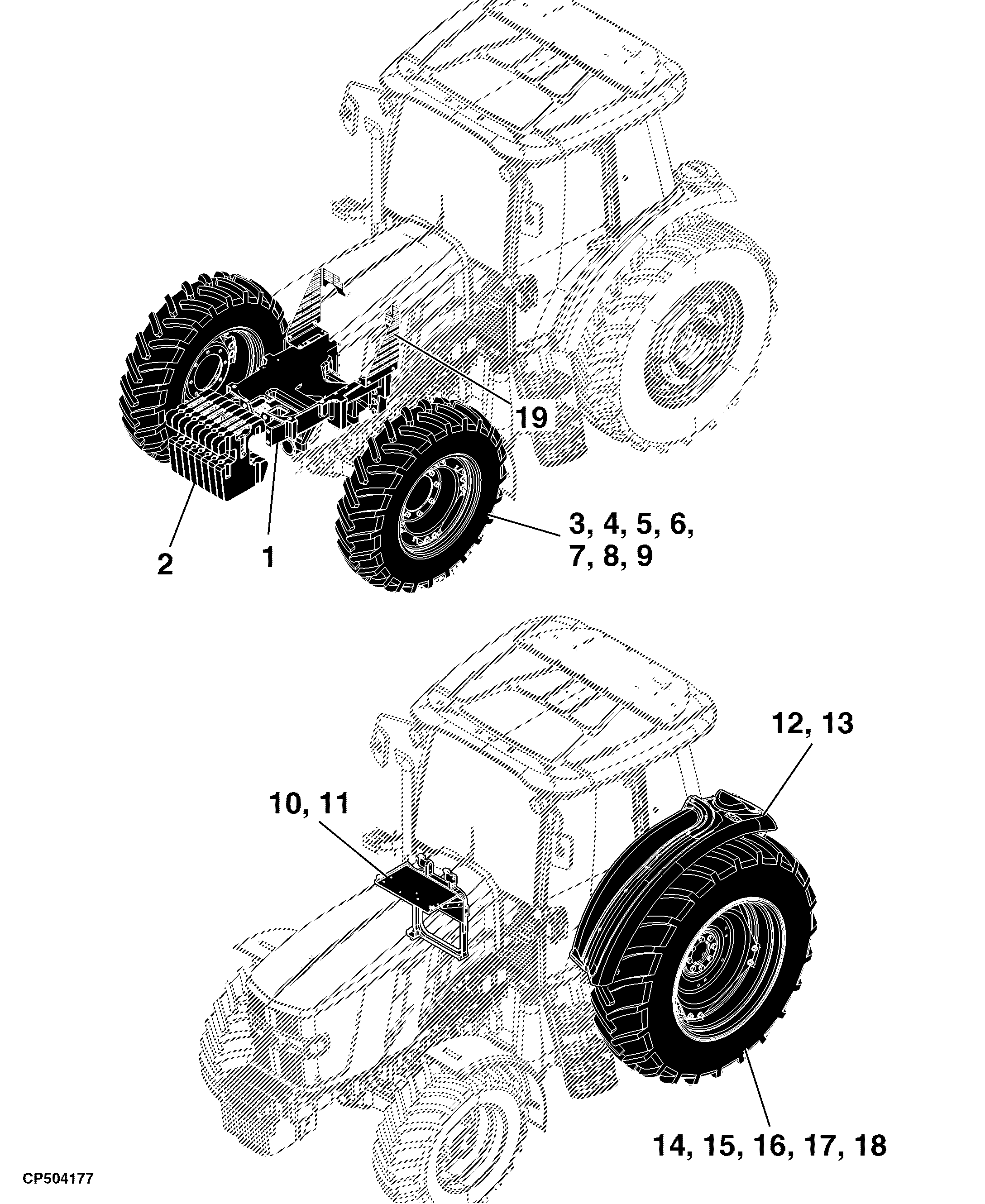

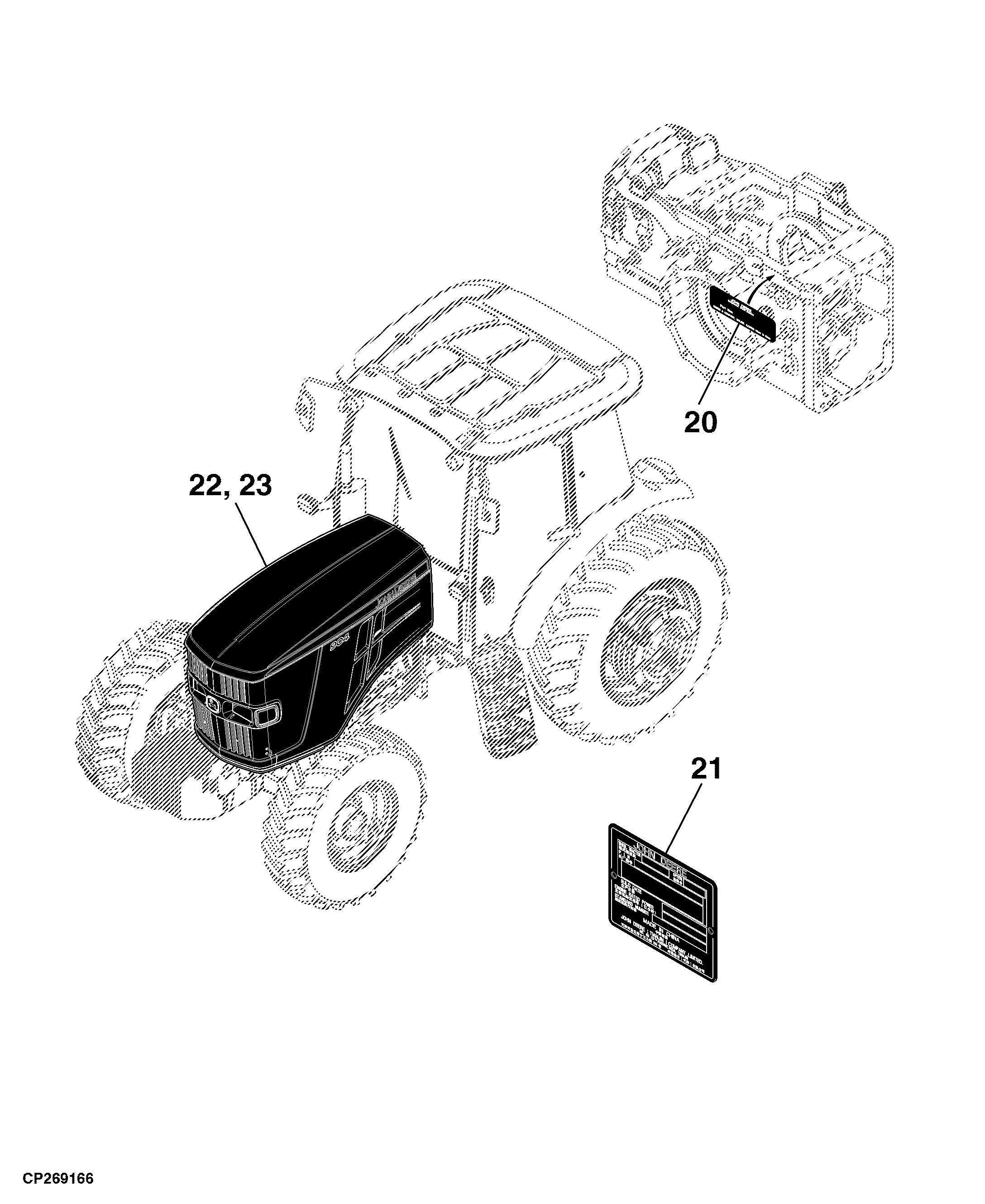

80 Wheels, Non-Powered Axles, Sheetmetal

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Hood	-
-	-	1	Tire and Wheel Assembly, Liquid, Front	-
-	-	1	Rear Wheels, Tire W16.9 X D34, W/O Liquid Ballast	-
-	-	1	Rear Wheels, Rim W15 X D34, Tire W16.9 X D34, Paddy	-
-	-	1	Rear Wheels, Rim W15 X D34, Tire 16.9-34	-
-	-	1	Rear Wheels, Rim DW15 L X 34, Tire 18.4-34	-
-	-	1	Rear Wheel Weights, 2 X 55 kg	-
-	-	1	Rear Wheel Weight , 55 kg, 8 Pieces	-
-	-	1	Rear Wheel Mounting Parts	-
-	-	1	Rear Fender	-
-	-	1	Plug, Slow Moving Vehicle Sign	-
-	-	1	Plug, License Plate	-
-	-	1	Mounting Parts, Transmission Serial Number Plate	-
-	-	1	Hood, Short Wheel Base	-
-	-	1	Hood Support, Short Wheel Base	-
-	-	1	Hood Support Bracket, Short Wheel Base	-
-	-	1	Cab Frame, Apollo Stage III, W/O Heater	-
-	-	1	Guard, Short Wheel Base	-
-	-	1	Front Wheels, W12 X D24	-
-	-	1	Front Wheels, Rim W12 X 24, Tire 13.6-24, Nylon	-
-	-	1	Front Wheels, Rim W12 X 24, Tire 13.6-24, Liquid	-
-	-	1	Front Wheels, Rim W10 X D24, Tire W11.2 X D24, Paddy	-
-	-	1	Front Wheels, Rim W10 X D24, Tire 11.2-24, Paddy	-
-	-	1	Front Wheels, Rim W10 X 24, Tire 12.4-24, Nylon	-
-	-	1	Front Wheels, Rim W10 X 24, Tire 12.4-24	-
-	-	1	Front Wheels	-
-	-	1	Front Wheel Mountings	-
-	-	1	Front Weight, 8 Pieces	-
-	-	1	Front Weight Support, Optional	-
-	-	1	Fan Guard, W/ PTE	-
-	-	1	Environmental Information Plate	-

80 Wheels, Non-Powered Axles, Sheetmetal

Нет текстового описания
