Открытый узел

20 Engine 4045HCP04-RE551734

20 Engine 4045HCP04-RE551734

20 Engine 4045HCP04-RE551734

20 Engine 4045HCP04-RE551734

20 Engine 4045HCP04-RE551734

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 Engine 4045HCP04-RE551734

Нет текстового описания

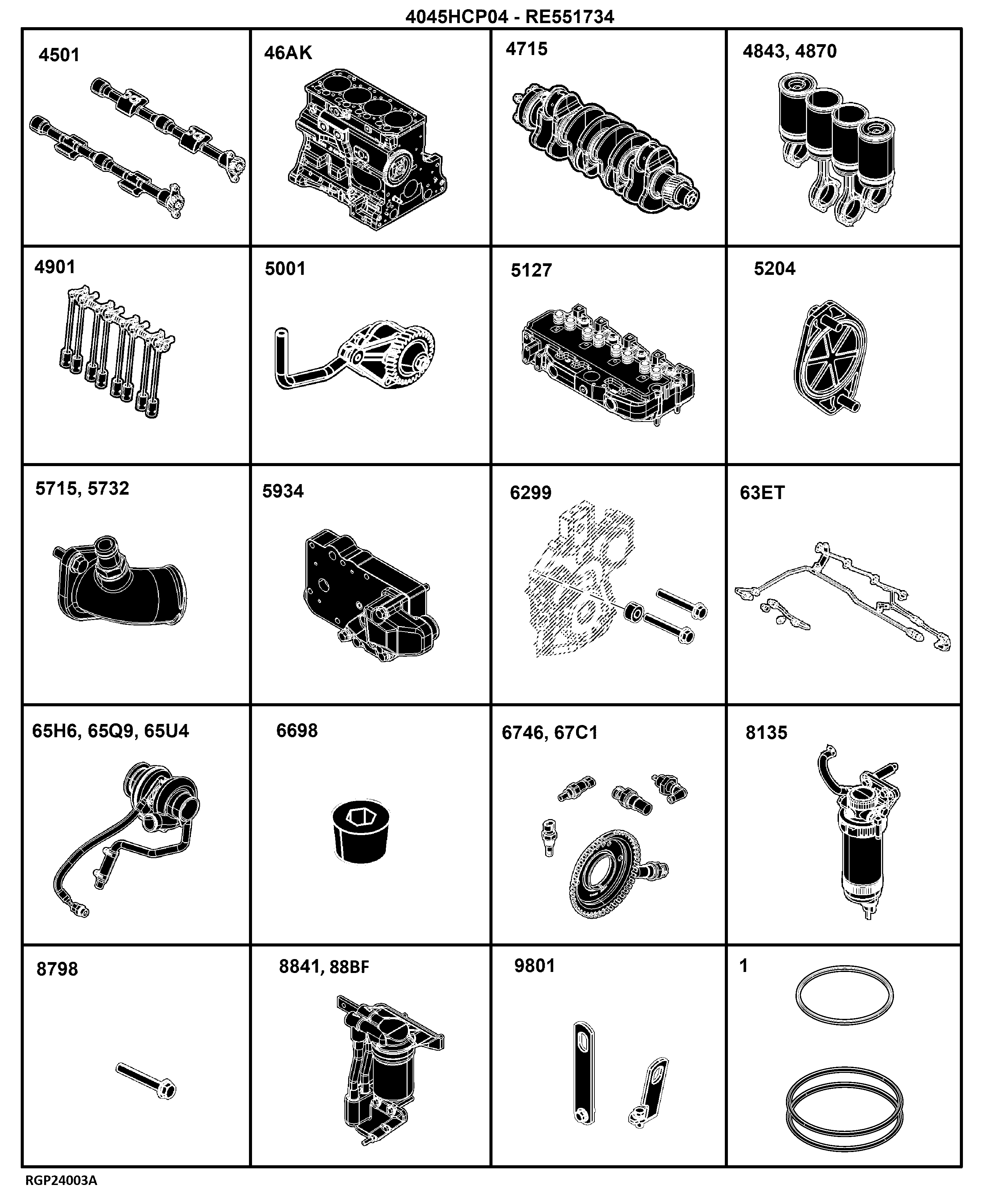

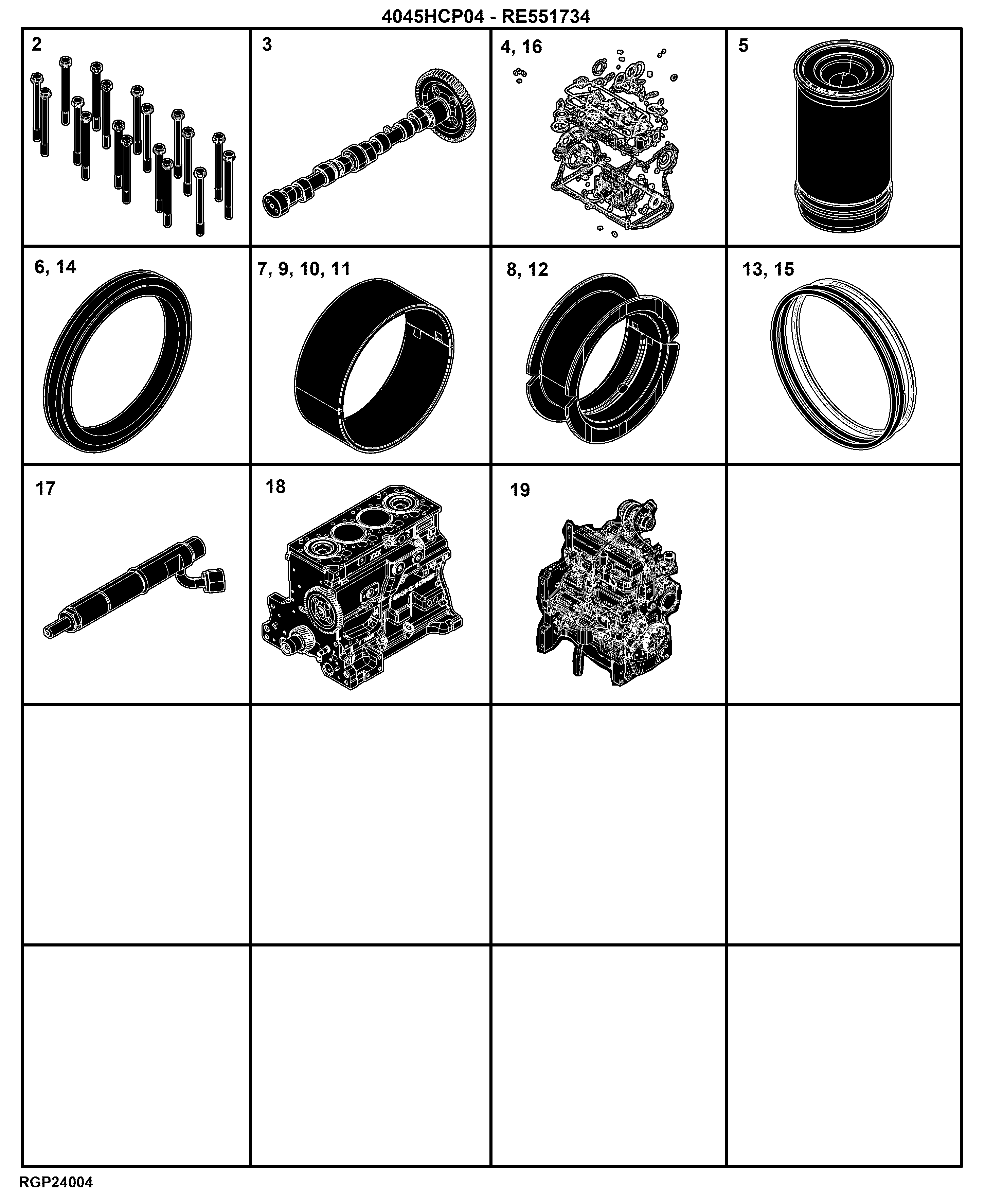

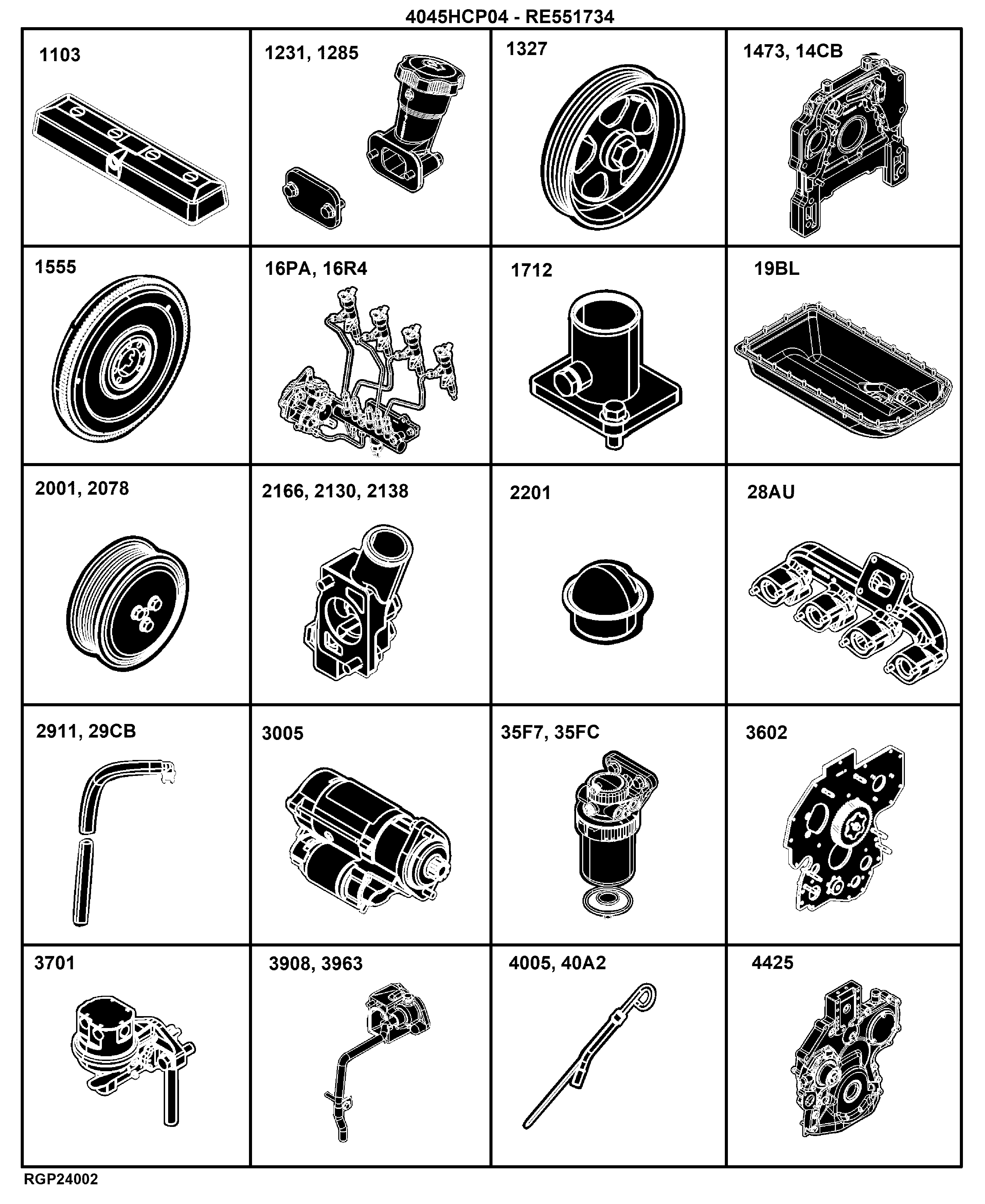

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	65U4 Turbocharger (000988 - )	-
-	-	1	9901 Camshaft Kit	-
-	-	1	9801 Lift Straps	-
-	-	1	88BF Engine Oil Filter (031129 - )	-
-	-	1	8841 Engine Oil Filter ( - 031128)	-
-	-	1	8798 Belt Tensioner	-
-	-	1	8135 Primary Fuel Filter	-
-	-	1	67C1 Engine Sensors (000988 - )	-
-	-	1	6746 Engine Sensors ( - 000987)	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	65Q9 Turbocharger (000145 - ), ( - 000987)	-
-	-	1	65H6 Turbocharger ( - 000144)	-
-	-	1	63ET Low Pressure Fuel Lines	-
-	-	1	6299 Alternator Mounting Hardware	-
-	-	1	5934 Engine Oil Cooler	-
-	-	1	5732 Water Pump Inlet (000145 - )	-
-	-	1	5715 Water Pump Inlet ( - 000144)	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Short Block Assembly Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Rear Oil Seal	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	5127 Cylinder Head and Valves	-
-	-	1	9901 O-Ring Kit, Cylinder Liner	-
-	-	1	9901 Injection Nozzle Kit	-
-	-	1	9901 Front Oil Seal	-
-	-	1	9901 Engine Overhaul Gasket Kit	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Cylinder Head Bolts Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	1712 Air Intake	-
-	-	1	2911 Ventilating System ( - 000987)	-
-	-	1	28AU Exhaust Manifold	-
-	-	1	2201 Engine Thermostat	-
-	-	1	2166 Thermostat Cover ( - 000144)	-
-	-	1	2138 Thermostat Cover (000988 - )	-
-	-	1	2130 Thermostat Cover (000145 - ), ( - 000987)	-
-	-	1	2078 Water Pump Pulley (001215 - )	-
-	-	1	2001 Water Pump Pulley ( - 001214)	-
-	-	1	19BL Oil Pan	-
-	-	1	29CB Ventilating System (000988 - )	-
-	-	1	16R4 Fuel Injection System ( - 000144)	-
-	-	1	16PA Fuel Injection System (000145 - )	-
-	-	1	1555 Flywheel	-
-	-	1	14CB Flywheel Housing (001475 - )	-
-	-	1	1473 Flywheel Housing ( - 001474)	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1285 Oil Filler Neck (016910 - )	-
-	-	1	1231 Oil Filler Neck ( - 016909)	-
-	-	1	40A2 Engine Oil Dipstick (003576 - )	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	4870 Connecting Rods and Pistons	-
-	-	1	4843 Connecting Rods and Pistons ( - 001310)	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	46AK Cylinder Block	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4425 Timing Gear Cover and Water Pump	-
-	-	1	1103 Valve Cover	-
-	-	1	4005 Engine Oil Dipstick ( - 003575)	-
-	-	1	3963 Thermostat Housing (000988 - )	-
-	-	1	3908 Thermostat Housing ( - 000987)	-
-	-	1	3701 Fuel Transfer Pump	-
-	-	1	3602 Front Plate	-
-	-	1	35FC Fuel Filter ( - 008103)	-
-	-	1	35F7 Fuel Filter (008104 - )	-
-	-	1	3005 Starter Motor	-
