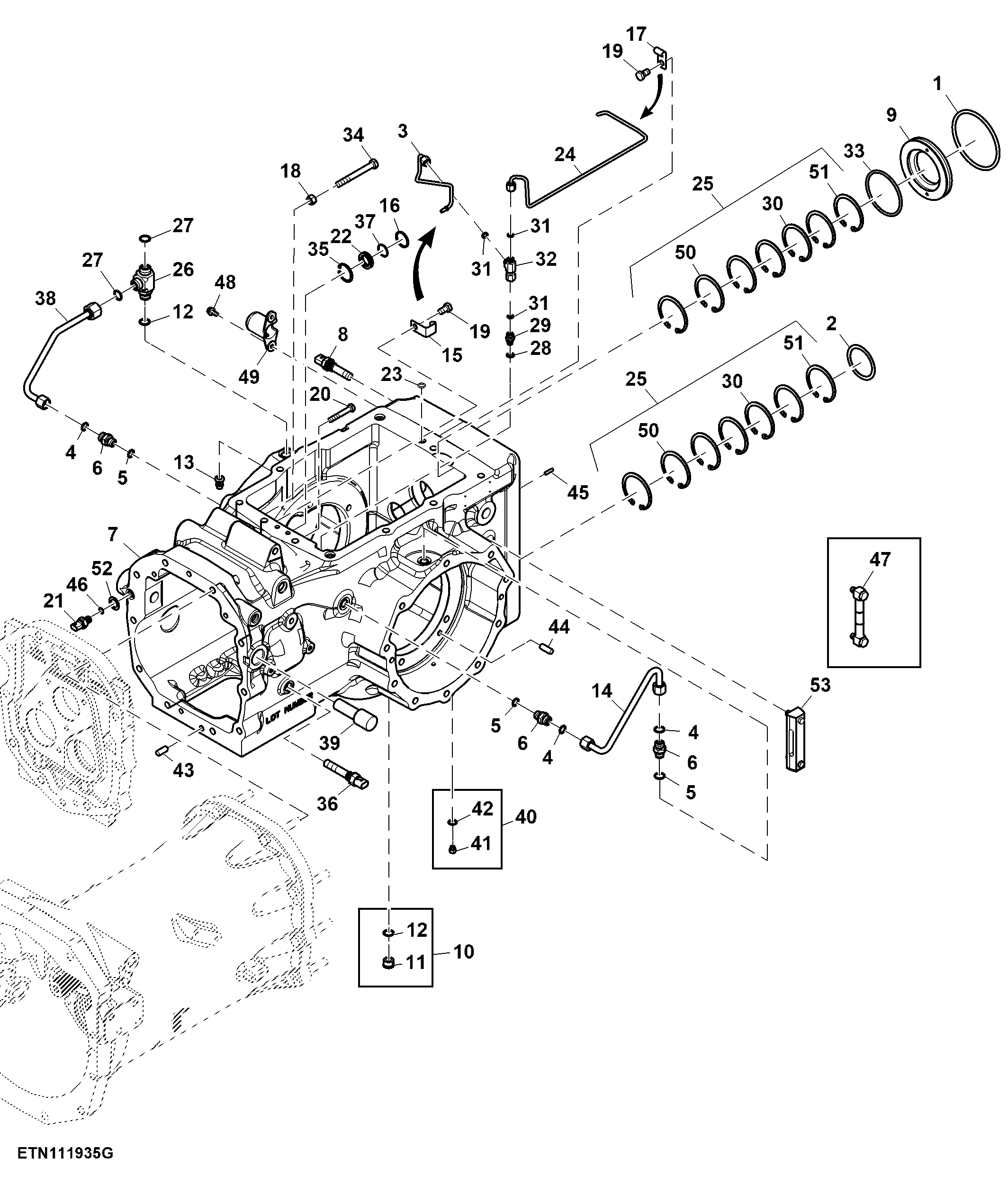

Transmission Housing, W/ Electro Hydraulic, MFWD (040960 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	YZ91978	1	O-Ring	-
2	SU30403	1	Washer	-
3	SU35810	1	Oil Tube	3 Stage Supply
4	T77857	3	O-Ring	-
5	51M7043	3	O-Ring	15.300 X 2.200 mm
6	38H5003	3	Adapter Fitting	-
7	SU58368	1	Housing	SUB FOR SU54685
8	RE330848	1	Wheel Speed Sensor	PTO Speed Sensor
9	SU34010	1	Piston	-
10	RE221098	2	Drain Plug	-
11	RE225643	2	Drain Plug	-
12	51M7045	3	O-Ring	19.300 X 2.200 mm
13	YZ90793	1	Pressure Relief Valve	-
14	RE171168	1	Oil Line	-
15	YZ91807	1	Clamp	-
16	YZ250161	1	Seal	-
17	YZ91830	2	Clamp	-
18	14M7275	1	Nut	M12
19	19M8017	3	Cap Screw	M12 X 20
20	19M8498	5	Cap Screw	M10 X 65
21	RE12411	1	Switch	Neutral
22	YZ90271	1	Piston	-
23	R394R	1	O-Ring	-
24	YZ91825	1	Oil Tube	Pump Gear Mesh
25	YZ90707	2	Snap Ring	-
26	38H5030	1	Tee Fitting	-
27	T77932	2	O-Ring	-
28	51M7040	1	O-Ring	9.300 X 2.200 mm
29	38H5001	1	Adapter Fitting	-
30	40M1872	2	Snap Ring	-
31	T77814	3	O-Ring	-
32	38H1029	1	Tee Fitting	-
33	SU32510	1	O-Ring	-
34	YZ90863	1	Cap Screw	-
35	40M7225	1	Snap Ring	-
36	RE330849	1	Sensor	Transmission Speed Sensor
37	B15646	1	O-Ring	-
38	RE171169	1	Oil Line	-
39	YZ90820	1	Pin Fastener	-
40	RE229293	2	Fitting Plug	-
41	R229294	2	Fitting Plug	-
42	R26287	2	O-Ring	-
43	44M7060	10	Pin	12 X 24 mm
44	44M7092	2	Dowel Pin	-
45	44M7116	2	Dowel Pin	-
46	R26448	1	O-Ring	-
47	RE187450	1	Gauge	LGTH = 146 mm
48	19M7865	2	Screw	M8 X 16
49	SU54262	1	Shield	Speed Sensor
50	YZ90261	2	Snap Ring	ORDER YZ90707
51	YZ90260	2	Snap Ring	ORDER YZ90707
52	SU54779	1	Shim	TK = 0.25 mm
53	SU60296	1	Gauge	LGTH = 157 mm, SUB FOR RE187450

Transmission Housing, W/ Electro Hydraulic, MFWD (040960 - )
