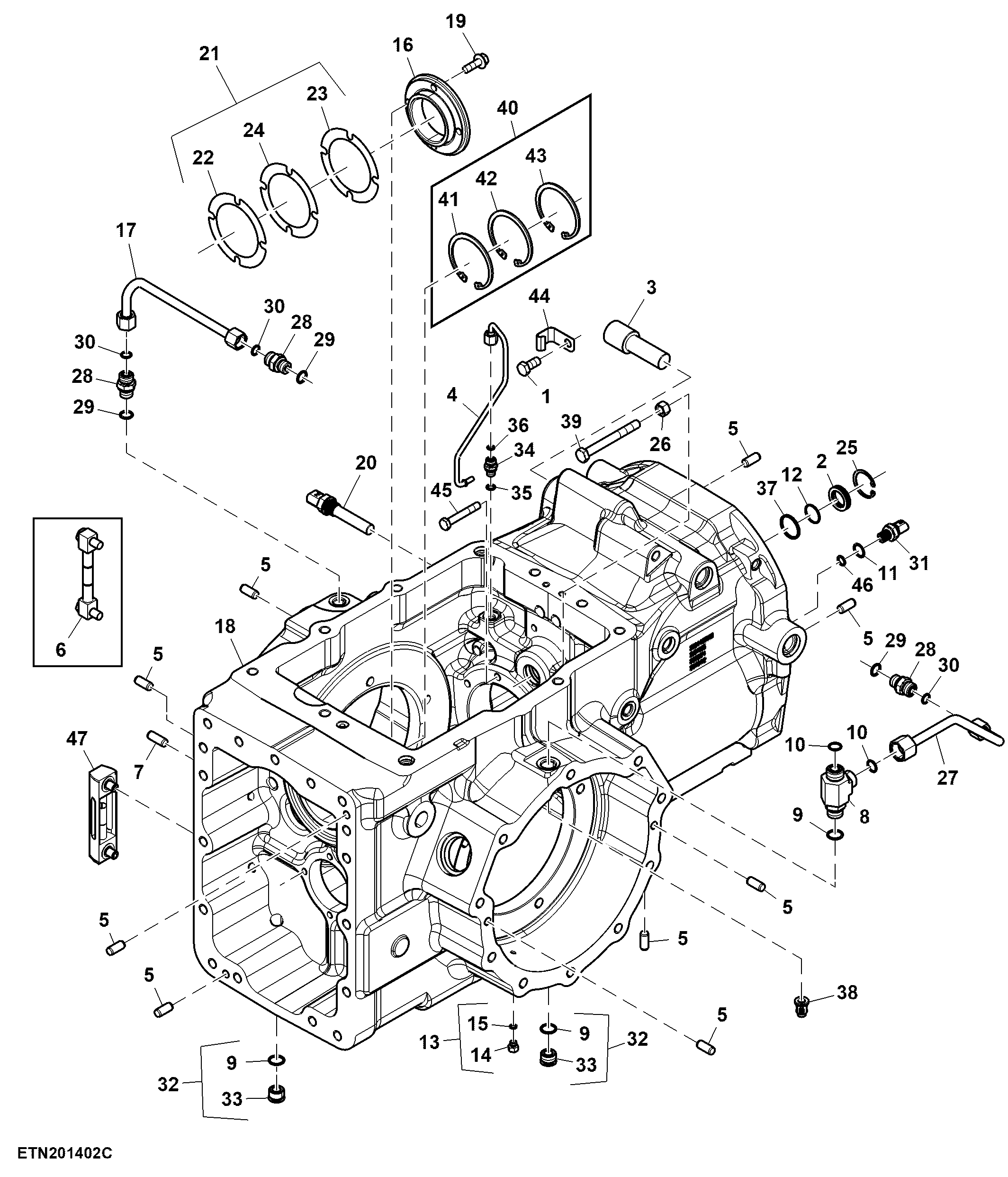

Transmission Housing, Dry Clutch, W/ Creeper

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7872	1	Cap Screw	M12 X 25
2	YZ90271	1	Piston	Seal Carrier
3	YZ90820	1	Pin Fastener	-
4	SJ16097	1	Oil Tube	Supply
5	44M7060	10	Pin	12 X 24 mm
6	RE187450	1	Gauge	LGTH = 146 mm
7	44M7092	2	Dowel Pin	-
8	38H5030	1	Tee Fitting	-
9	51M7045	3	O-Ring	19.300 X 2.200 mm
10	T77932	2	O-Ring	-
11	SU54779	1	Shim	TK = 0.25 mm
12	B15646	1	O-Ring	-
13	RE229293	2	Fitting Plug	-
14	R229294	2	Fitting Plug	-
15	R26287	2	O-Ring	-
16	SU55879	1	Bearing Cap	-
17	RE171168	1	Oil Line	-
18	SU58370	1	Housing	Transmission Housing, Dry Clutch
19	19M7786	4	Screw	M10 X 30
20	RE330849	1	Sensor	Transmission Speed Sensor
21	SJ35175	1	Shim Kit	-
22	SU56024	1	Shim	TK = 0.5 mm, ORDER SJ35175
23	SU55909	1	Shim	TK = 0.1 mm, ORDER SJ35175
24	SU56022	1	Shim	TK = 0.2 mm, ORDER SJ35175
25	40M7225	1	Snap Ring	-
26	14M7275	1	Nut	M12
27	RE171169	1	Oil Line	-
28	38H5003	3	Adapter Fitting	-
29	51M7043	3	O-Ring	15.300 X 2.200 mm
30	T77857	3	O-Ring	-
31	RE12411	1	Switch	Nuetral
32	RE221098	2	Drain Plug	-
33	RE225643	2	Drain Plug	-
34	38H5001	1	Adapter Fitting	-
35	51M7040	1	O-Ring	9.300 X 2.200 mm
36	T77814	1	O-Ring	-
37	YZ250161	1	Seal	-
38	YZ90793	1	Pressure Relief Valve	Pressure Relief Valve
39	YZ90863	1	Cap Screw	-
40	YZ90707	1	Snap Ring	-
41	40M1872	1	Snap Ring	-
42	YZ90260	1	Snap Ring	-
43	YZ90261	1	Snap Ring	-
44	YZ91807	1	Clamp	-
45	19M8498	5	Cap Screw	M10 X 65
46	R26448	1	O-Ring	-
47	SU60296	1	Gauge	LGTH = 157 mm, SUB FOR RE187450
