Открытый узел

20 Engine 4045HCP10-RE555951

20 Engine 4045HCP10-RE555951

20 Engine 4045HCP10-RE555951

20 Engine 4045HCP10-RE555951

20 Engine 4045HCP10-RE555951

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 Engine 4045HCP10-RE555951

Нет текстового описания

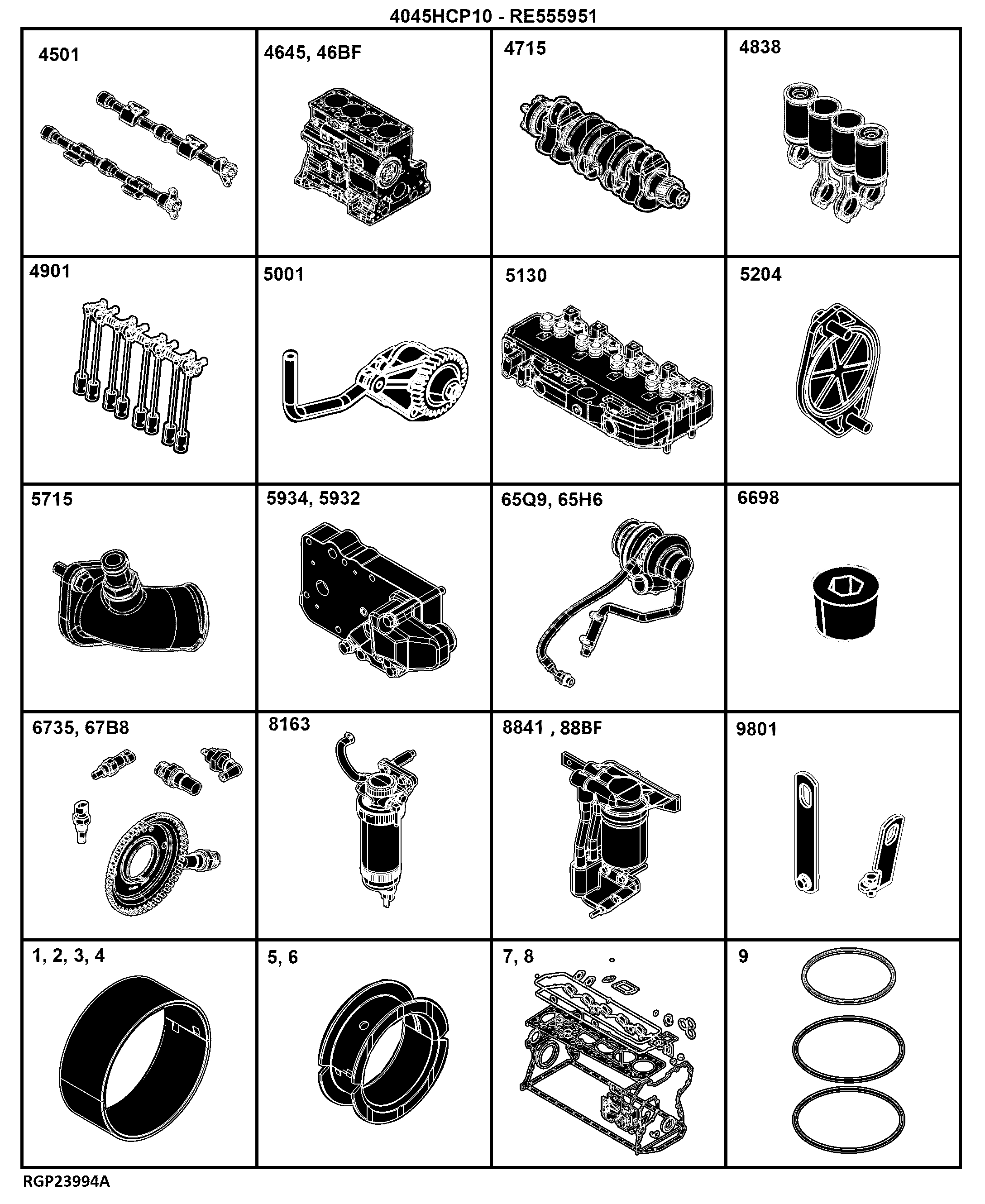

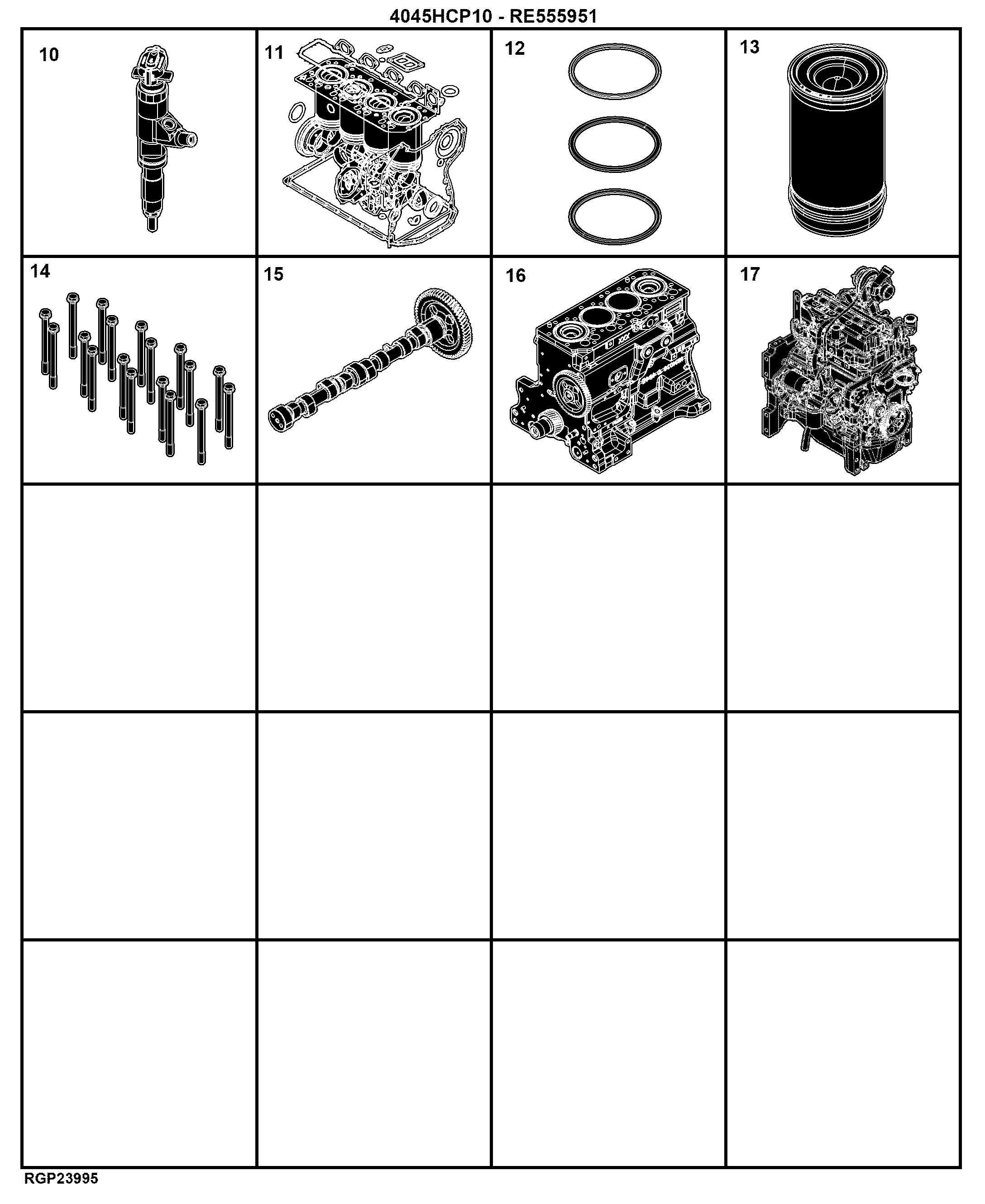

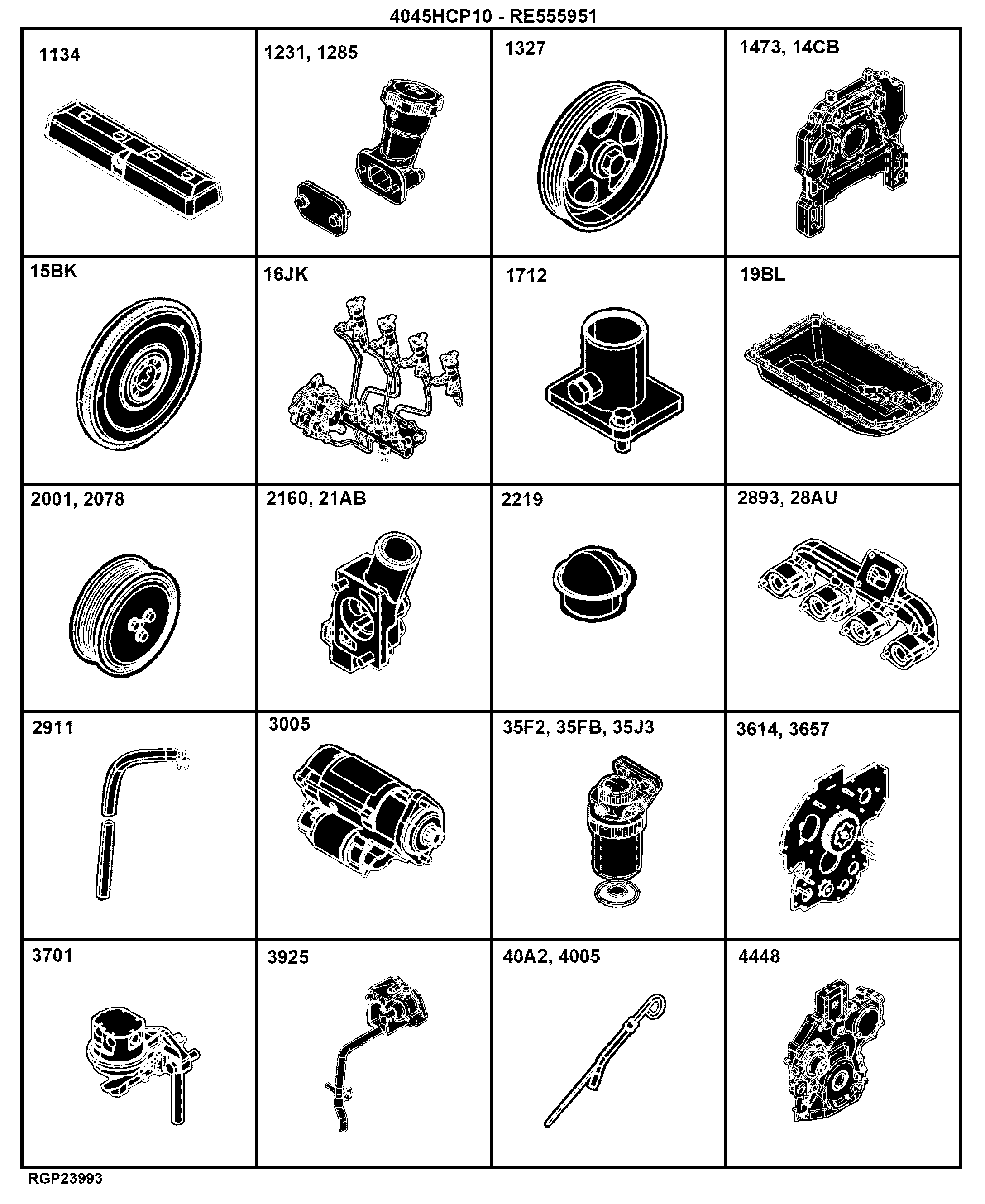

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	65Q9 Turbocharger (000330 - )	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Camshaft Kit	-
-	-	1	9801 Lift Straps	-
-	-	1	88BF Engine Oil Filter (XXXXXX - )	-
-	-	1	8841 Engine Oil Filter ( - XXXXXX)	-
-	-	1	67B8 Engine Sensors (000330 - )	-
-	-	1	6735 Engine Sensors ( - 000329)	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	65H6 Turbocharger ( - 000329)	-
-	-	1	5934 Engine Oil Cooler (000330 - )	-
-	-	1	5932 Engine Oil Cooler ( - 000329)	-
-	-	1	5715 Water Pump Inlet	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5130 Cylinder Head and Valves	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Short Block Assembly Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 O-Ring Kit, Cylinder Liner	-
-	-	1	4871 Connecting Rods and Pistons (000330 - )	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	19BL Oil Pan	-
-	-	1	28AU Exhaust Manifold ( - 000329)	-
-	-	1	2893 Exhaust Manifold (000330 - )	-
-	-	1	2219 Engine Thermostat (000330 - )	-
-	-	1	2201 Engine Thermostat ( - 000329)	-
-	-	1	2160 Thermostat Cover (000330 - )	-
-	-	1	2159 Thermostat Cover ( - 000329)	-
-	-	1	2078 Water Pump Pulley (001258 - )	-
-	-	1	2001 Water Pump Pulley ( - 001179)	-
-	-	1	2911 Ventilating System	-
-	-	1	1712 Air Intake	-
-	-	1	16JK Fuel Injection System	-
-	-	1	15BK Flywheel	-
-	-	1	14CB Flywheel Housing (001521 - )	-
-	-	1	1473 Flywheel Housing ( - 001413)	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1285 Oil Filler Neck (016399 - )	-
-	-	1	1231 Oil Filler Neck ( - 016398)	-
-	-	1	3925 Thermostat Housing	-
-	-	1	4838 Connecting Rods and Pistons ( - 000329)	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	46BF Cylinder Block (002354 - )	-
-	-	1	4645 Cylinder Block ( - 002094)	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4448 Timing Gear Cover and Water Pump	-
-	-	1	40A2 Engine Oil Dipstick (003544 - )	-
-	-	1	4005 Engine Oil Dipstick ( - 002645)	-
-	-	1	1134 Valve Cover	-
-	-	1	3701 Fuel Transfer Pump	-
-	-	1	3657 Front Plate (016533 - 030277)	-
-	-	1	3614 Front Plate ( - 016532), (030278 - )	-
-	-	1	35J3 Fuel Filter (XXXXXX - )	-
-	-	1	35FB Fuel Filter ( - 002645)	-
-	-	1	35F2 Fuel Filter ( - XXXXXX), (003544 - )	-
-	-	1	3005 Starter Motor	-
