Открытый узел

21 Diesel Engine 4045HCP05-DZ10969

21 Diesel Engine 4045HCP05-DZ10969

21 Diesel Engine 4045HCP05-DZ10969

21 Diesel Engine 4045HCP05-DZ10969

21 Diesel Engine 4045HCP05-DZ10969

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

21 Diesel Engine 4045HCP05-DZ10969

Нет текстового описания

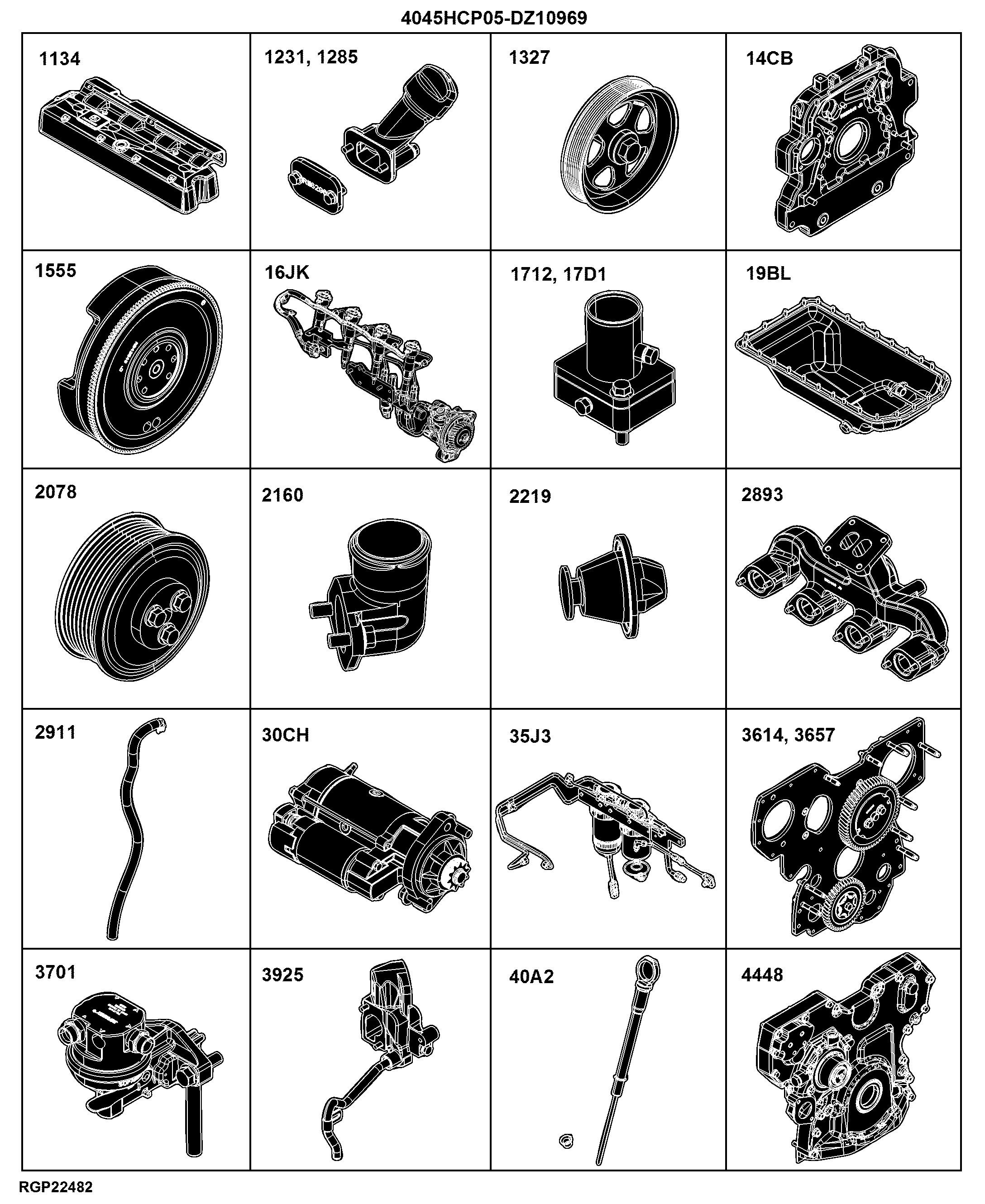

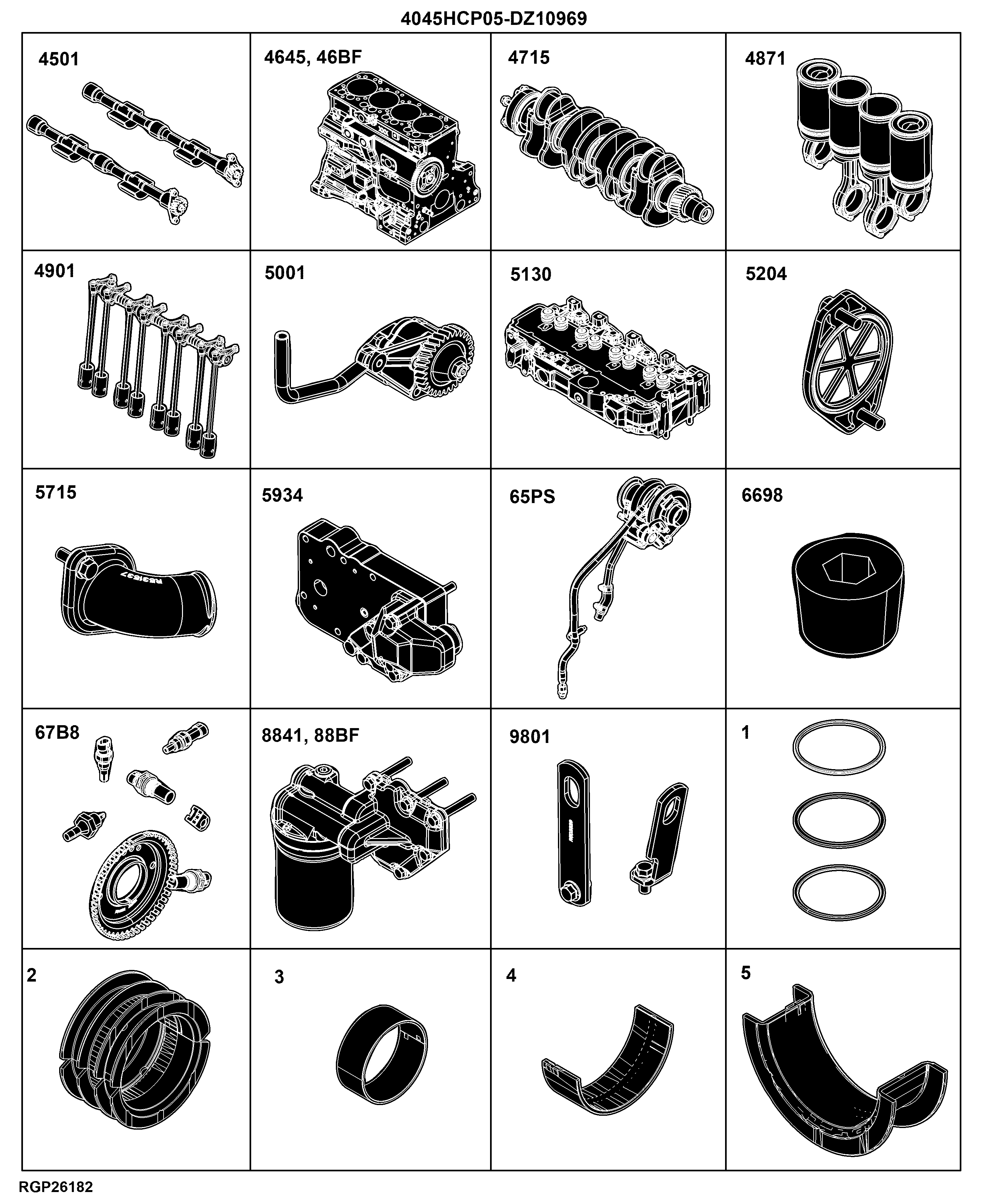

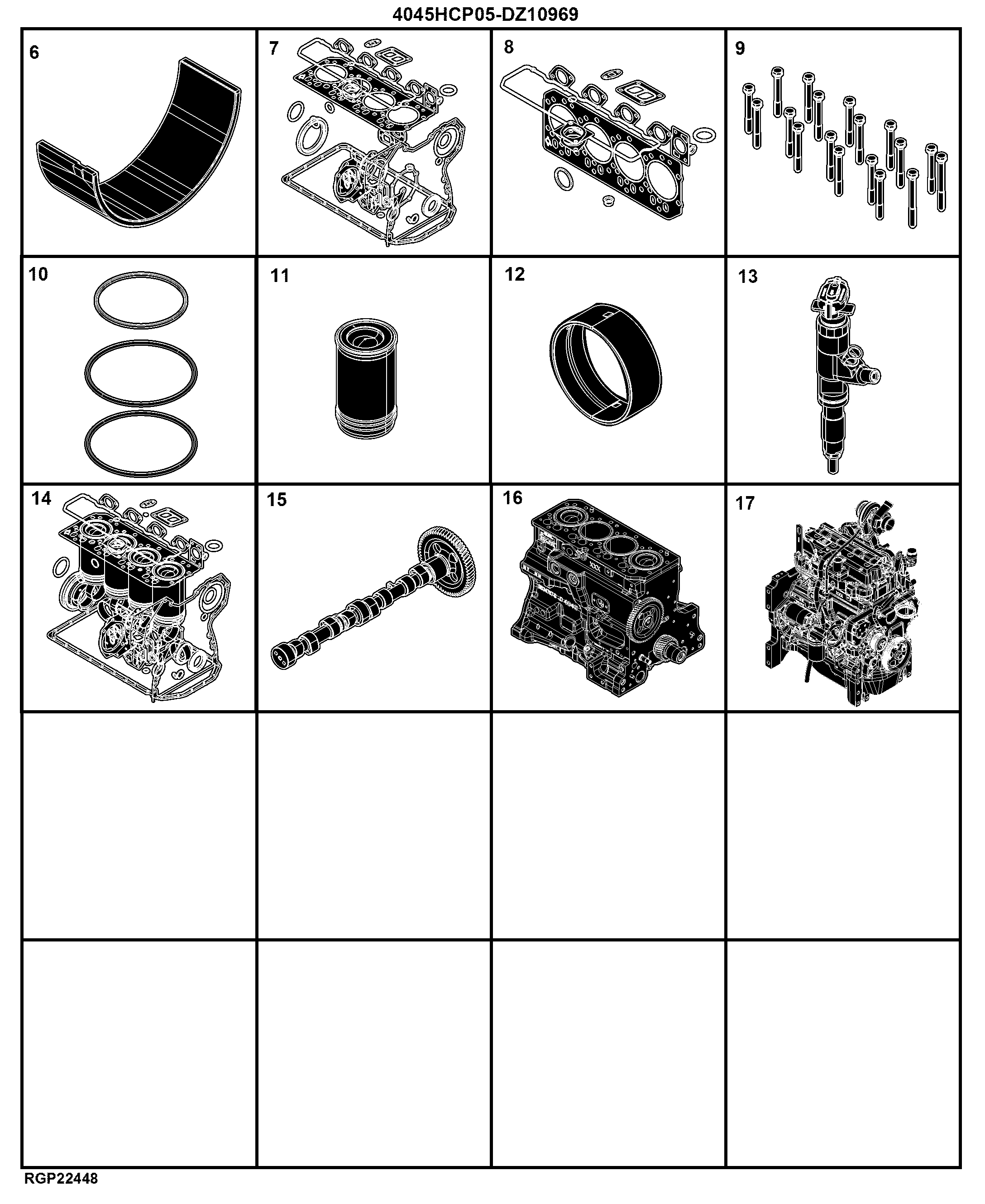

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5130 Cylinder Head and Valves	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5715 Water Pump Inlet	-
-	-	1	5934 Engine Oil Cooler	-
-	-	1	65P5 Turbocharger	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	67B8 Engine Sensors	-
-	-	1	8841 Engine Oil Filter ( - 034257)	-
-	-	1	88BF Engine Oil Filter (034258 - )	-
-	-	1	9801 Lift Straps	-
-	-	1	9901 Camshaft Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 O-Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	30CH Starter Motor	-
-	-	1	1231 Oil Filler Neck ( - 016398)	-
-	-	1	1285 Oil Filler Neck (016399 - )	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	14CB Flywheel Housing	-
-	-	1	1555 Flywheel	-
-	-	1	16JK Fuel Injection System	-
-	-	1	1712 Air Intake ( - 013297)	-
-	-	1	17D1 Air Intake (013704 - )	-
-	-	1	19BL Oil Pan	-
-	-	1	2078 Water Pump Pulley	-
-	-	1	2160 Thermostat Cover	-
-	-	1	2219 Engine Thermostat	-
-	-	1	2893 Exhaust Manifold	-
-	-	1	2911 Ventilating System	-
-	-	1	1134 Valve Cover	-
-	-	1	35J3 Fuel Filter	-
-	-	1	3614 Front Plate ( - 016398)	-
-	-	1	3614 Front Plate (034258 - )	-
-	-	1	3657 Front Plate (016399 - ), ( - 034257)	-
-	-	1	3701 Fuel Transfer Pump	-
-	-	1	3925 Thermostat Housing	-
-	-	1	40A2 Engine Oil Dipstick	-
-	-	1	4448 Timing Gear Cover and Water Pump	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4645 Cylinder Block ( - 001938)	-
-	-	1	46BF Cylinder Block (002352 - )	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4871 Connecting Rods and Pistons	-
