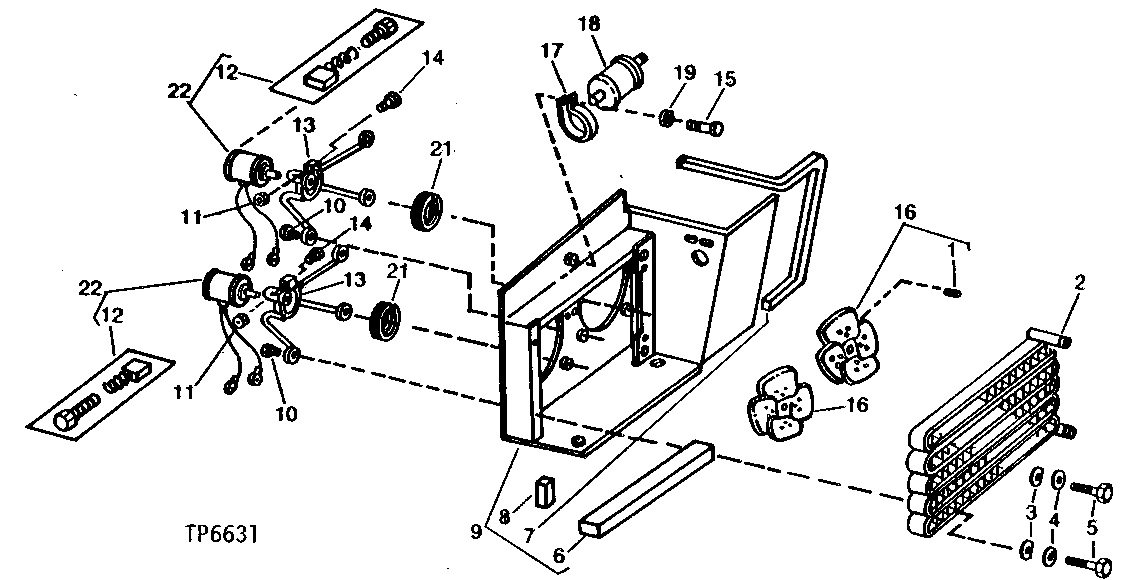

CONDENSER WITH MOTORS, DRYER AND SUPPORT [01K14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H922	1	Set Screw	0.190" X 1/4"
2	AT56087	1	CORE	-
3	T67811	4	WASHER	(SUB FOR T47392)
4	24H1287	4	Washer	9/32" X 5/8" X 0.065"
5	19H2336	4	Cap Screw	1/4" X 3-1/2"
6	T58358	1	ISOLATOR	-
7	T58357	1	ISOLATOR	-
8	T58359	1	ISOLATOR	-
9	AT56080	1	SUPPORT	-
10	19H2664	8	Cap Screw	5/16" X 3/4"
11	14H812	2	NUT	3/8"
12	AT72476	2	KIT	-
12	AT76672	1	Brush Kit	BRUSH, (SUB FOR AT74482)
13	AT59208	2	SUPPORT	(SUB AT71700 AND T74190, THIS APPLICATION)
13	AT71700	1	SUPPORT	-
13	AT56090	2	SUPPORT	(SUB AT71700 AND T74190)
14	19H3239	2	Cap Screw	3/8" X 1-1/4"
15	19H2345	1	Cap Screw	3/8" X 5-1/2"
15	19H3065	1	Cap Screw	3/8" X 2"
16	AT58600	1	FAN	10", (SUB FOR AT56089, THIS APPLICATION)
17	R53422	1	Clamp	-
18	AR59780	1	RECEIVER-DRYER	RECEIVER
19	24M7096	1	Washer	0.413" X 0.709" X 0.063"
20	24H1292	1	Washer	11/32" X 3/4" X 0.120"
21	T74190	2	ISOLATOR	-
22	AT56088	2	ELECTRIC MOTOR	(SUB AT178828 AND AT58600, THIS APPLICATION)
22	AT63511	2	MOTOR	(SUB AT178828 AND AT58600, THIS APPLICATION)
22	AT72477	2	MOTOR	(ALSO ORDER AT58600, THIS APPLICATION) (SUB AT178828)
22	AT178828	2	Electric Motor	(SUB FOR AT74836)

CONDENSER WITH MOTORS, DRYER AND SUPPORT [01K14]
