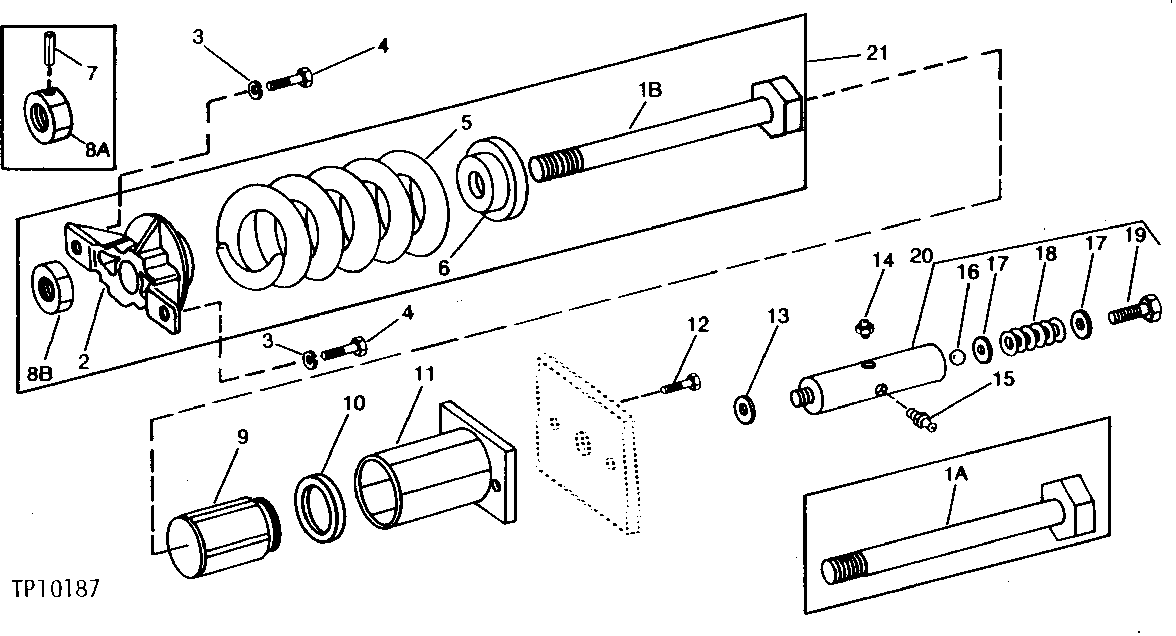

ADJUSTING CYLINDER AND IDLER SPRING ASSEMBLY [01B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	T42678	1	YOKE	-
3	12H294	2	Lock Washer	5/8", (USE WITH T42683)
3	12M7069	2	Lock Washer	5/8", (USE WITH 19M7488)
4	19M7488	2	Cap Screw	M16 X 2 X 40, (SUB FOR T42683)
5	T119926	1	EXTENSION SPRING	(SUB FOR T44023)
6	T42680	1	CAP	SPRING, (USE WITH AT47056)
6	T123102	1	CAP	(USE WITH AT125807)
7	T42684	1	SPRING PIN	-
9	T42673	1	PISTON	-
10	T165540	1	SEAL	-
10	T42674	1	SEAL	(USE IF AVAILABLE) (SUB T165540)
11	T42672	1	HYDRAULIC CYLINDER BARREL	-
12	19M7303	2	Cap Screw	M12 X 45 X 8.8, (SUB FOR T42671)
13	AT48016	1	Seal	VALVE
14	JD7797	1	Lubrication Fitting	STRAIGHT, 1/4"
15	JD7797	3	Lubrication Fitting	(SUB FOR T49644)
16	-	1	Part 23	(SUB AT48017)
17	-	2	Part 24	9/32" X 1/2" X .060", (SUB AT48017)
18	-	1	Part 25	(SUB AT48017)
19	-	1	Part 26	5/8" X 1/2", (SUB AT48017)
20	AT48017	1	VALVE	TRACK RELIEF
21	-	1	Part 28	( AT47056 NO LONGER AVAILABLE) (SUB AT125807 IF AVAILABLE)
1A	T119925	1	BOLT	(SUB FOR T42679)
1B	T123101	1	BOLT	(USE WITH AT125807)
1B	T119925	1	BOLT	(SUB FOR T42679) (USE WITH AT47056)
8A	T42682	1	NUT	-
8B	T124145	1	NUT	(USE WITH AT125807)
8B	T42682	1	NUT	(USE WITH AT47056)

ADJUSTING CYLINDER AND IDLER SPRING ASSEMBLY [01B05]
