Открытый узел

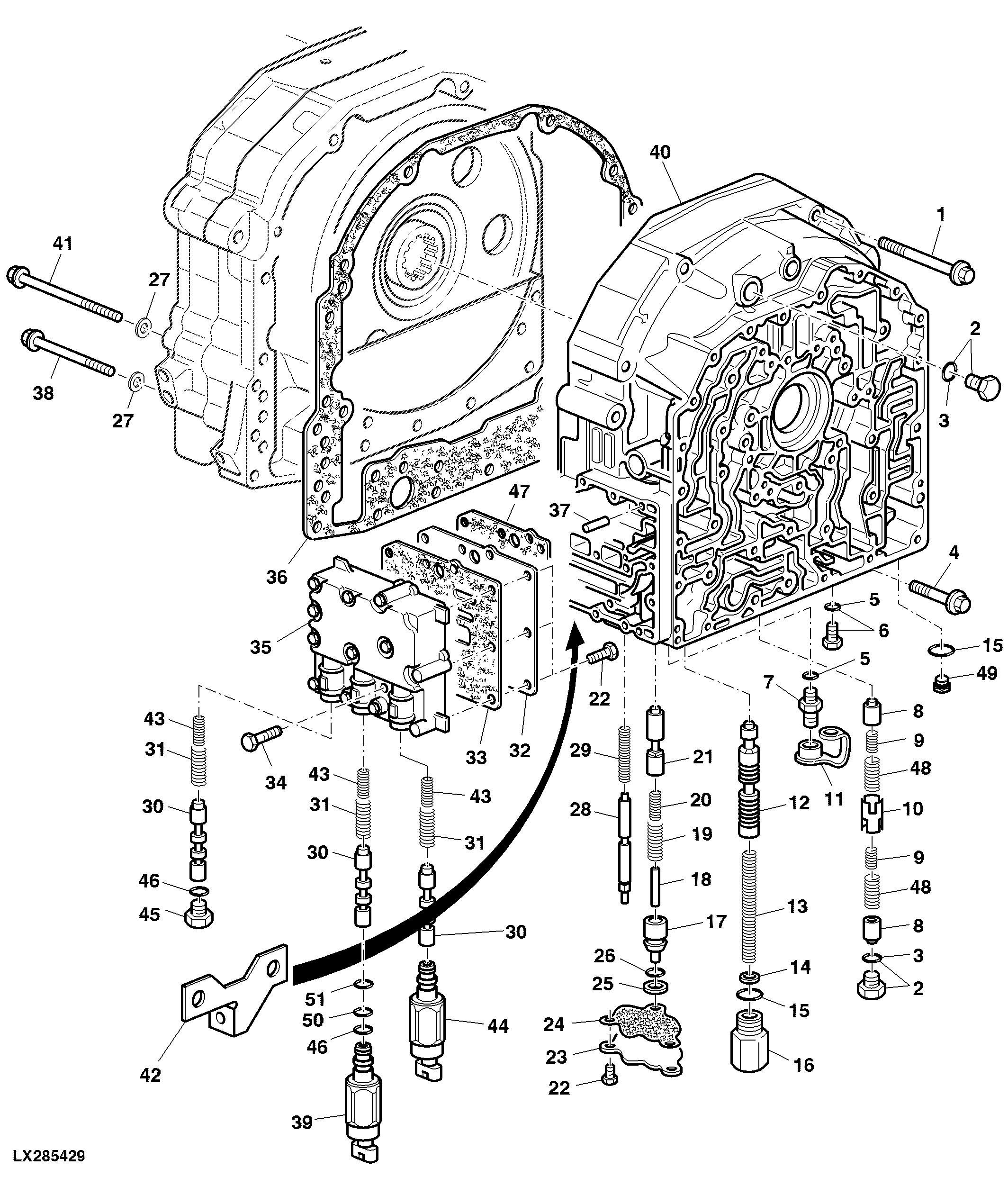

TRANSMISSION FRONT COVER (WITH ELECTR. REVERSER CONTROL)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R112063	5	Screw	-
2	RE46685	2	Fitting Plug	-
3	51M7043	2	O-Ring	15.300 X 2.200 mm
4	R115141	8	Screw	-
5	51M7041	1	O-Ring	11.300 X 2.200 mm
6	RE46684	1	Fitting Plug	-
7	AL80099	2	Hydr. Quick Coupler Plug	-
8	R241994	2	Spool Valve	-
9	R273530	2	Compression Spring	(SUB FOR R265071)
10	R273498	1	Spool Valve	(SUB FOR R175386, R241995)
11	R77175	2	Cover	-
12	R120947	1	Valve	(PRESSURE- REGULATING)
13	R95059	1	Spring	-
14	R86638	4	Shim	-
15	51M7045	2	O-Ring	19.300 X 2.200 mm
16	R171411	1	Drain Plug	-
17	R299265	1	Piston	(ORD W/ R299262, R299263, R299264) (SUB FOR R176199)
18	R299264	1	Pin	(ORD W/ R299262, R299263, R299265) (SUB FOR R110257)
19	R299262	1	Compression Spring	(ORD W/ R299263, R299264, R299265) (SUB FOR R244609, R291057)
20	R299263	1	Compression Spring	(ORD W/ R299262, R299264, R299265) (SUB FOR R95216)
21	R252208	1	Spool Valve	-
22	19M7775	6	Screw	M6 X 16
23	R171412	1	Cover	-
24	R171413	1	Gasket	ORDER R341955
24	R341955	1	Gasket	-
25	R112976	1	Seal	ORDER R559032
25	R559032	1	Seal	-
26	P48347	1	O-Ring	-
27	24M7028	2	Washer	10.500 X 20 X 2 mm
28	R176198	1	Valve	-
29	R54174	1	Spring	-
30	R212401	3	Spool	-
31	R194659	3	Compression Spring	-
32	R213348	1	Plate	(ORD W/ R341954, R341953)
33	R213484	1	Gasket	ORDER R341954
33	R341954	1	Gasket	-
34	19M7834	11	Screw	M6 X 45
35	R332401	1	Housing	SUB FOR R240426
36	R202640	1	Gasket	ORDER R321236
36	R321236	1	Gasket	-
37	34M5028	2	Spring Pin	5 X 12 mm
38	19M7958	1	Screw	M10 X 150, (10.9)
39	RE183369	1	Solenoid Valve	ALSO ORDER T57247, R27564, P50883
40	R331120	1	Cover	(SUB FOR R213352)
41	R104714	1	Screw	M10 X 185, (10.9)
42	L153819	1	Holder	-
43	R194658	3	Compression Spring	-
44	RE183407	1	Solenoid Valve	-
45	R214778	1	Plug	(ORD W/ T57247)
46	T57247	2	O-Ring	-
47	R213485	1	Gasket	ORDER R341953
47	R341953	1	Gasket	-
48	R276022	2	Compression Spring	(SUB FOR R265074)
49	L158342	1	Fitting	-
50	R27564	1	O-Ring	-
51	P50883	1	Ring	-

TRANSMISSION FRONT COVER (WITH ELECTR. REVERSER CONTROL)
