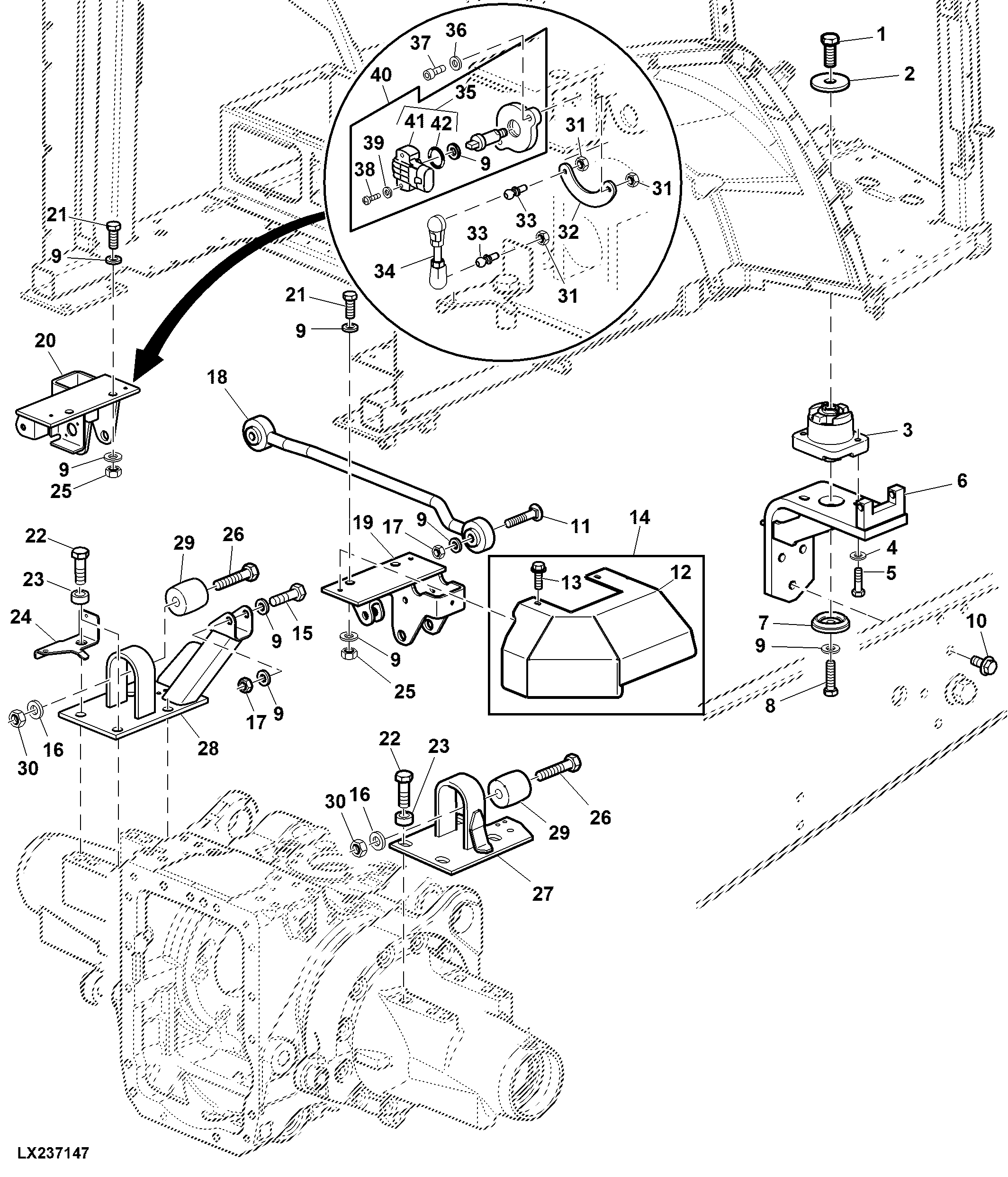

SUSPENSION FOR CAB (FOR HYDRAULIC CAB SUSPENSION - HCS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7597	2	Cap Screw	M20 X 50, (10.9)
2	L157400	2	Washer	-
3	AL203005	2	Isolator	-
3	AL175352	2	Isolator	NLA, ORDER AL203005
4	24M7047	4	Washer	13 X 24 X 2.500 mm
5	19M7493	4	Cap Screw	M12 X 40
6	AL164027	1	Bracket	LH
6	AL176074	1	Bracket	RH (SUB FOR AL164030)
7	AL164005	2	Isolator	-
8	19M7759	2	Cap Screw	M16 X 60
9	L110245	1	Seal	-
10	19M7843	6	Screw	M16 X 35
11	03M7212	1	Bolt	M16 X 80
12	L168553	2	Guard	LH (ORD AL159713)
12	L168554	1	Guard	RH (ORD AL159713)
13	19M7865	4	Screw	M8 X 16
14	AL159713	1	Guard	(INCL L168553, L168554, (4) 19M7865) FI
15	19M7720	1	Cap Screw	M16 X 80, (10.9)
16	24M7099	2	Washer	21 X 34 X 3 mm
17	14M7276	2	Nut	M16
18	AL172412	1	Rod	(SUB FOR AL155737)
19	AL178627	1	Plate	RH (SUB FOR AL172637)
20	AL178626	1	Plate	LH (SUB FOR AL172636)
21	19M7488	4	Cap Screw	M16 X 40, (10.9)
22	19M8224	8	Cap Screw	M20 X 60, (10.9)
23	L169920	8	Sleeve	-
24	L155701	1	Angle	-
25	14M7291	4	Flange Nut	M16
26	19M7969	2	Cap Screw	M20 X 110, (10.9)
27	AL181868	1	Plate	RH (SUB FOR AL172423)
28	AL181869	1	Support	LH (SUB FOR AL172401, AL177269)
29	AL154942	2	Adjusting Strap	-
30	14M7410	2	Lock Nut	M20
31	14M7165	3	Lock Nut	M6
32	L170673	1	Lever	-
33	55M7012	2	Ball Stud	-
34	AL172446	1	Ball Joint	-
35	AL113868	1	Sensor	-
36	24M7027	2	Washer	5.300 X 10 X 1 mm
37	19M7600	2	Screw	M5 X 12
38	21M7216	2	Screw	M4 X 20
39	24M7117	2	Washer	4.300 X 9 X 0.800 mm
40	AL155986	1	Sensor	-
41	AL110351	1	Sensor	ORDER AL113868
42	R98502	1	Ring	-

SUSPENSION FOR CAB (FOR HYDRAULIC CAB SUSPENSION - HCS)
