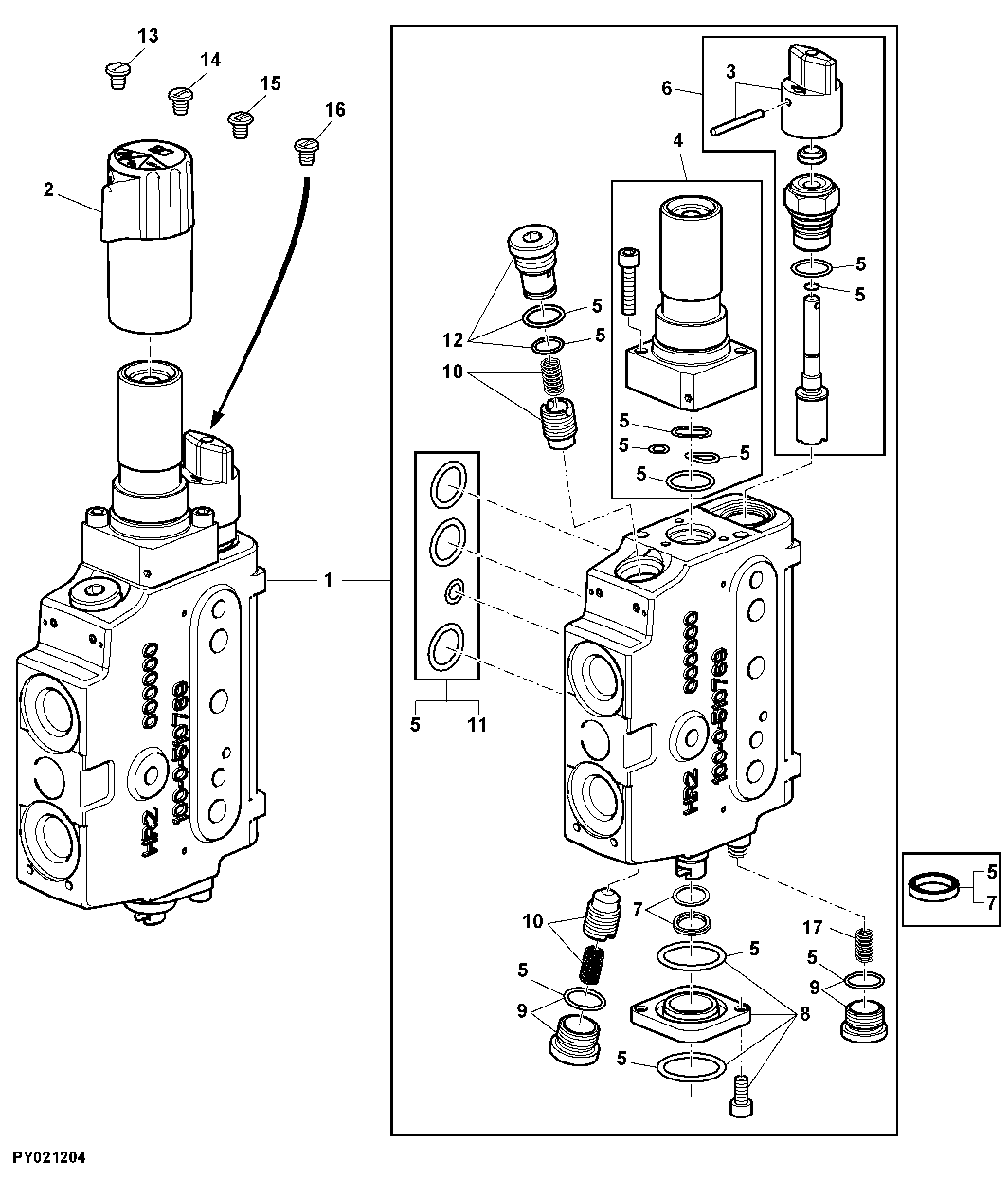

MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 300 SERIES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL174925	1	Selective Control Valve	W/O KEY 2 (SUB FOR AL172563)
2	L169977	1	Knob	-
3	AL177612	1	Knob	(SUB FOR AL172969)
4	AL203286	1	Detent Kit	(ORDER AL235814; SUB FOR AL178285, AL172965)
4	AL235814	1	Detent Kit	-
5	AL203572	1	Seal Kit	ORDER AL207508; SUB FOR AL172963
5	AL207508	1	Seal Kit	-
6	AL177613	1	Repair Kit	ORDER AL207507; SUB FOR AL172975
6	AL207507	1	Repair Kit	-
7	AL203292	1	Seal Kit	SUB FOR L170240
8	AL172966	2	Flange Kit	-
9	AL172974	1	Fitting Plug	-
10	AL172967	2	Valve Kit	-
11	AL172964	1	Seal Kit	ORDER AL207509
11	AL207509	1	Seal Kit	-
12	AL200946	1	Check Valve	SUB FOR AL172973
13	L170555	1	Plug	MARKED I
14	L170556	1	Plug	MARKED II
15	L170557	1	Plug	MARKED III
16	L102157	1	Plug	MARKED IV
17	L203821	1	Compression Spring	-
..	AL180371	1	Selective Control Valve	(INCLUDES 1 M-SCV 300 SERIES AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES LEAK-OFF-OIL PARTS) ,FI,CNLA,(ORD AL204115)
..	AL204115	1	Selective Control Valve	(INCLUDES 1 M-SCV 300 SERIES AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES LEAK-OFF-OIL PARTS) FI, CNLA, ORDER AL205078 INCL KEYS 1–20
..	AL205078	1	Selective Control Valve	(INCLUDES 1 M-SCV 300 SERIES AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES LEAK-OFF-OIL PARTS) FI, INCL KEYS 1–20

MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 300 SERIES
