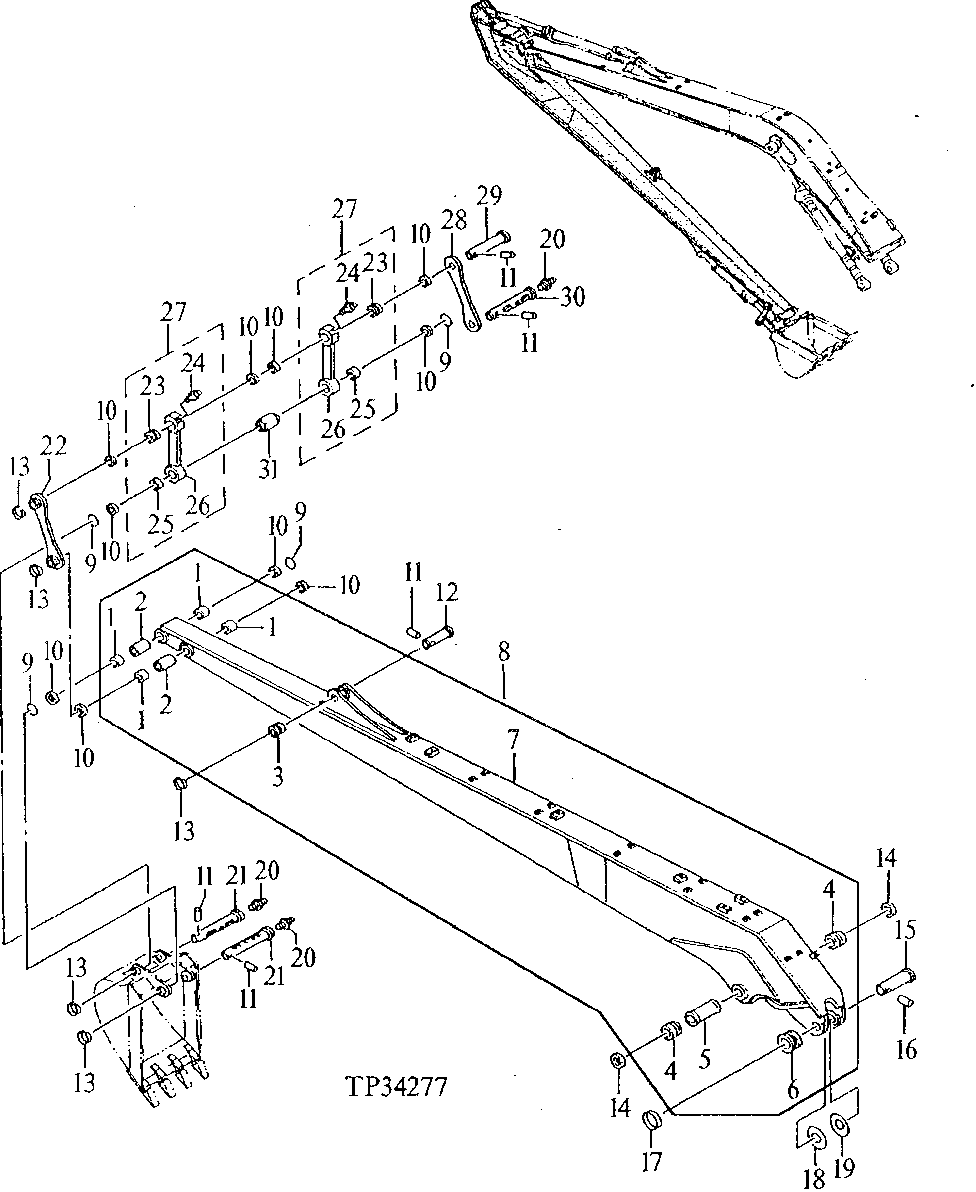

SUPER LONG FRONT ARM AND BUCKET LINKAGE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT122209	4	Bushing	-
2	4287248	2	Bushing	(SUB FOR AT159595)
3	TH108649	1	Bushing	-
4	3030949	2	BUSHING	(SUB FOR T115078)
5	4084573	1	SPACER	(SUB FOR T115079)
6	TH104509	1	Bushing	-
7	-	1	Part 7	(SUB AT160877)
8	-	1	Part 8	( AT160877 NLA)
9	4066923	4	O-Ring	(SUB FOR AT121233)
10	TH100374	10	Seal	-
11	4065689	5	Pin Fastener	(SUB FOR TH100625)
12	3044367	1	Pin	(SUB FOR AT134035)
13	4065688	5	Retainer	(SUB FOR TH100624)
14	TH102446	2	Seal	-
15	3058760	1	Pin Fastener	(SUB FOR AT160879)
16	4098713	1	Pin	(SUB FOR TH103627)
17	4098712	1	Ring	(SUB FOR TH103629)
18	TH104296	2	Washer	-
19	TH104297	1	Washer	-
20	TH100074	3	Lubrication Fitting	-
21	AT159603	2	Pin	-
22	9738223	1	Link	(SUB FOR AT159598)
23	4196557	1	BUSHING	(SUB FOR TH108934)
24	TH100074	1	Lubrication Fitting	-
25	AT122209	1	Bushing	-
26	-	1	Part 26	( AT159597 NLA)
27	8052470	2	Link	(SUB FOR AT159596)
28	4287250	1	Link	(SUB FOR AT159599)
29	AT159601	1	Pin	-
30	AT318041	1	Pin Fastener	(SUB FOR 3058763, AT159602)
31	4287249	1	Spacer	(SUB FOR AT159600)
..	AT160855	1	Sideboom	INCLUDES ALL PARTS (SUPER LONG FRONT BOOM AND ARM, ALSO INCLUDES HYDRAULICS, CYLINDERS AND CENTRAL LUBRICATION)

SUPER LONG FRONT ARM AND BUCKET LINKAGE

Нет текстового описания
