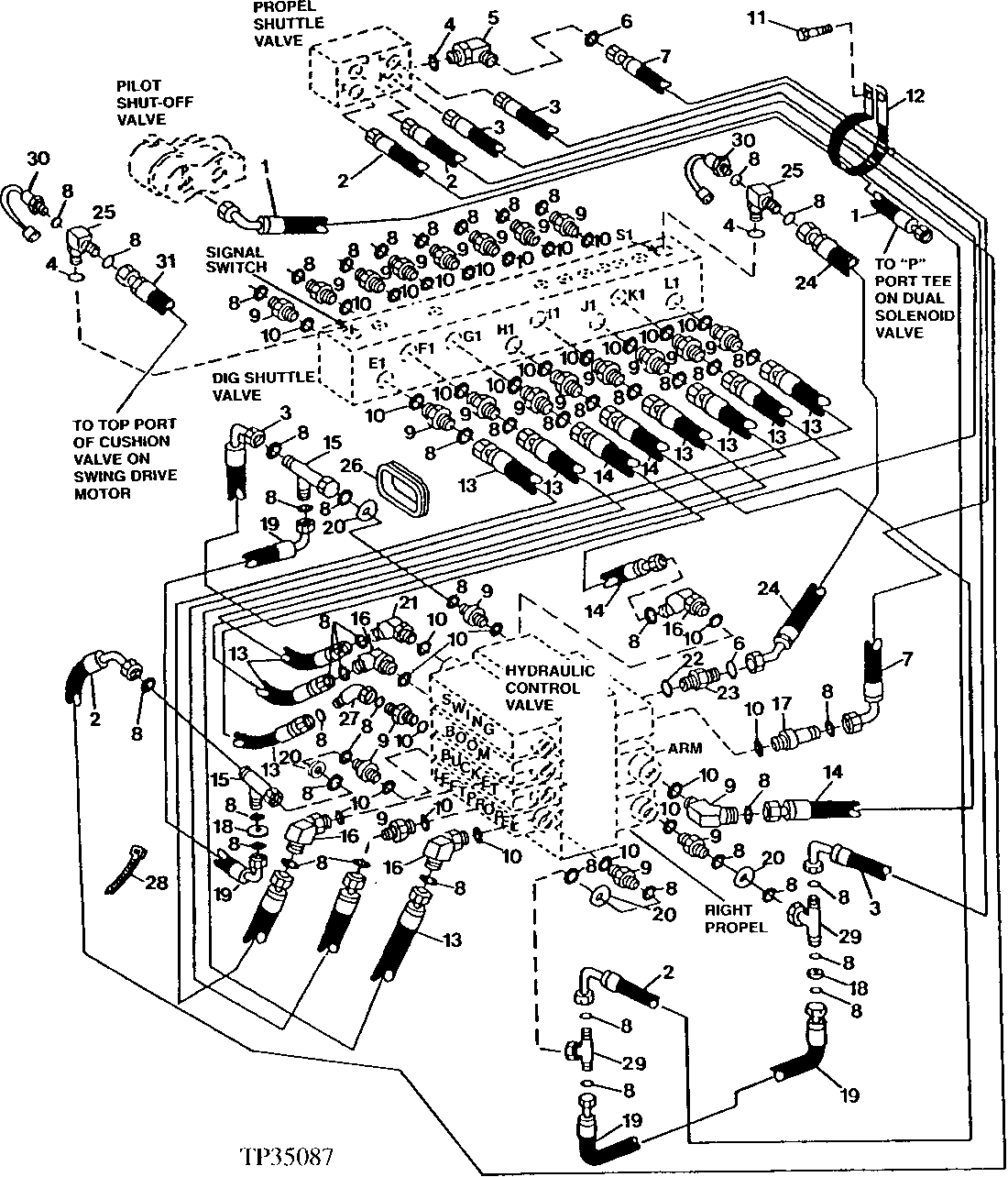

PILOT CONTROL HYDRAULIC LINES (543990 - 556935)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT147357	1	Hydraulic Hose	9/16" X 3149 mm (124") X 17.4752"
2	AT147360	2	Hydraulic Hose	17.4752" X 2099 mm (82-3/4") X 9/16"
3	AT152144	2	Hydraulic Hose	17.4752" X 2480 mm (97-3/4") X 17.4752"
4	R26287	3	O-Ring	-
5	AT152142	1	Adapter Fitting	-
6	T77814	2	O-Ring	-
7	AT147441	1	Hydraulic Hose	9/16" X 2439 mm (96") X 17.4752"
8	T77613	50	O-Ring	-
8	T77613	3	O-Ring	(USE ONLY WITH ANTI-DRIFT APPLICATION)
9	38H1160	20	Adapter Fitting	-
9	38H1160	23	Adapter Fitting	-
10	R26448	29	O-Ring	-
11	19M7784	1	Screw	M10 X 20
12	N198631	1	Clamp	-
13	AT147362	6	Hydraulic Hose	17.4752" X 1219 mm (48") X 17.4752"
14	AT147363	2	Hydraulic Hose	17.4752" X 1472 mm (58") X 17.4752"
15	38H1038	4	Tee Fitting	-
16	38H1045	9	Elbow Fitting	-
16	38H1045	4	Elbow Fitting	-
17	38H1212	1	Adapter Fitting	-
18	T114635	2	Orifice	-
19	AT167988	2	Hydraulic Hose	17.4752" X 355 mm (14") X 17.4752", (SUB FOR AT141147, THIS APPLICATION)
20	N279033	4	Orifice	(SUB FOR N203223)
21	38H1004	1	Elbow Fitting	-
22	R28782	1	O-Ring	-
23	38H1159	1	Adapter Fitting	-
24	AT147380	1	Hydraulic Hose	17.4752" X 2400 mm (94-1/2") X 9/16"
25	AT152197	1	Fitting	TEE
25	AT152197	1	Fitting	TEE
26	R20759	1	Grommet	HOSES THROUGH LOWER RIGHT CORNER OF CENTER BAFFLE
27	38H1094	1	Elbow Fitting	(USE ONLY WITH ANTI-DRIFT APPLICATION)
28	R44302	1	Tie Band	-
29	38H1038	2	Tee Fitting	-
30	AT223535	2	Pressure Switch	(SUB FOR AT152113)
31	AT167987	1	Hydraulic Hose	17.4752" X 1803 mm (71") X 17.4752"

PILOT CONTROL HYDRAULIC LINES (543990 - 556935)
