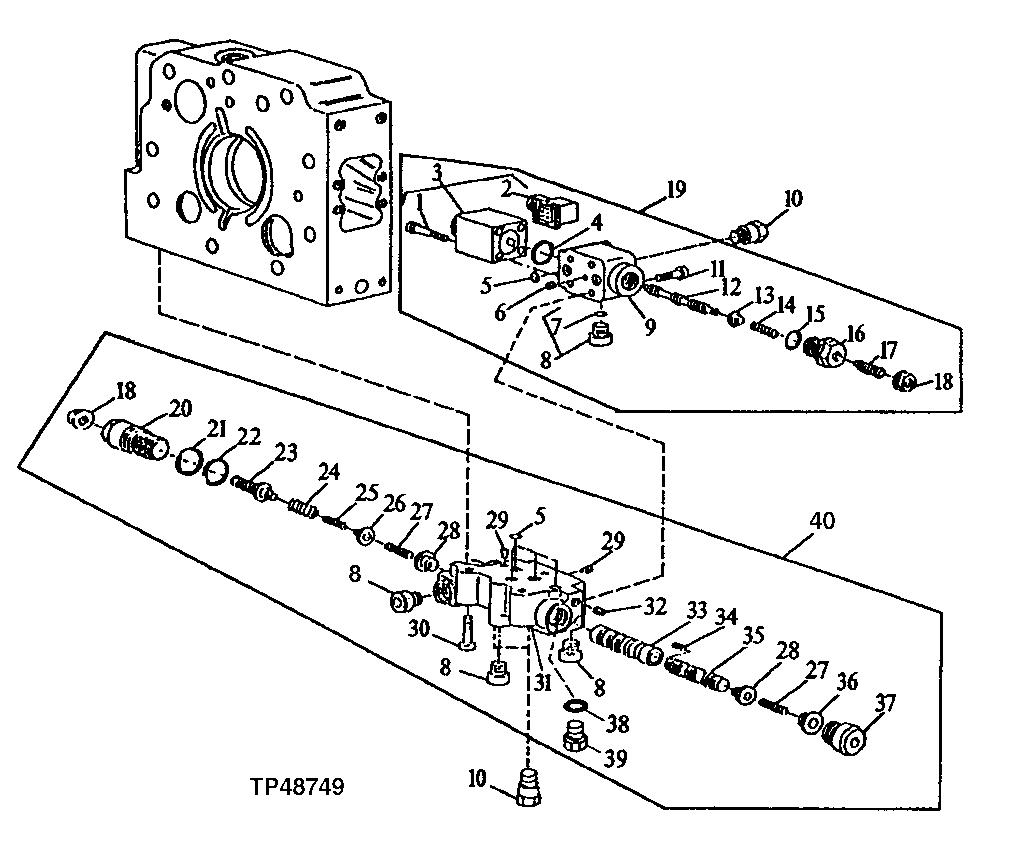

HYDRAULIC PUMP PRESSURE REGULATOR ( - 541310)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8812	4	Screw	M4 X 50
2	-	1	Part 2	(SUB AT152024)
3	AT152024	1	Solenoid	-
4	T49819	1	O-Ring	-
5	T74550	6	O-Ring	-
6	T107870	1	Plug	-
7	T107983	1	Seal	-
8	AT112799	4	Fitting Plug	-
9	-	1	Part 9	(SUB AT152023)
10	T74522	3	ADAPTER FITTING	METRIC PORT ADAPTER
10	-	1	Part 11	(NOT ILLUSTRATED)
11	19M8532	4	Screw	M6 X 35
12	-	1	Part 13	(SUB AT152023)
13	-	1	Part 14	(SUB AT152023)
14	T139532	1	Spring	-
15	T139533	1	O-Ring	-
16	T139534	1	Plug	-
17	T139535	1	Bolt	-
18	T115240	2	Nut	-
19	-	1	Part 20	( AT152023 NO LONGER AVAILABLE), (SUB AT165682)
19	AT165682	1	Regulator	REPLACEMENT
20	T139531	1	Plug	-
21	T115245	1	Back-Up Ring	-
22	T74497	1	O-Ring	-
23	T139530	1	Pin	-
24	T139529	1	Spring	-
25	T139528	1	Spring	-
26	-	1	Part 28	(SUB AT152021)
27	-	2	Part 29	(SUB AT152021)
28	-	2	Part 30	(SUB AT152021)
29	-	2	Part 31	(SUB AT152021)
30	T116311	3	Bolt	-
31	-	1	Part 33	(SUB AT152021)
32	15M7032	1	Pipe Plug	(SUB FOR T121804)
33	-	1	Part 35	(SUB AT152021)
34	-	1	Part 36	(SUB AT152021)
35	-	1	Part 37	(SUB AT152021)
36	-	1	Part 38	(SUB AT152021)
37	AT152022	1	Plug	(INCLUDES O-RING)
38	T144194	1	O-Ring	-
39	AT158788	1	Check Valve	-
40	-	1	Part 42	( AT152021 NO LONGER AVAILABLE), (SUB AT165681 (NOTE: MAY ALSO REQUIRE (3) T74522 ADAPTERS AND (1) AT158788 CHECK VALVES))
40	-	1	Part 43	REPLACEMENT ( AT165681 NO LONGER AVAILABLE), (SUB AT180163)
40	AT180163	1	Regulator	REPLACEMENT

HYDRAULIC PUMP PRESSURE REGULATOR ( - 541310)
