Открытый узел

General Purpose Bucket (Also Order Bucket Tooth Assemblies)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	-	1	Part 1	(1 INCH HEAD THICKNESS)
5	R48685	1	Dowel Pin	-
6	TH104512	9	Washer	-
7	TH104513	1	Shim	-
8	TH104514	1	Spacer	-
9	19H2706	3	Cap Screw	5/8" X 2"
10	12H294	3	Lock Washer	5/8"
11	TH104509	2	Bushing	(LOCKING COLLAR)
13	C607480	1	Pivot	(ORDER FROM CENTRAL FABRICATORS) (BUCKET EAR BLANK ASSEMBLY)
14	300536	2	Plate	(ORDER FROM CENTRAL FABRICATORS) (RIGHT AND LEFT SIDE)
15	-	1	Part 11	(CUT TO LENGTH FROM AT131082)
16	300534	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (UPPER RIGHT SIDE)
17	300535	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (UPPER LEFT SIDE)
18	300482	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (LEFT INSERT)
19	300481	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (RIGHT INSERT)
20	600321	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (48 INCH)
20	600320	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (42 INCH)
20	600318	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (30 INCH)
20	600319	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (36 INCH)
21	-	1	Part 20	(SUB AT131080)(LEFT)
22	-	1	Part 21	(SUB AT131080)(RIGHT)
23	09H1771	6	Bolt	7/8" X 3"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
27	300524	1	Bar	(ORDER FROM CENTRAL FABRICATORS) (INNER WEAR)
28	306974	1	Bar	(ORDER FROM CENTRAL FABRICATORS) (OUTER WEAR)
29	-	1	Part 27	(WEAR SHROUD), (SUB AT167874)
30	-	1	Part 28	(WEAR SHROUD), (SUB AT167874)
31	14H1044	1	Nut	7/8"
40	-	1	Part 30	(AT163600 NLA) WHOLEGOODS (24 INCH - .59 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 31	(AT163602 NLA) WHOLEGOODS (30 INCH - .77 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 32	(AT163603 NLA) WHOLEGOODS (36 INCH - .95 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 33	(AT163604 NLA) WHOLEGOODS (42 INCH - 1.12 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 34	(AT163605 NLA) WHOLEGOODS (48 INCH - 1.30 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
90	AT131080	1	End Bit	-
92	AT167874	1	KIT	-

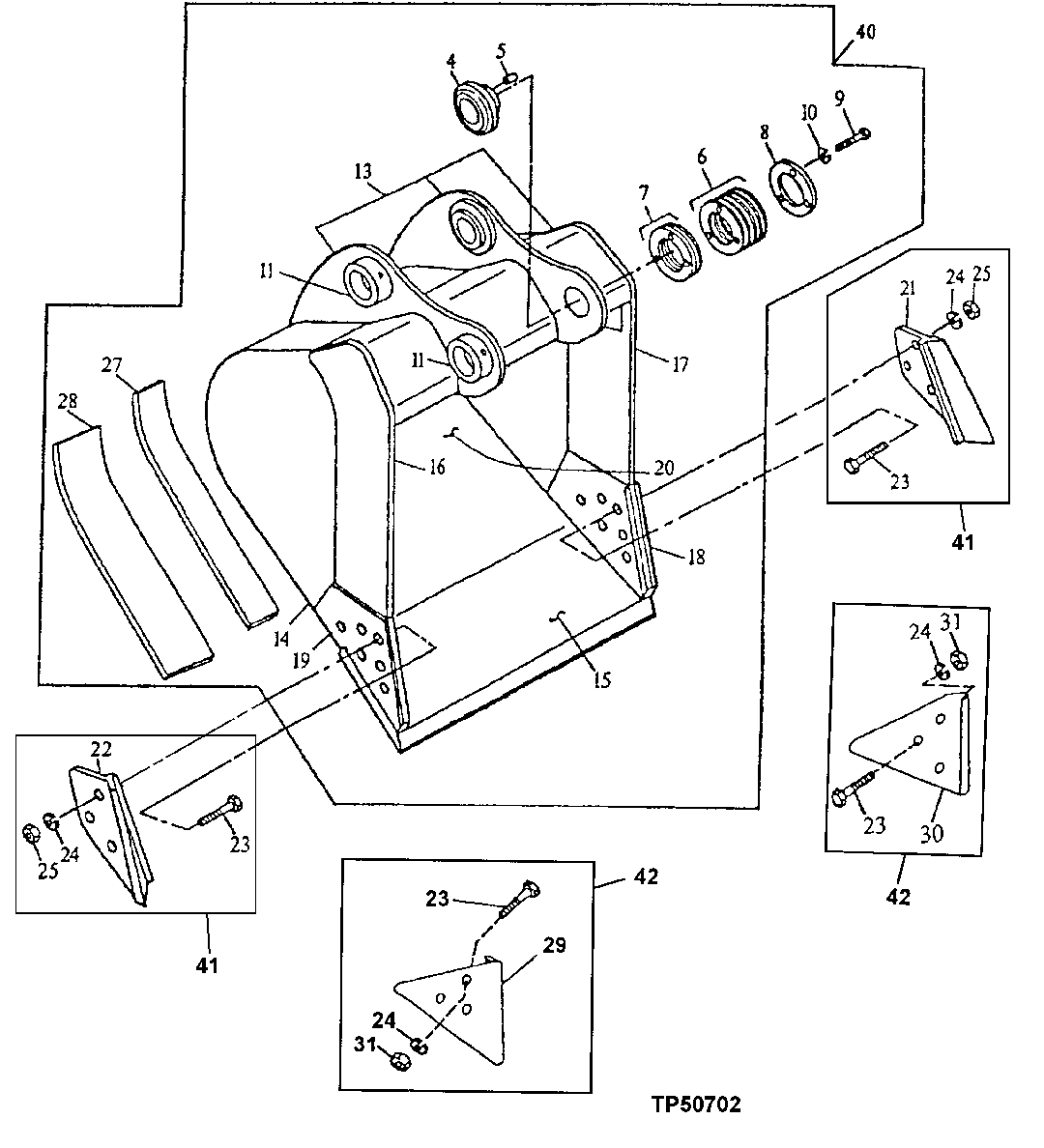

General Purpose Bucket (Also Order Bucket Tooth Assemblies)
