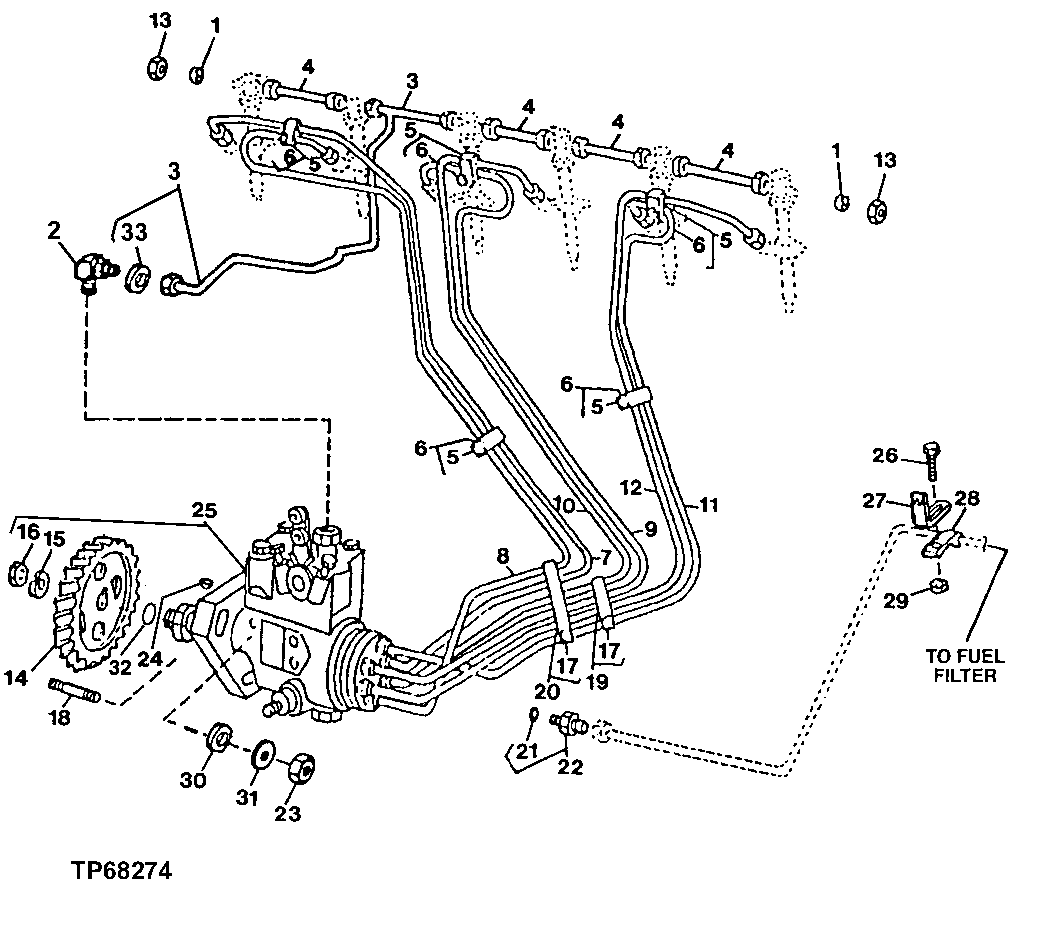

Fuel Injection System - 24 Volt (704569 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR85519	2	Plug	-
2	R67364	1	Elbow Fitting	-
3	RE70848	1	Fuel Line	LEAK OFF
4	RE68748	4	Tube	-
4	R51936	8	Sealing Washer	-
5	RE19797	5	Clamp	GREEN
6	19M7300	5	Cap Screw	M6 X 10
7	RE60055	1	Fuel Line	NO. 1
8	RE60056	1	Fuel Line	NO. 2
9	RE60057	1	Fuel Line	NO. 3
10	RE60058	1	Fuel Line	NO. 4
11	RE60059	1	Fuel Line	NO. 5
12	RE60060	1	Fuel Line	NO. 6
13	R123593	2	Tube Nut	LEAK OFF
14	R132267	1	Gear	(60 TEETH)
15	R132874	1	Washer	-
16	R91360	1	Nut	-
17	19M7300	3	Cap Screw	M6 X 10
18	R116386	3	Stud	-
19	RE19799	1	Clamp	-
20	RE19800	1	Clamp	-
21	51M7040	1	O-Ring	9.300 X 2.200 mm
22	RE60029	1	Fitting	-
23	14M7273	3	Nut	M8, (SUB FOR (3) 14M7298)
24	26H10	1	Shaft Key	5/32" X 5/8"
25	SE500799	1	Fuel Injection Pump Reman	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS) (STANADYNE DB46295424) (REMAN FOR RE501328)
25	RE501328	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS) (STANADYNE DB46295424)
25	SE500650	1	Fuel Injection Pump Reman	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS) (STANADYNE DB46295327) (REMAN FOR RE67765)
25	RE67765	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS) (STANADYNE DB46295327)
26	19M7865	1	Screw	M8 X 16
27	R116116	1	Bracket	-
28	T14050	1	Clamp	-
29	14M7298	1	Flange Nut	M8
30	T27860	3	Washer	-
31	12M7056	3	Lock Washer	8 mm, (SUB FOR 12M7065)
32	R502076	1	O-Ring	(SUB FOR R89944)
33	R51936	2	Sealing Washer	-

Fuel Injection System - 24 Volt (704569 - )
