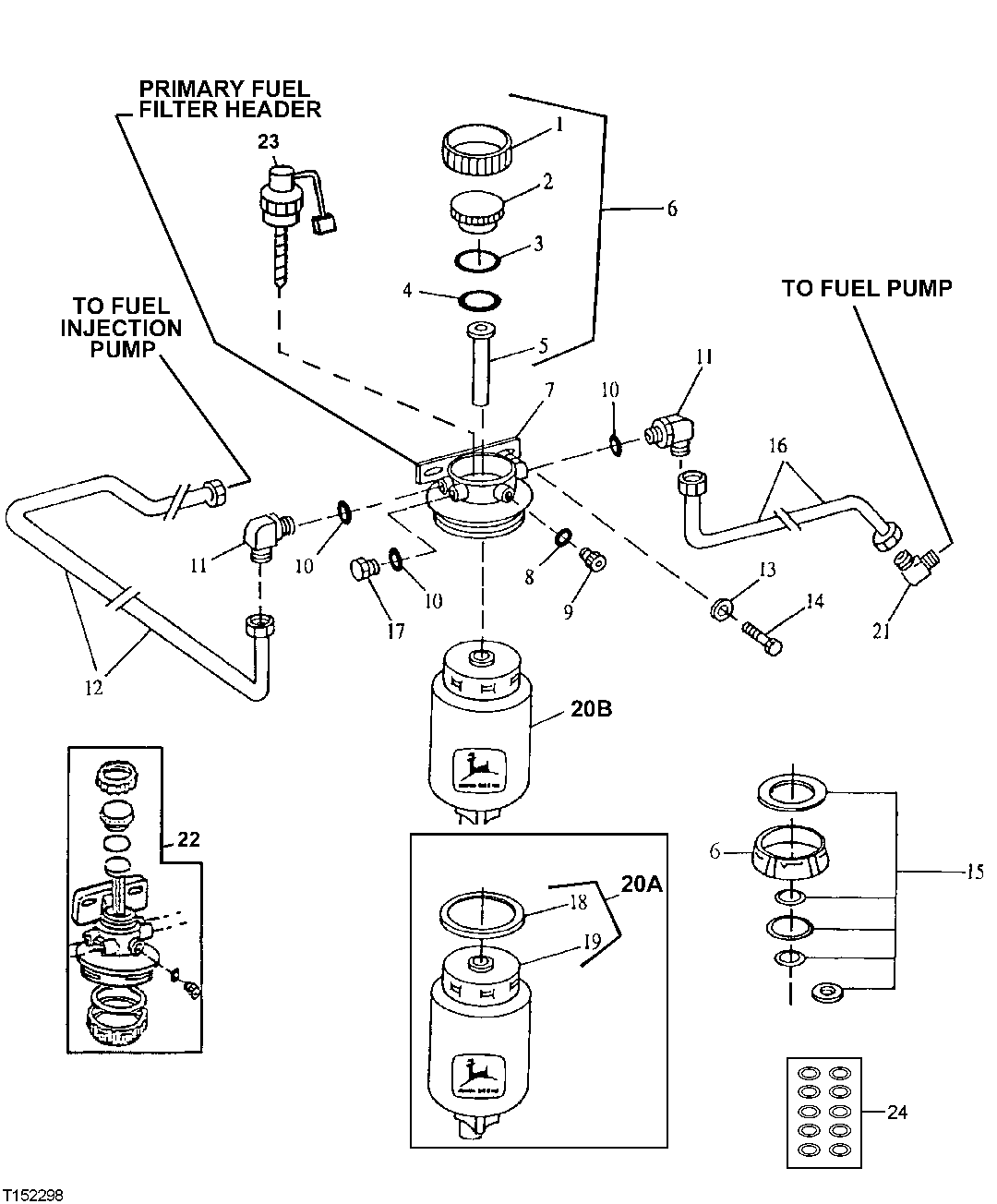

FINAL FUEL FILTER AND FUEL LINES (469373 - 704568)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB RE51649)
2	-	1	Part 2	(SUB RE51649)
3	-	1	Part 3	(SUB RE516553)
4	-	1	Part 4	(SUB RE516553)
5	-	1	Part 5	(SUB RE51649)
6	RE51649	1	Seal Kit	-
7	RE55762	1	Filter Head	(SUB RE62419 AND RE500160)
7	RE63181	1	Filter Head	(SUB RE500160)
8	R113562	1	O-Ring	ALSO IN RE516553
9	R113563	1	Drain Plug	ALSO IN RE51649
10	R26286	4	O-Ring	-
11	RE56322	2	Tee Fitting	(SUB FOR AT32333)
12	RE57241	1	Fuel Line	-
13	24M7233	2	WASHER	10.700 X 21 X 2.500 mm
14	19H3483	2	Cap Screw	3/8" X 1-1/8"
15	RE516553	1	Seal Kit	(SUB FOR RE50752)
16	RE53547	1	Fuel Line	-
17	R27094	2	Drain Plug	-
18	R113565	1	O-Ring	ALSO IN RE516553
19	-	1	Part 20	-
21	R82131	1	Elbow Fitting	-
22	RE500160	1	Filter Head	FILTER HEADER
23	RE504134	1	Heater	FUEL FILTER HEATER 24 VOLT TOP LOAD HEATER
24	RE516513	1	Pump Repair Kit	(WITH HAND PRIMER) (CONTAINS 10 O-RINGS)
24	RE516512	1	O-Ring Kit	(WITHOUT HAND PRIMER) (CONTAINS 10 O-RINGS)
20A	RE53400	1	Fuel Filter	(SUB RE62419 AND RE500160)
20B	RE62419	1	Filter Element	-

FINAL FUEL FILTER AND FUEL LINES (469373 - 704568)
