BOOM AND ARM AUXILIARY HYDRAULIC LINES (541136 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1419	2	Fitting	-
2	T76938	12	O-Ring	-
3	38H1287	2	Adapter Fitting	-
4	T78715	2	Nut	-
5	AT162843	2	Hydraulic Hose	-
6	14M7400	4	Lock Nut	M10
7	T144743	2	Strap	-
8	19M7835	4	Screw	M10 X 35
9	AT162715	1	Oil Line	LEFT (WHEN ORDERED PRIOR TO SERIAL NUMBER 551586 ALSO ORDER(4) 24H1346 WASHERS)
9	AT162715	1	Oil Line	RIGHT (WHEN ORDERED PRIOR TO SERIAL NUMBER 551586 ALSO ORDER(4) 24H1346 WASHERS)
11	AT162716	1	Hydraulic Hose	LEFT
11	AT162716	1	Hydraulic Hose	RIGHT
12	AT162714	1	Oil Line	LEFT
12	AT162714	1	Oil Line	RIGHT
13	AT178407	1	Hose	3/4" X 1422 mm (56") X 36.5252", RIGHT
13	AT162718	1	Hydraulic Hose	3/4" X 1204 mm (47-1/2") X 36.5252", RIGHT
13	AT178406	1	Hose	3/4" X 1117 mm (44") X 36.5252", LEFT
13	AT162717	1	Hydraulic Hose	3/4" X 2389 mm (94") X 36.5252", LEFT
14	19M8881	8	Screw	M10 X 30
15	T107446	4	Flange Fitting	-
16	T59014	2	O-Ring	-
17	T144746	1	Guard	-
18	19M7818	8	Screw	M12 X 80
19	T104355	4	Clamp	-
20	T144741	4	Strap	-
21	14M7401	4	Lock Nut	M12
22	14M7299	4	Flange Nut	M12
23	19M7753	4	Cap Screw	M12 X 70
24	T142129	4	Clamp	-
25	24H1346	4	Washer	17/32" X 1-3/4" X 0.120"
26	-	1	Part 34	AUXILIARY HYDRAULIC LINES ( AT178408 NO LONGER AVAILABLE)
26	-	1	Part 33	AUXILIARY HYDRAULIC LINES ( AT156891 NO LONGER AVAILABLE)
10A	N189220	6	Tie Band	-
10B	T153064	4	Clamp	-

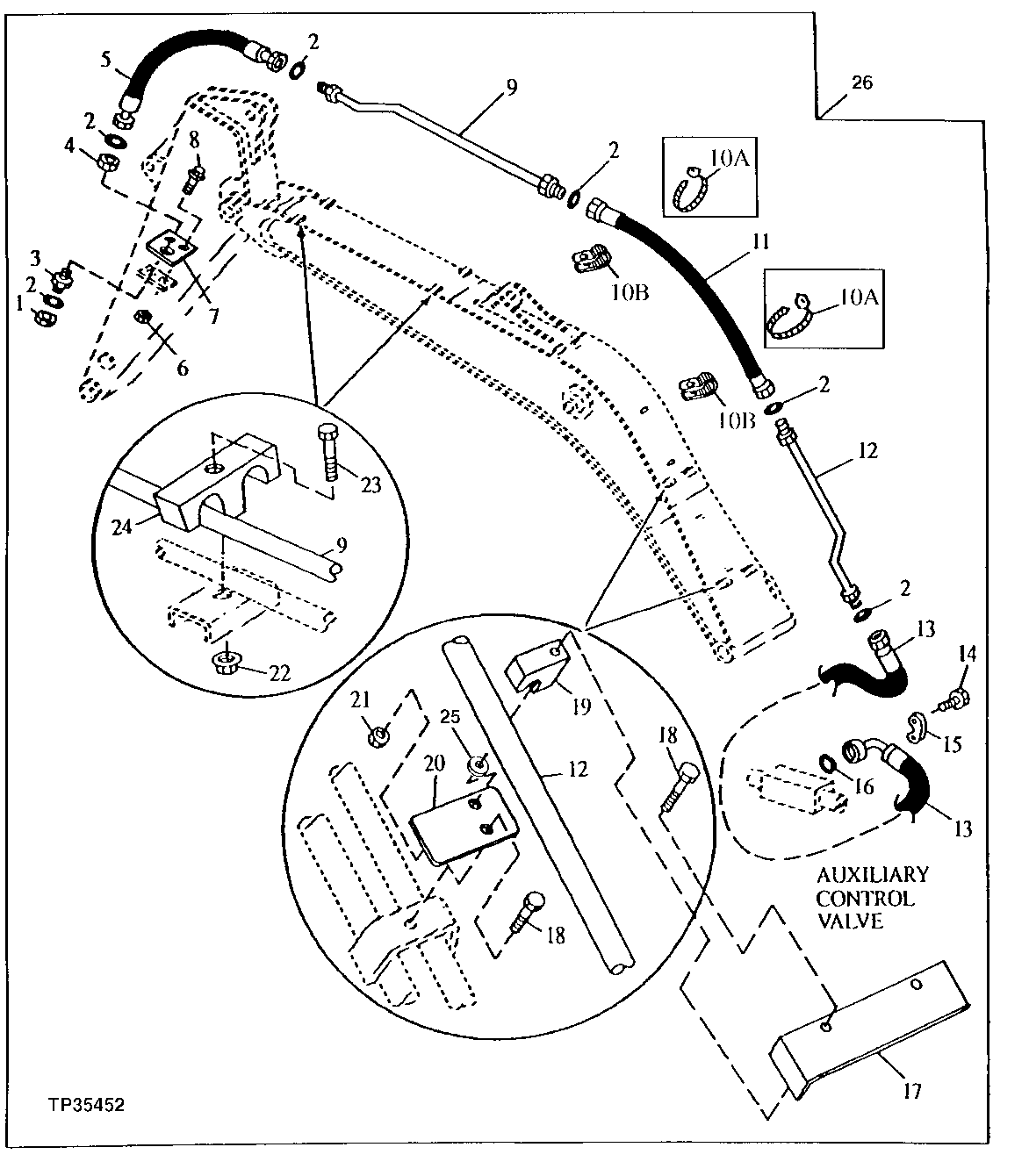

BOOM AND ARM AUXILIARY HYDRAULIC LINES (541136 - )
