BATTERIES, BATTERY CABLES AND BATTERY COVER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R99303	1	Shield	STARTER SOLENOID TERMINALS
2	14H631	1	Nut	0.190", SHIELD TO STARTER SOLENOID TERMINALS
3	24H1330	4	Washer	15/32" X 1-3/8" X 7/64"
4	H77698	2	Tie Band	ONE USED TO FASTEN SHIELD TO STARTER SOLENOID AND ONE USED TO FASTEN BOTH BATTERY CABLES TO LOWER RADIATOR HOSE
5	R46414	3	Clamp	-
6	T38377	3	Clamp	-
7	19M7784	3	Screw	M10 X 20, BATTERY CABLE CLAMPS TO LEFT REAR ENGINE MOUNT
9	AT47069	1	Ground Cable	-
10	19M7785	5	Screw	M10 X 25, ONE BRAIDED GROUND STRAP TO RIGHT REAR ENGINE MOUNT
11	AT147408	1	Battery Cable	-
12	AT147407	1	Battery Cable	-
13	19M7658	2	Cap Screw	M10 X 50, BATTERY CABLE CLAMPS TO MAINFRAME
14	28H1600	2	Spacer	0.546" X 0.840" X 1"
15	14M7166	4	Lock Nut	M8
16	T139629	1	Cover	-
17	14H785	2	Nut	5/16"
18	12H303	2	Lock Washer	5/16"
19	T107114	1	Cover	-
20	T31161	2	Stud	-
21	T107115	2	Cover	-
23	TY23020	2	Dry Charged Battery	(SUB FOR TY21709)
24	T138510	4	Hook Bolt	-
25	AT152102	2	Clamp	-
26	24M7298	4	Washer	8.400 X 25 X 2 mm, (SUB FOR 24M7207)
27	T19935	2	Clamp	(USE WITH BATTERY DISCONNECT LEAD)
28	14M7167	3	Lock Nut	M10
29	T19935	1	Clamp	-
30	N189220	1	Tie Band	(POSITIVE, SLEEVED BATTERY CABLE TO LOWER RADIATOR HOSE)
31	T134295	1	Sleeve	-
32	-	1	Part 33	( T45642 NO LONGER REQUIRED) (INSTALL BETWEEN BATTERIES)
33	R44302	1	Tie Band	(1-SECURE POSITIVE AND NEGATIVE CABLES TOGETHER BETWEEN LEFT FRAME RAIL AND STARTER)
8A	R44302	3	Tie Band	-
22A	AT165190	1	BATTERY CABLE	(SUB FOR AR45927)
22B	AT165190	1	BATTERY CABLE	-

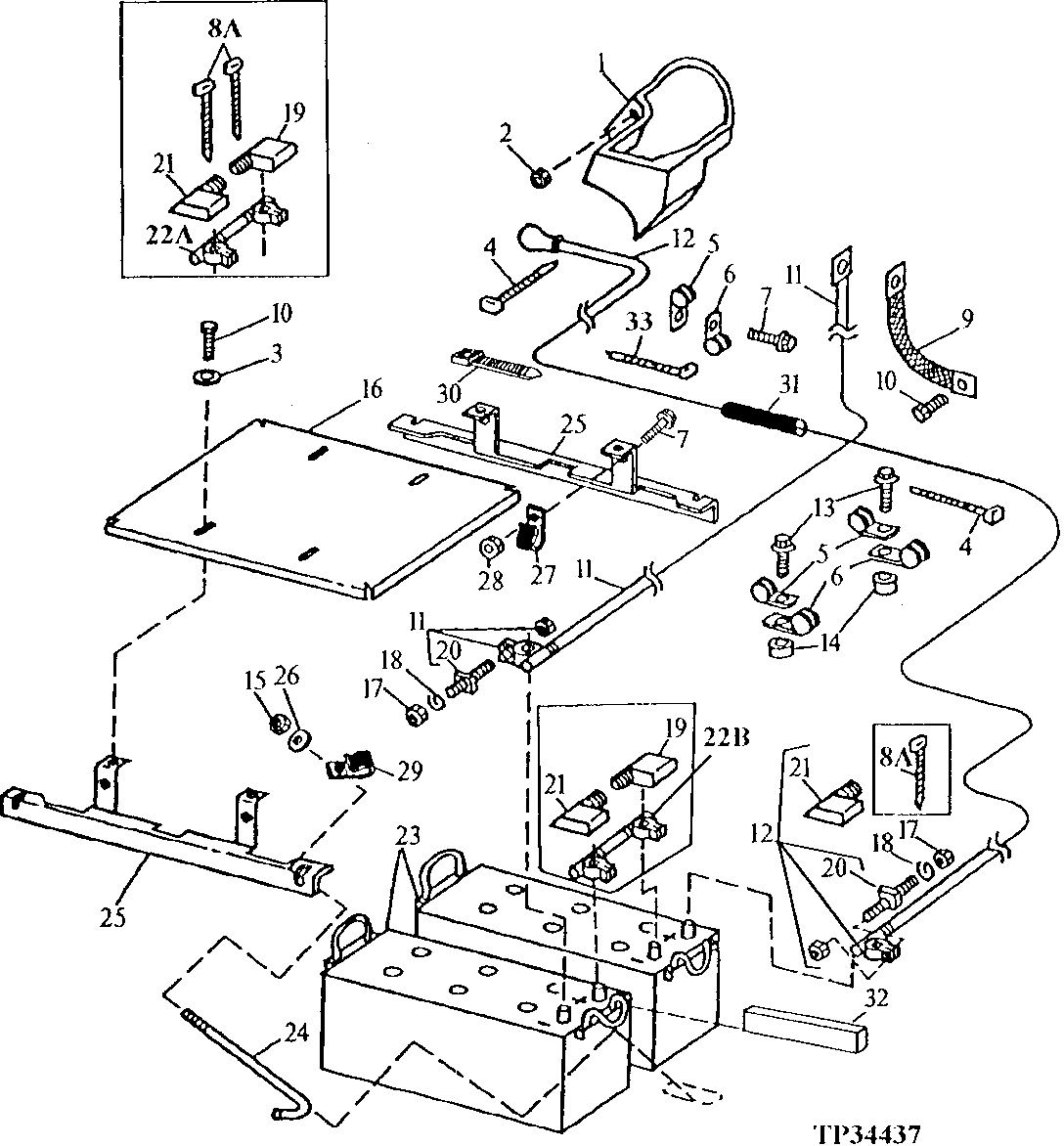

BATTERIES, BATTERY CABLES AND BATTERY COVER
