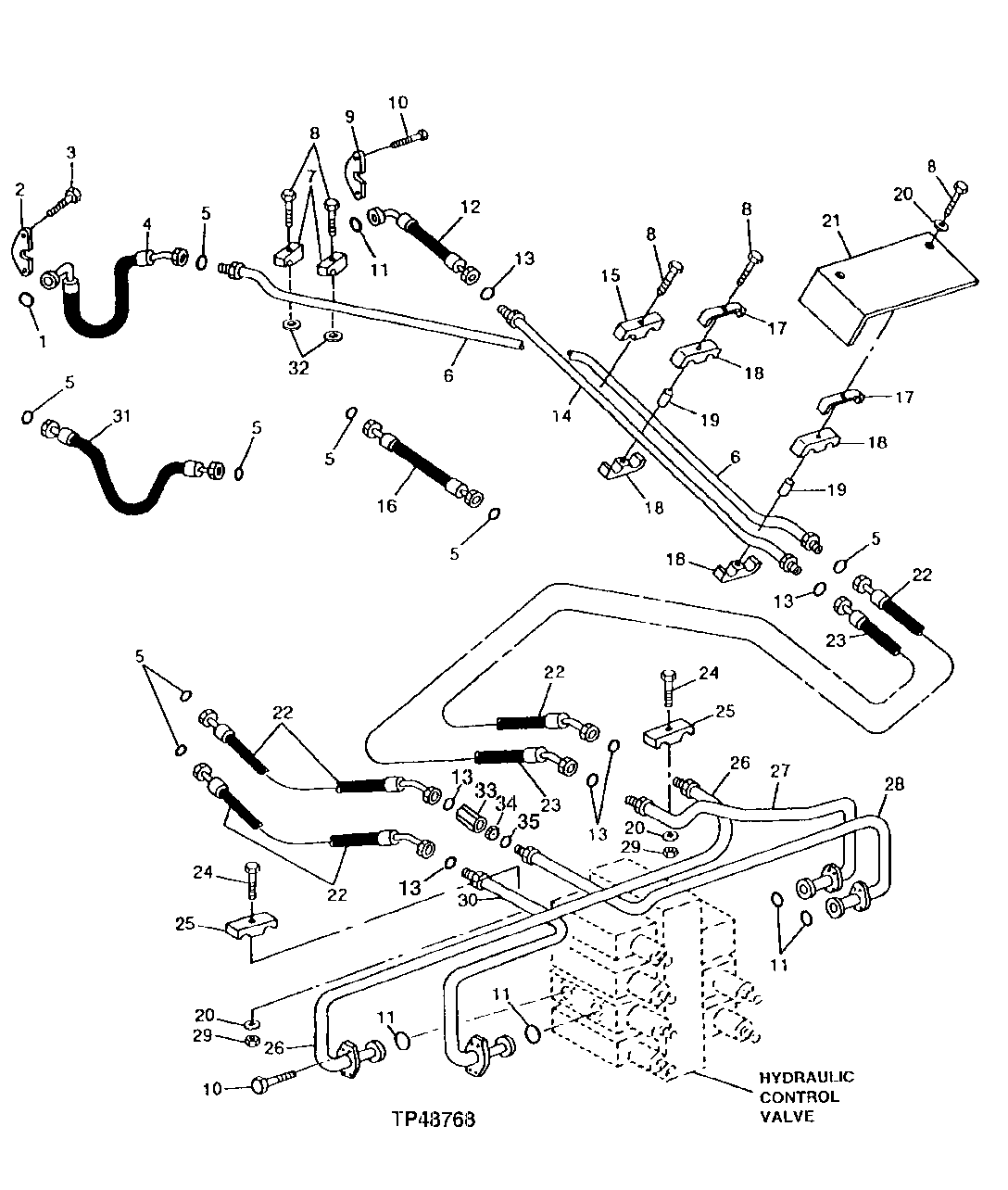

Arm and Bucket Cylinder Hydraulic Lines ( - 556935)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T59014	1	O-Ring	-
2	T107446	2	Flange Fitting	-
3	19M7662	4	Cap Screw	M10 X 30
4	AT147452	1	Hydraulic Hose	3/4" X 1659 mm (65-1/4") X 30.1752", LONG ARM (RIGHT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER HEAD PORT
4	AT152038	1	Hose	SHORT ARM (RIGHT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER HEAD PORT
5	T77858	8	O-Ring	-
6	AT169521	1	Oil Line	(SUB FOR AT139595)LEFT SIDE OF BOOM (WHEN ORDERED PRIOR TO SERIAL NUMBER 546277 ALSO ORDER (4) 24H1346 WASHERS)
6	AT169520	1	Oil Line	NLA; (SUB FOR AT139594)RIGHT SIDE OF BOOM (WHEN ORDERED PRIOR TO SERIAL NUMBER 546277 ALSO ORDER (4) 24H1346 WASHERS)
7	T139648	4	Clamp	-
8	19M7816	10	Screw	M12 X 65
9	T107068	2	Flange Fitting	-
10	19M7493	20	Cap Screw	M12 X 40
11	T78313	5	O-Ring	-
12	AT147201	1	Hydraulic Hose	1" X 774 mm (30-1/2") X 36.5252", ARM CYLINDER HEAD END (RIGHT SIDE OF BOOM)
13	T76938	6	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
14	AT163113	1	Oil Line	(SUB FOR AT139597)LEFT SIDE OF BOOM
14	AT163112	1	Oil Line	(SUB FOR AT139596)RIGHT SIDE OF BOOM
15	T142128	1	Clamp	LEFT SIDE OF BOOM
15	T142129	1	Clamp	RIGHT SIDE OF BOOM
16	AT147202	1	Hydraulic Hose	30.1752" X 800 mm (31-1/2") X 30.1752", ARM CYLINDER OF ROD END TUBE (LEFT SIDE OF BOOM)
17	T139640	4	Channel	-
18	T139643	4	Clamp	LEFT SIDE OF BOOM
18	T139642	4	Clamp	RIGHT SIDE OF BOOM
19	28H1676	4	Bushing	0.546" X 0.840" X 1-5/8"
20	24M7240	4	Washer	13 X 25 X 3 mm
21	T139476	1	Guard	-
22	AT152105	3	Hydraulic Hose	30.1752" X 1074 mm (42-1/4") X 36.5252"
23	AT147236	1	Hydraulic Hose	36.5252" X 1074 mm (42-1/4") X 36.5252"
24	19M7753	2	Cap Screw	M12 X 70
25	T52979	2	Clamp	-
26	AT147211	1	Oil Line	-
27	AT147213	1	Oil Line	-
27	AT167970	1	Oil Line	(USE WITH ARM REGENERATION)
28	AT147212	1	Oil Line	-
28	AT167969	1	Oil Line	(USE WITH ARM REGENERATION)
29	14M7401	2	Lock Nut	M12
30	AT147210	1	Oil Line	-
31	AT147203	1	Hydraulic Hose	30.1752" X 1600 mm (63") X 30.1752", LONG ARM (LEFT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER ROD PORT
31	AT152037	1	Hydraulic Hose	36.5252" X 1299 mm (51-1/4") X 36.5252", SHORT ARM (LEFT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER ROD PORT
32	24H1346	4	Washer	17/32" X 1-3/4" X 0.120"
33	T82004	1	ADAPTER FITTING	-
33	38H1164	1	Adapter Fitting	-
33	T160419	1	Adapter Fitting	-
33	38H1194	1	Adapter Fitting	-
33	T77858	1	O-Ring	-
34	T159022	1	Orifice	-
35	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")

Arm and Bucket Cylinder Hydraulic Lines ( - 556935)
