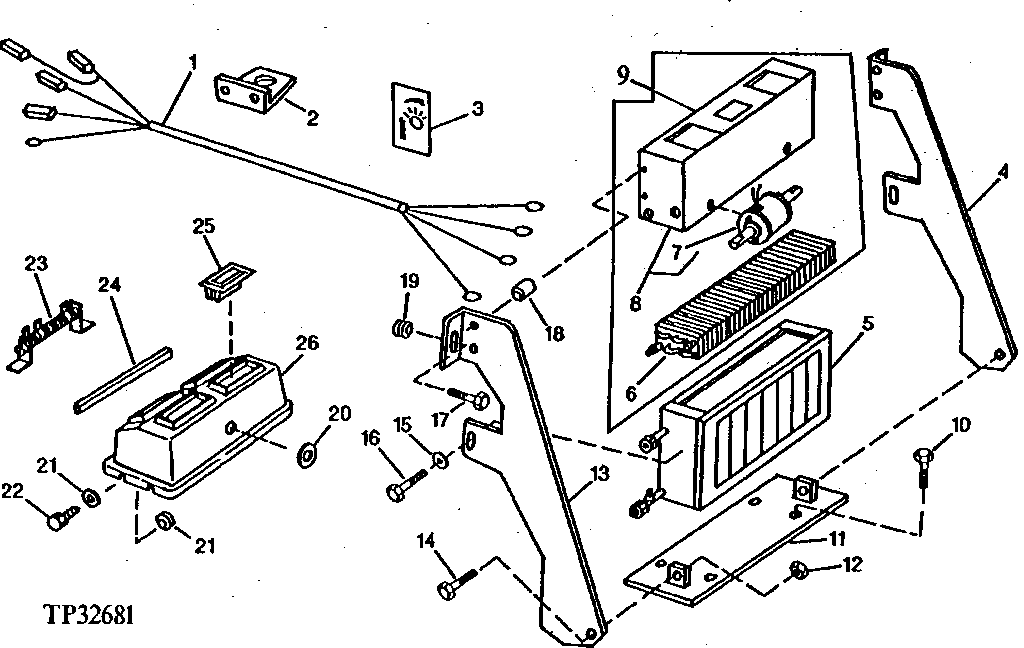

HEATER AND AIR CONDITIONING ASSEMBLY [01K17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT81208	1	WIRING HARNESS	-
2	T80641	1	ANGLE	COLD CONTROL TO CONSOLE
2	37H20	2	SCREW	-
3	T80642	1	LABEL	-
4	T80864	1	BRACKET	-
4	H89427	1	WASHER	SHIM BETWEEN HEATER, EVAPORATOR AND LEFT BRACKET
5	AT56094	1	EVAPORATOR	-
5	T59954	2	CLIP	EVAPORATOR TO HEATER
5	37H20	2	SCREW	CLAMP TO EVAPORATOR
6	AT56095	1	CORE	HEATER
6	T31177	1	HOSE	CORE INLET TO HEATER VALVE OUTLET
7	AT80369	1	ELECTRIC MOTOR	-
8	AT80368	1	BLOWER	-
9	-	1	Part 14	( AT80367 NO LONGER AVAILABLE)
10	19M7785	4	Screw	M10 X 25
11	-	1	Part 16	( AT84081 NO LONGER AVAILABLE)
12	T11234	2	Lock Nut	-
13	T80863	1	BRACKET	-
14	19H2676	2	Cap Screw	3/8" X 1"
15	24H1821	6	Washer	9/32" X 47/64" X 1/16"
16	37H84	6	Screw	-
17	19M7785	2	Screw	M10 X 25
18	R55339	4	Sleeve	-
19	24M7040	6	Washer	11 X 20 X 2 MM
20	B30667	1	Grommet	-
21	24H1646	12	Washer	17/64" X 3/4" X 0.060"
22	37H84	4	Screw	-
23	AT56762	1	RESISTOR	-
23	37H20	2	SCREW	RESISTOR TO 40,000 BTU HEATER
24	-	1	Part 30	(MAKE FROM T70636 BULK MATERIAL, CUT TO LENGTH)
25	AT130121	4	LOUVER	(SUB FOR AT81207)
25	M46081	16	Nut	LOUVERS TO COVER
26	AT132891	1	COVER	(SUB FOR AT81206 AND AT130120)
