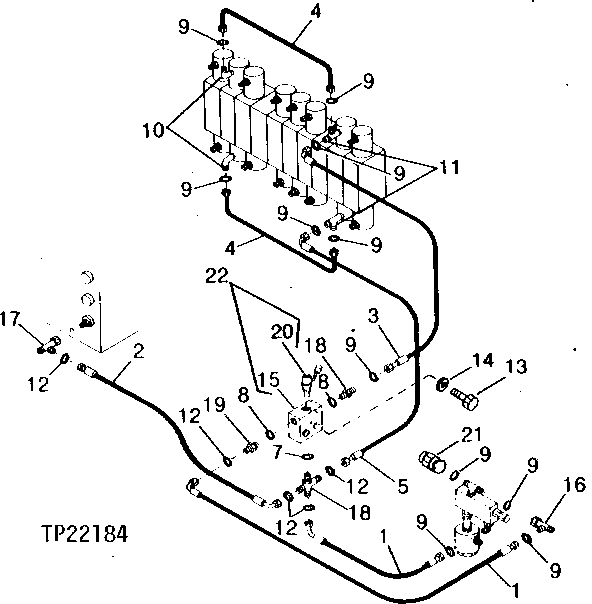

AUXILIARY REMOTE CONTROL VALVE HYDRAULIC OIL LINES [02E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT79336	2	HYDRAULIC HOSE - FABRICATE	11/16" X 585 MM (23") X 13/16", (SUB FOR AT72076)
2	AT72090	1	HYDRAULIC HOSE	13/16" X 1 283 MM (50-1/2") X 13/16"
3	AT84776	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 075 MM (42-1/4") X 11/16", (SUB FOR AT78188)
4	AT81562	2	OIL LINE	-
5	AT81563	1	HYDRAULIC HOSE - FABRICATE	11/16" X 838 MM (33") X 11/16"
6	H77698	1	Tie Band	NOT ILLUSTRATED
7	R26375	1	O-Ring	-
8	R26448	2	O-Ring	(SUB FOR T70177)
9	T77613	11	O-Ring	-
10	38H1004	2	Elbow Fitting	-
11	38H1023	2	Tee Fitting	-
12	T77857	5	O-Ring	-
13	19M7801	2	Screw	M8 X 60
14	24M7055	2	Washer	8.400 X 16 X 1.600 MM
15	-	1	Part 15	(SUB FOR T78580) (ALSO ORDER (2) 24M7055) (SUB AT116486) ( T107202 NO LONGER AVAILABLE)
16	38H1030	1	Tee Fitting	-
17	38H1031	1	Tee Fitting	-
18	38H1160	1	Adapter Fitting	-
19	38H1173	1	Adapter Fitting	-
20	AT115457	1	SOLENOID VALVE	(SUB FOR RE22399, THIS APPLICATION) (SUB FOR AT66691)
21	38H1415	1	Fitting	-
22	AT116486	1	ELEC.PROPORTIONAL VALVE	(SUB FOR AT115437)
22	AT115457	1	SOLENOID VALVE	-

AUXILIARY REMOTE CONTROL VALVE HYDRAULIC OIL LINES [02E17]

Нет текстового описания
