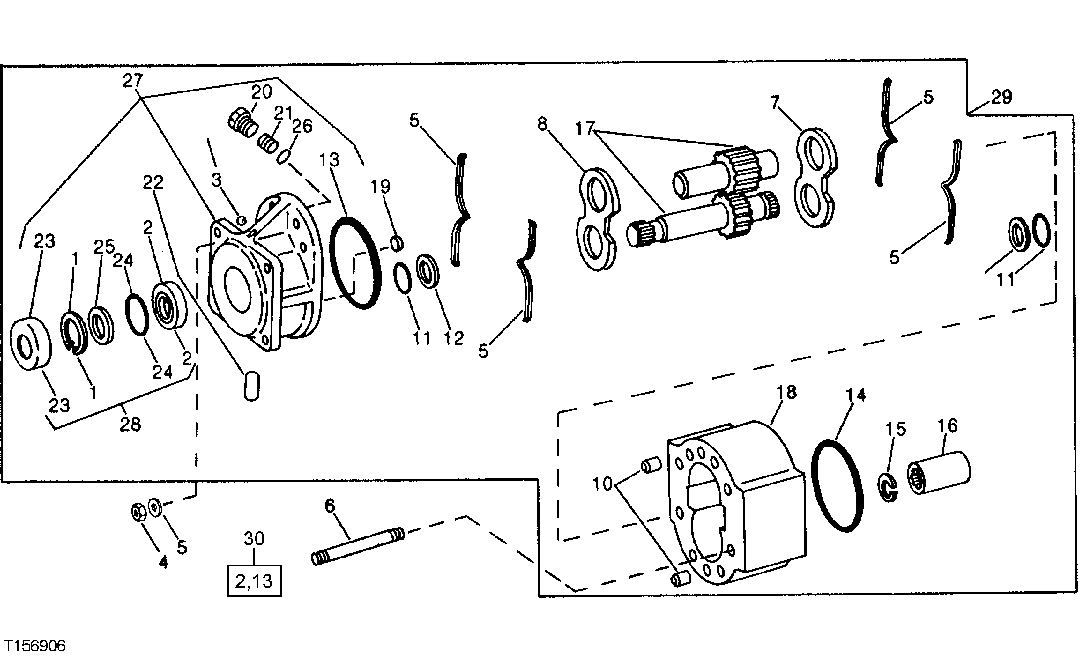

TRACK DRIVE MOTOR (FRONT SECTION) (SERIAL NO. 513393- ) [01B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	-
2	T42737	1	SEAL	(USED IN AT77816 FLANGE KIT)
2	T42737	2	SEAL	(USED IN AT72022 SEAL KIT)
3	400R	3	Ball	-
4	U44860	8	NUT	-
5	U44865	8	WASHER	-
6	T42745	8	STUD	-
7	T103312	1	PLATE	BOTTOM
8	T103311	2	PLATE	TOP
9	T74342	2	PLATE	-
10	U44854	4	DOWEL PIN	-
11	T61327	4	O-Ring	-
12	T61326	4	BACK-UP RING	BACKUP
13	T61267	1	O-RING	(USE WHEN O-RING GROOVE IS LESS THAN 1.52 MM (.06") DEEP)
13	T60657	1	O-Ring	(USE WHEN O-RING GROOVE IS MORE THAN 1.52 MM (.06") DEEP)
14	T42742	1	O-RING	-
15	T23694	1	Snap Ring	-
16	T42740	1	SPLINED COUPLING	SPLINE
17	-	1	Part 19	(SUB AT105354)
18	-	1	Part 20	(SUB AT105354)
19	T48992	2	PIN	-
20	T78422	2	ORIFICE	-
21	T78424	2	COMPRESSION SPRING	-
22	T74352	1	PRESSURE RELIEF VALVE	1/4"
22	T78423	1	PLUG	3/16"
23	T74339	1	SEAL	(USED IN AT77816 FLANGE KIT) (SUB FOR U44858, THIS APPLICATION)
24	M44162	1	O-Ring	(SUB FOR N157209)
25	T74340	1	WASHER	-
26	D2361R	2	Ball	-
27	AT77816	1	FLANGE	-
28	AT72022	1	SEAL KIT	(ALSO INCLUDES T61267 AND T60657) (KIT DOES NOT INCLUDE T74340) (ALSO ORDER T74340)
29	AT105354	1	KIT	-
30	AT41670	1	SEAL KIT	-

TRACK DRIVE MOTOR (FRONT SECTION) (SERIAL NO. 513393- ) [01B14]
