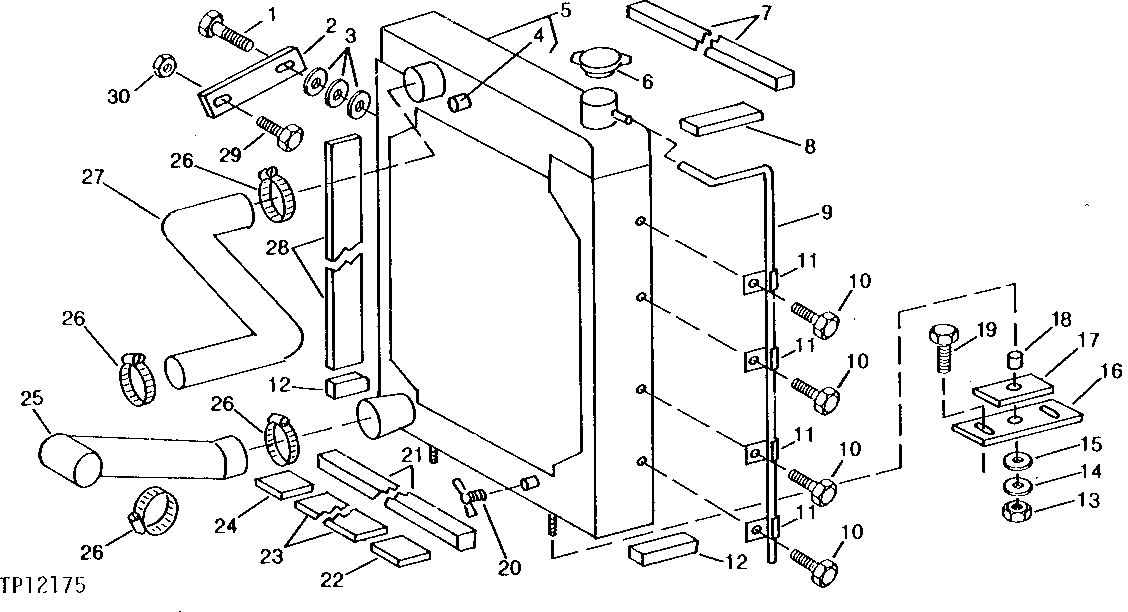

RADIATOR, RADIATOR HOSES AND MOUNTING [01G21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7784	1	Screw	M10 X 20
2	H80636	1	STRAP	(SUB FOR U42350, THIS APPLICATION)
3	-	3	Part 3	(NO LONGER REQUIRED)
4	AT47622	1	SIGHT PLUG	-
5	AR27868	1	Filler Cap	(SUB FOR AT79061)
5	AT115124	1	RADIATOR	(ALSO ORDER (2) T108072) (SUB FOR AT114763)
5	AT115124	1	RADIATOR	-
6	AN110020	1	CAP	-
7	-	1	Part 9	(MAKE FROM T69622 BULK MATERIAL, CUT TO LENGTH)
8	-	1	Part 10	(MAKE FROM T69622 BULK MATERIAL, CUT TO LENGTH)
9	-	1	Part 11	(CUT TO 55.12") (MAKE FROM TY22324) (SUB FOR T75679)
10	19M7784	4	Screw	M10 X 20
11	AH89557	3	Clip	-
12	-	2	Part 14	(MAKE FROM T69622 BULK MATERIAL, CUT TO LENGTH)
13	14M7299	2	Flange Nut	M12
14	24H1204	2	WASHER	9/16" X 1-15/32" X 0.075"
15	U45315	2	WASHER	-
16	T79226	2	STRAP	-
17	U45318	2	STRAP	-
18	M43318	2	Bushing	-
19	19M7786	4	Screw	M10 X 30
19	14M7296	4	Flange Nut	M10, (NOT ILLUSTRATED)
20	AT13740	1	Drain Valve	-
21	-	1	Part 24	(MAKE FROM T69622 BULK MATERIAL, CUT TO LENGTH)
22	-	1	Part 25	(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)
23	-	1	Part 26	(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)
24	-	1	Part 27	(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)
25	T114536	1	RADIATOR HOSE	-
26	AR21999	4	Hose Clamp	-
27	T79228	1	HOSE	-
28	-	1	Part 31	(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)
29	19M8162	1	Screw	M10 X 40
30	14M7296	1	Flange Nut	M10
