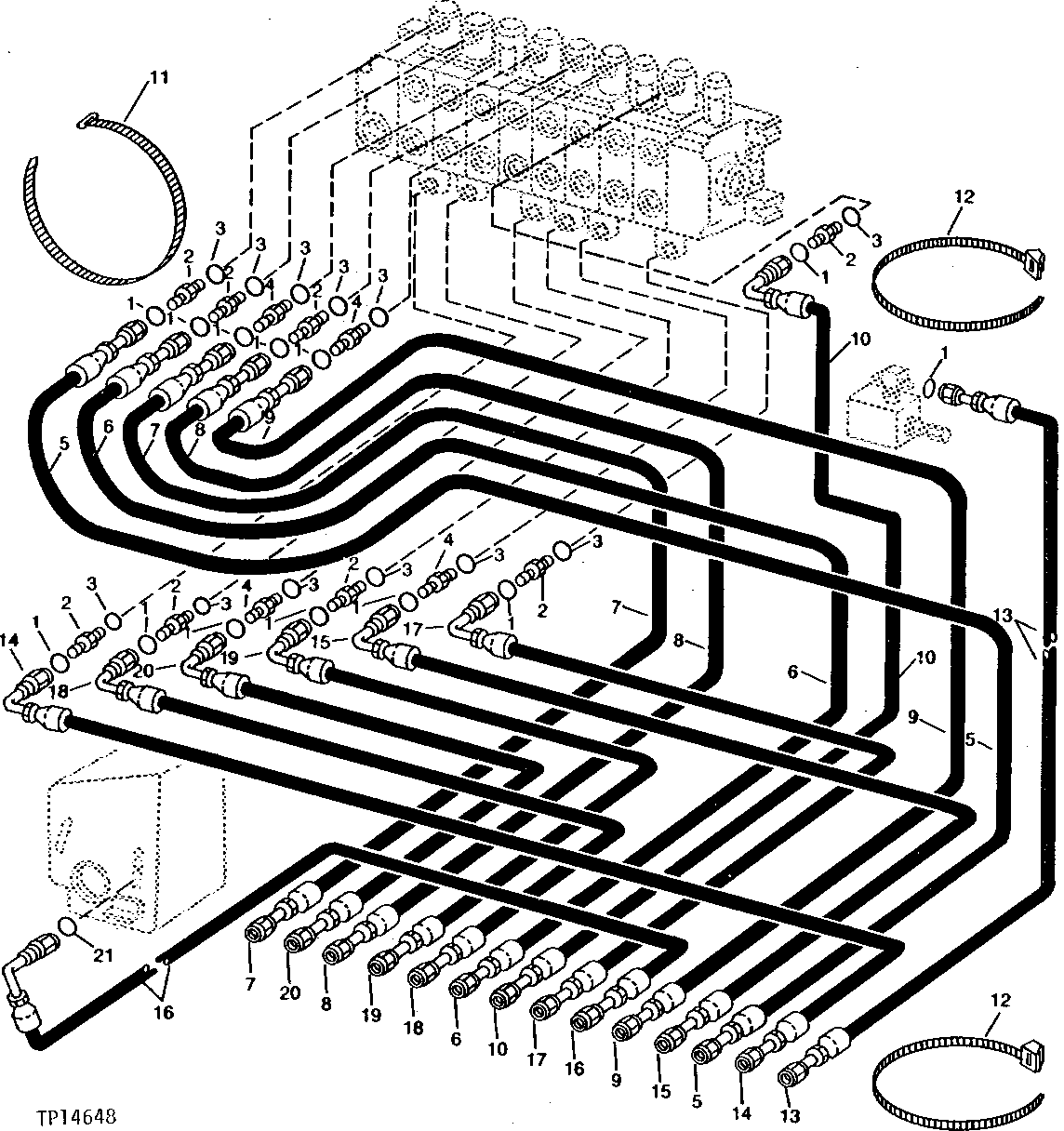

PILOT CONTROL VALVE HOSES AND ADAPTERS (CONTROL VALVE TO CAB) [02G02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77613	13	O-Ring	-
2	38H1160	10	Adapter Fitting	-
2	38H1160	8	Adapter Fitting	-
3	T70177	12	O-Ring	-
4	T103528	2	ADAPTER FITTING	(BOOM SECTION)
4	T103528	4	ADAPTER FITTING	-
5	AT150240	1	HYDRAULIC HOSE - FABRICATE	(SWING, RIGHT) (SUB FOR AT79571 AND AT101771)
6	AT79572	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 956 MM (77") X 11/16", (R.H. TRACK, REVERSE)
7	AT79572	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 956 MM (77") X 11/16", (ARM CYLINDER RETRACT)
8	AT79573	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 702 MM (67") X 11/16", (BUCKET CYLINDER RETRACT)
9	AT79573	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 702 MM (67") X 11/16", (BOOM CYLINDER RETRACT)
10	AT79775	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 746 MM (68-3/4") X 11/16", (L.H. TRACK, REVERSE)
11	N189220	1	Tie Band	(SUB FOR AA21510)
12	N189220	2	Tie Band	(SUB FOR (2) AA21510)
13	AT79569	1	HYDRAULIC HOSE - FABRICATE	11/16" X 838 MM (33") X 11/16", (PILOT PRESSURE INLET)
14	AT79576	1	Hydraulic Hose	11/16" X 1 956 MM (77") X 11/16", (SWING, LEFT)
15	AT79763	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 440 MM (56-3/4") X 11/16", (BOOM CYLINDER, EXTEND)
16	AT79332	1	HYDRAULIC HOSE - FABRICATE	11/16" X 2 190 MM (86-1/4") X 13/16", (PILOT DRAIN)
17	AT79763	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 440 MM (56-3/4") X 11/16", (L.H. TRACK, FORWARD)
18	AT79775	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 746 MM (68-3/4") X 11/16", (R.H. TRACK, FORWARD)
19	AT79763	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 440 MM (56-3/4") X 11/16", (BUCKET CYLINDER, EXTEND)
20	AT79775	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 746 MM (68-3/4") X 11/16", (ARM CYLINDER, EXTEND)
21	T77857	1	O-Ring	-

PILOT CONTROL VALVE HOSES AND ADAPTERS (CONTROL VALVE TO CAB) [02G02]
