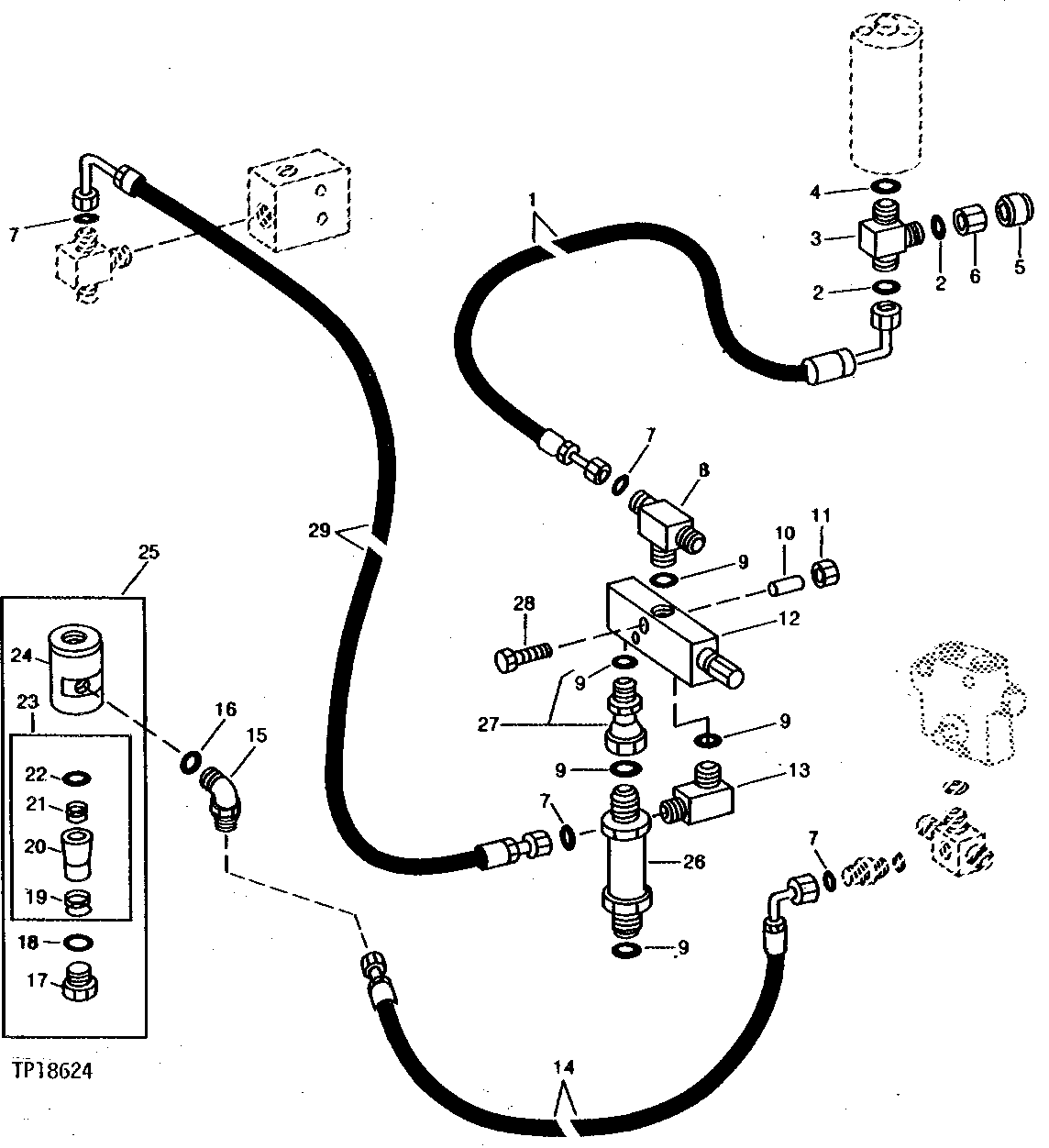

PILOT CONTROL HOSES, PRESSURE REDUCING VALVE AND CHECK VALVE (SERIAL NO. -512042) [02G04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT79568	1	HYDRAULIC HOSE - FABRICATE	11/16" X 813 MM (32") X 13/16"
2	T77857	2	O-Ring	-
3	38H1024	1	Tee Fitting	-
4	R47150	1	O-Ring	-
5	38H1416	1	Fitting	-
6	38H1354	1	Tube Nut	(SUB 38H1416)
7	T77613	5	O-Ring	-
8	38H1016	1	Tee Fitting	-
9	T70177	5	O-Ring	-
10	28H1514	2	SPACER	0.364" X 0.540" X 9/16"
11	14H786	2	Nut	1/4"
12	AT68904	1	HYDRAULIC PRESSURE VALVE	(PRESSURE REDUCING)
13	38H1004	1	Elbow Fitting	-
14	AT79567	1	HYDRAULIC HOSE - FABRICATE	11/16" X 290 MM (11-1/2") X 11/16"
15	AT35121	1	Elbow Fitting	-
16	R26448	1	O-Ring	-
17	T114718	1	FITTING PLUG	(SUB FOR T107038)
18	R29936	1	O-Ring	-
19	-	1	Part 19	(SUB AT105419)
20	-	1	Part 20	(SUB AT105419)
21	-	1	Part 21	(SUB AT105419)
22	-	1	Part 22	(SUB AT105419)
23	AT105419	1	KIT	-
24	-	1	Part 24	(SUB AT115276)
25	AT115276	1	HYDRAULIC FILTER	(SUB FOR AT71081 AND AT105480)
26	AT81867	1	Check Valve	(ALSO ORDER 38H1067)
27	38H1067	1	Adapter Fitting	(ALSO ORDER AT81867)
28	19H2333	2	Cap Screw	1/4" X 2-1/4"
29	AT81931	1	Hydraulic Hose	11/16" X 515 MM (20-1/4") X 11/16", (SUB FOR AT79570 AND AT83751)

PILOT CONTROL HOSES, PRESSURE REDUCING VALVE AND CHECK VALVE (SERIAL NO. -512042) [02G04]
